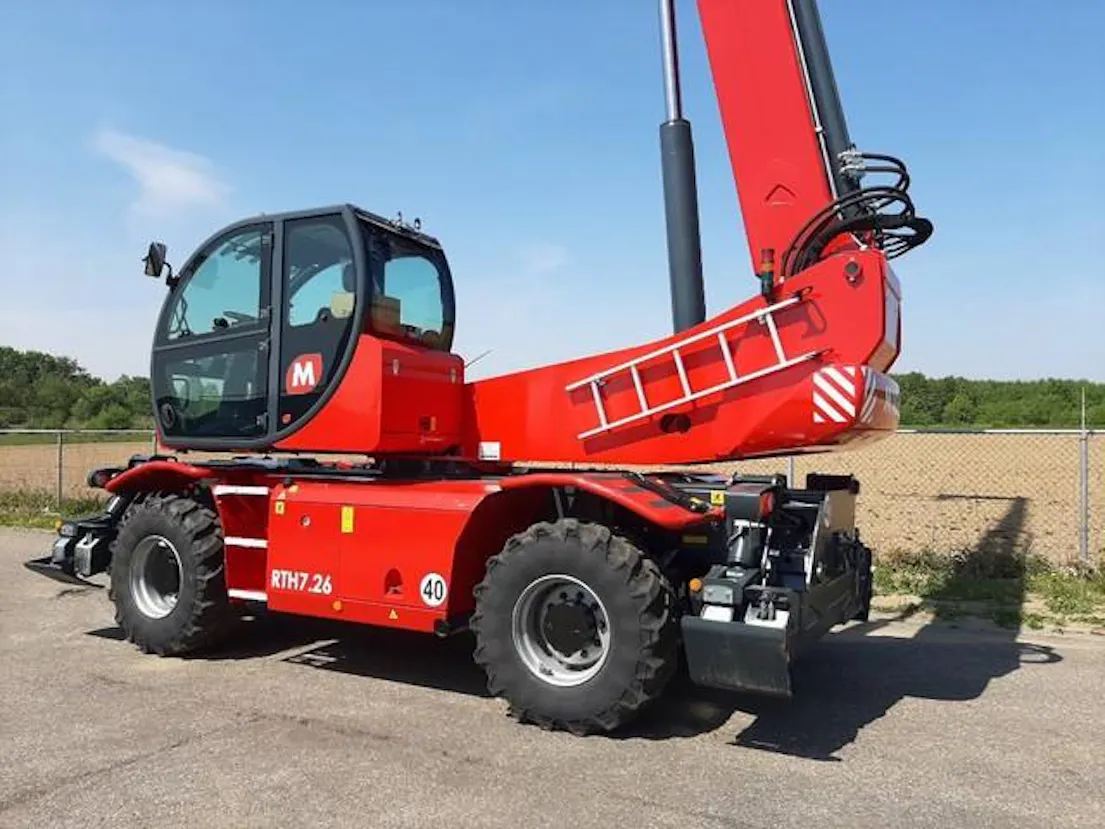

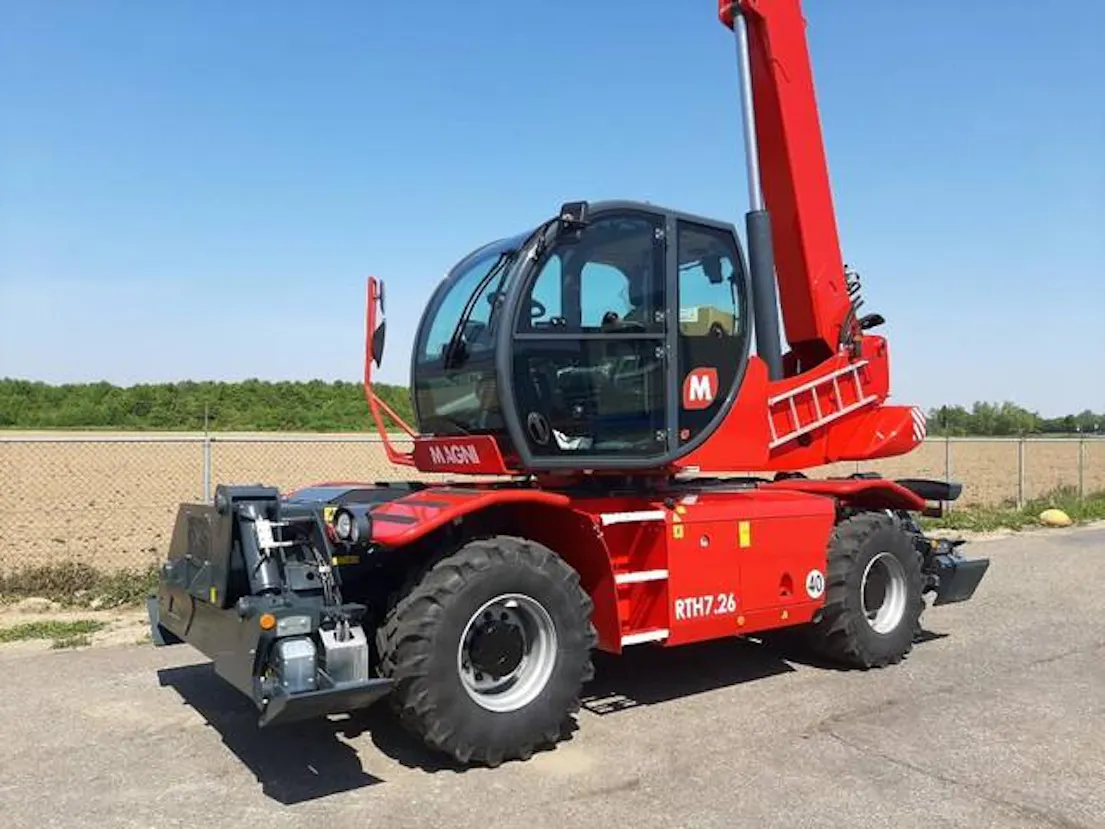

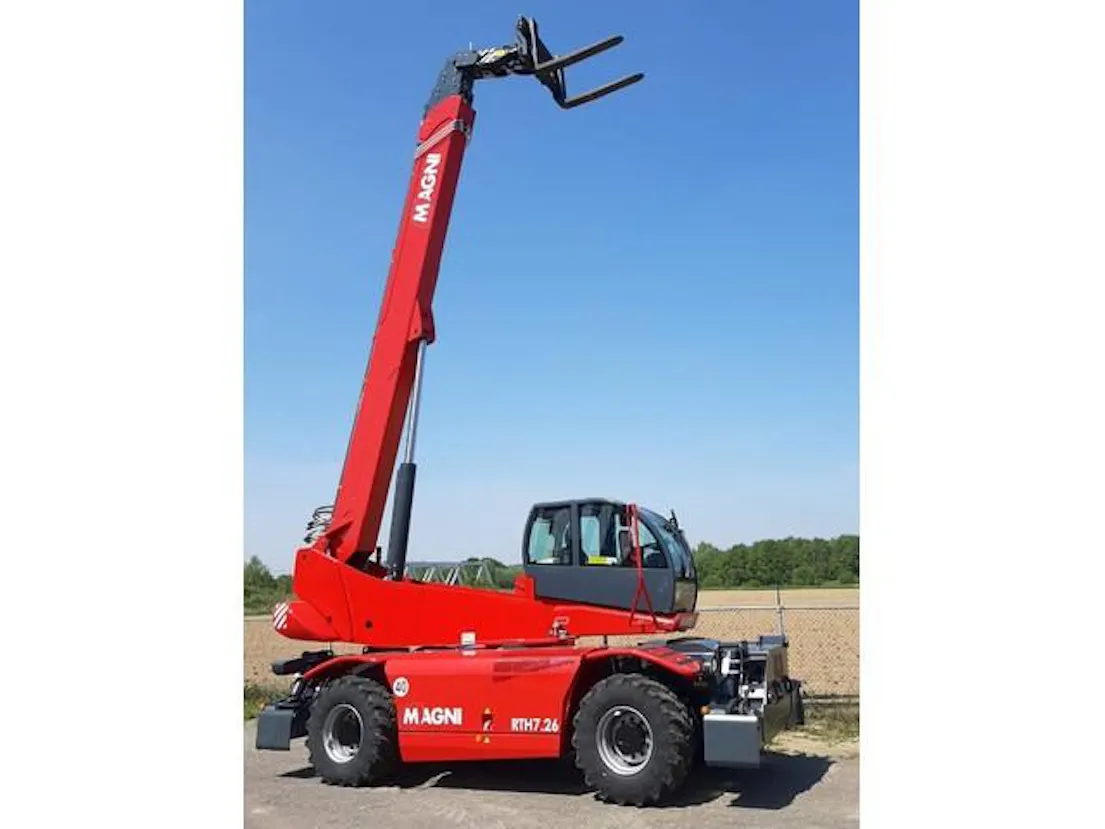

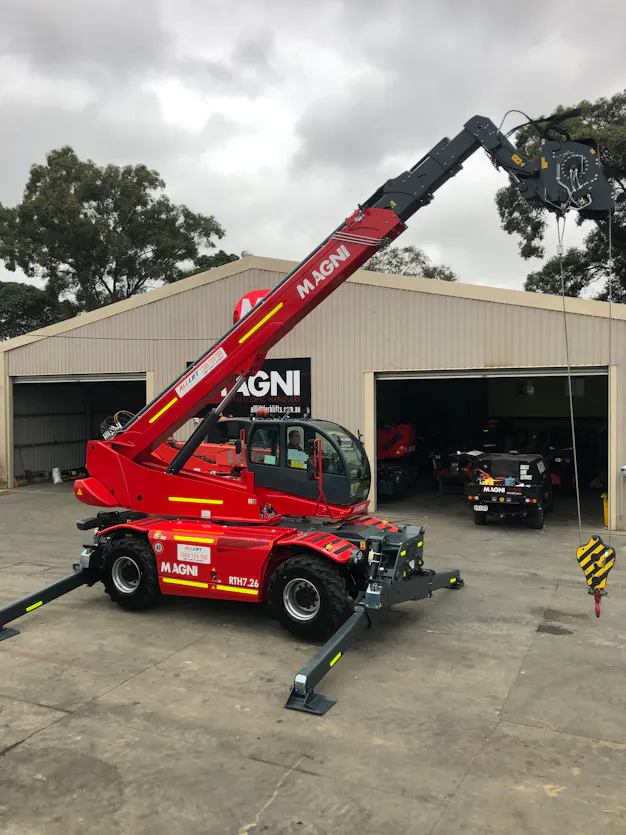

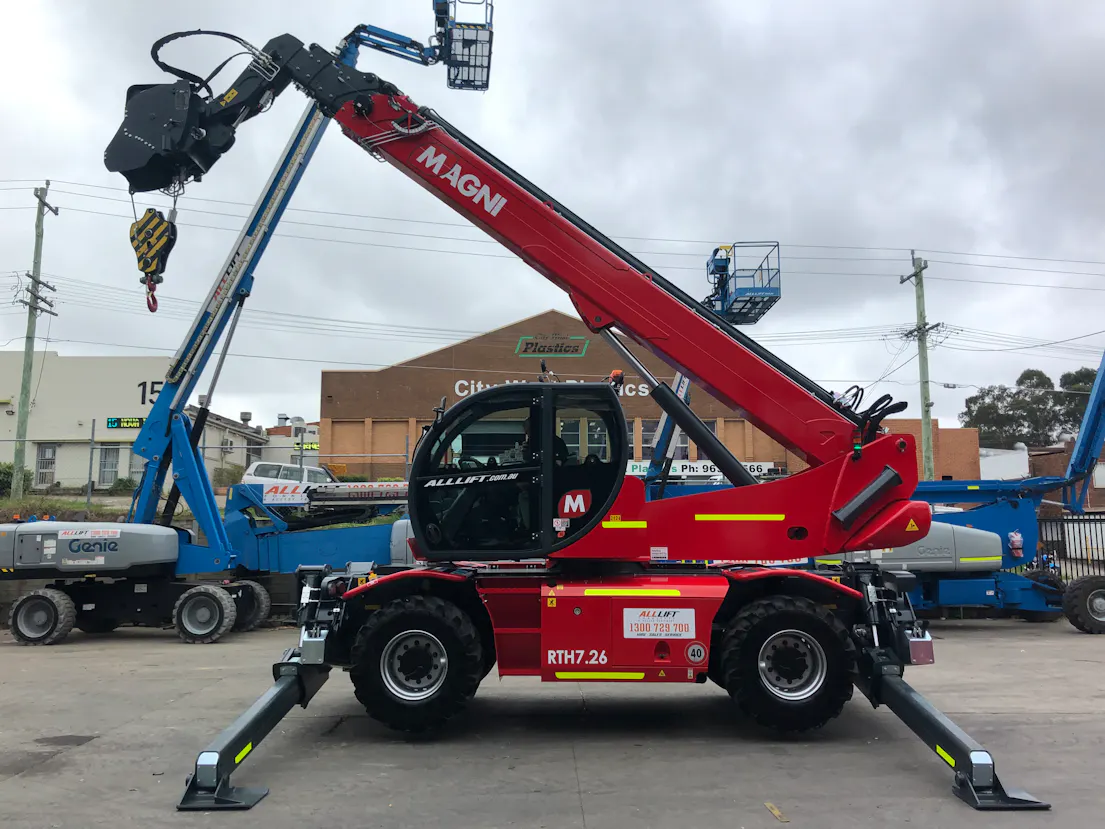

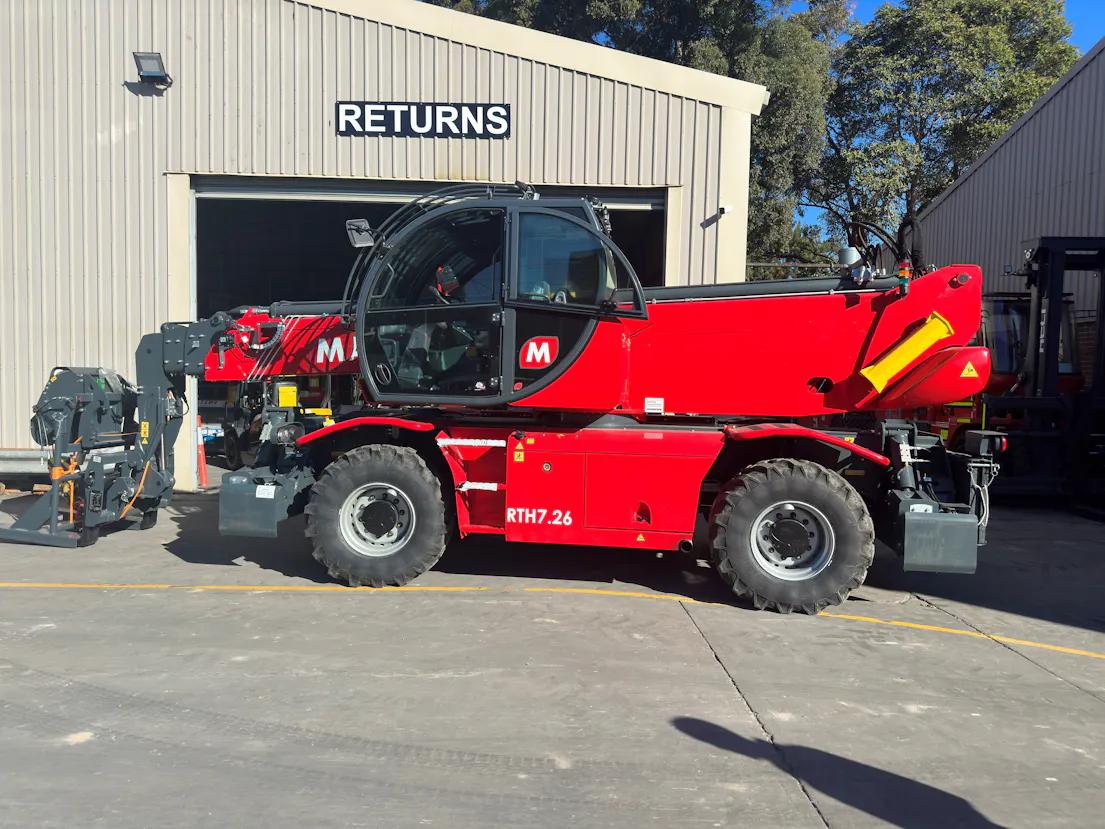

Magni RTH7.26 Rotational Telehandler

7 tonne / 26 metre

The RTH 7.26 is a high-performance rotating telescopic handler with real grit. It can lift loads up to a height of 26 m, and comes with scissor stabilisers to ensure superior safety and stability.

These stabilisers really shine when the machine is required to move in limited spaces, or even on only partially stabilised instances, where it is programmed with the best possible load chart on each side. At full extension it offers maximum machine performance over 360° working over a very wide stabilisation base. Compatible with a range of accessories and the RFID system which provides automatic recognition of the attachment and creates relative load charts, this telehandler meets a wide range of job site requirements.

Technical Features

  • Stabilization System: Scissor Design
  • Maximum Lifting Capacity: 7,000 kg
  • Capacity at Full Elevation: 3,200 kg
  • Maximum Lifting Height: 25.70 m
  • Horizontal Reach: 22 m
  • Engine Type: Volvo TAD 582 VE - Stage V
  • Rated Engine Power: 160 kW (218 hp) at 2,300 rpm
  • Transmission Gears: 2 forward, 2 reverse
  • Hydraulic System Pressure: 350 bar (Load Sensing)
  • Overall Length: 7.83 m
  • Overall Width: 2.54 m
  • Ground Clearance: 320 mm
  • Unladen Weight: 20,700 kg
  • Travel Speed: 40 km/h
  • Continuous Rotation: 360°
  • Standard Climate Control: Yes
  • Automatic Accessory Recognition: Yes
  • Reversible Fan Drive: Yes
