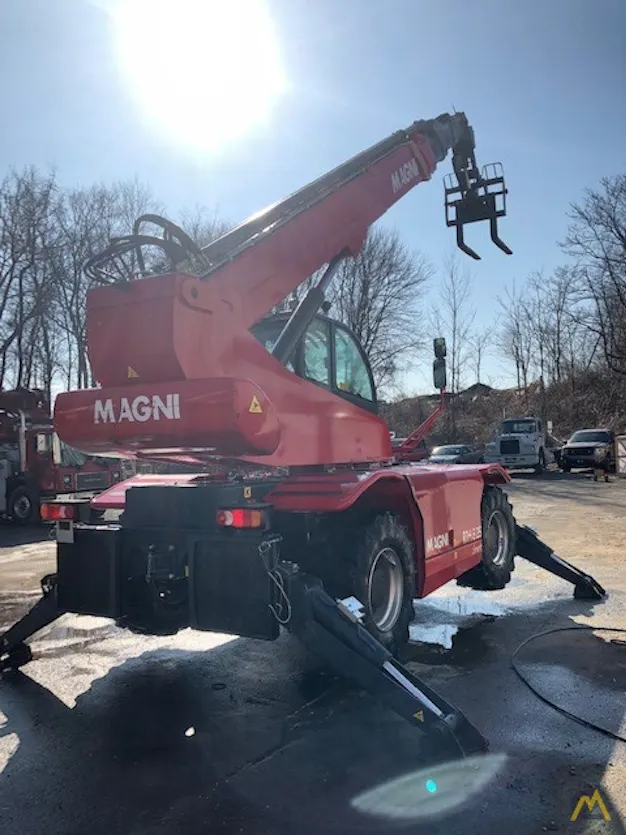

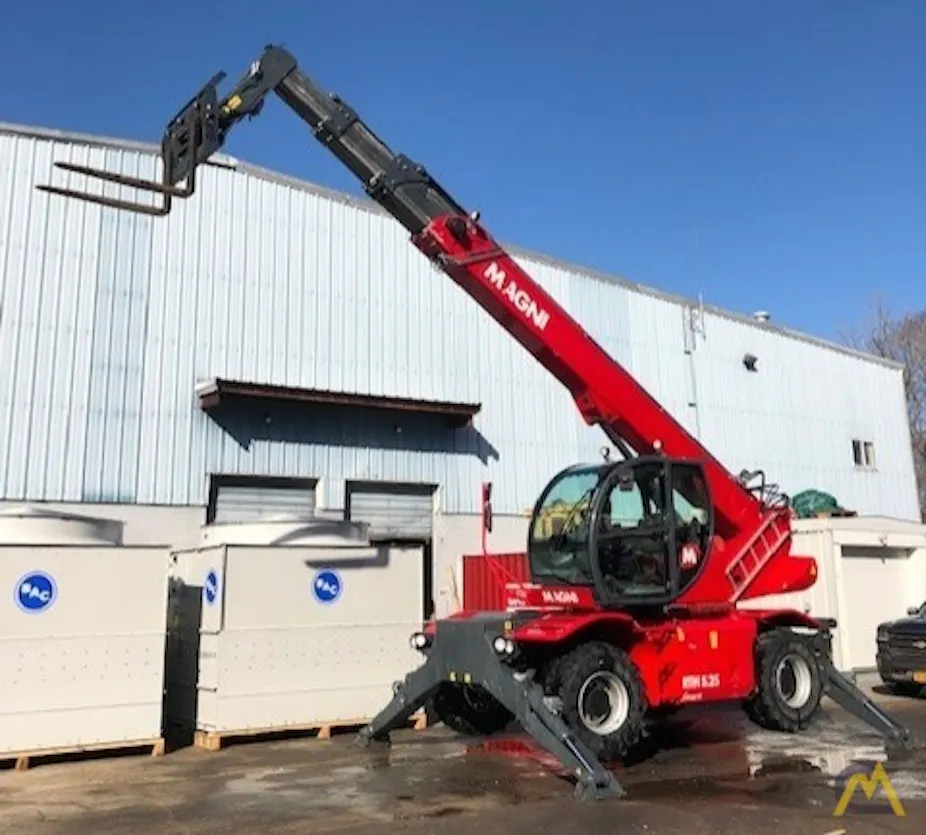

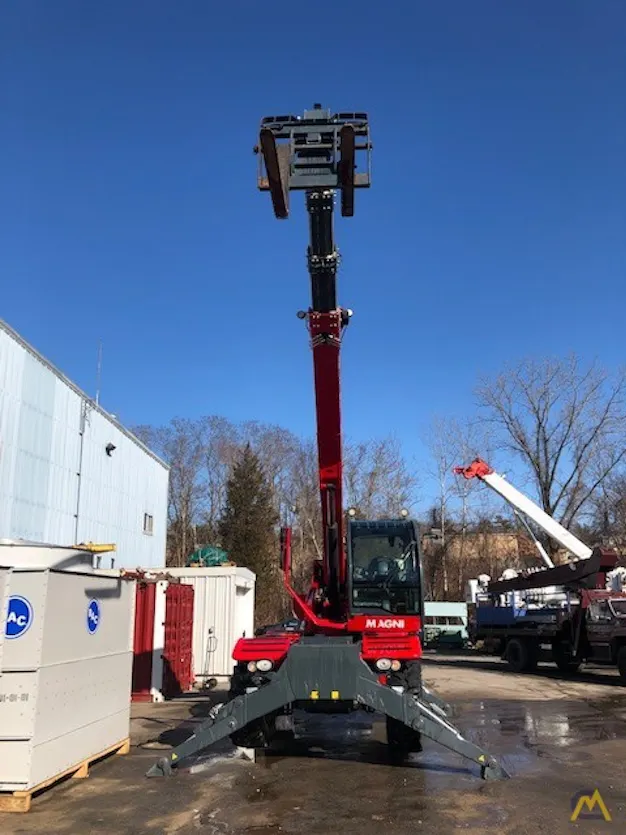

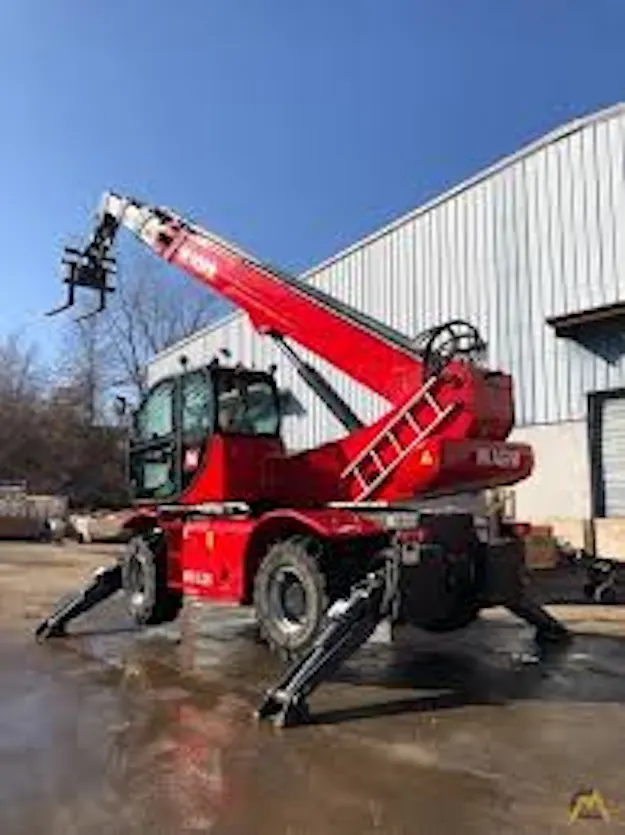

Magni RTH5.25 Rotational Telehandler

5 tonne / 25 metre

The RTH5.25 is a versatile yet compact rotating telescopic handler renowned for its high-performance capabilities. With the ability to elevate loads to an impressive height of 25 meters, it is equipped with pivoting stabilizers to ensure steadfast stability and safety during all manoeuvres. Its compatibility with a vast range of accessories is further enhanced by the RFID system, which offers automatic recognition and the creation of corresponding load charts. This telescopic handler is exceptionally adaptable, making it suitable for a wide variety of applications within the construction and industrial sectors.


Technical Specifications:

  • Stabilizer Type: Pivoting
  • Maximum Lifting Capacity: 4,999 kg
  • Capacity at Full Height: 2,000 kg
  • Maximum Lifting Height: 24.60 m
  • Reach: 19 m
  • Engine: Deutz TCD 3.6 L4 - Stage V
  • Rated Power Output: 100 kW (136 hp) at 2,200 rpm
  • Number of Gears: 2 forward, 2 reverse
  • Hydraulic System Pressure: 350 bar (Load Sensing)
  • Length: 7.62 m
  • Width: 2.54 m
  • Ground Clearance: 320 mm
  • Unladen Weight: 16,600 kg
  • Travel Speed: 40 km/h
  • Rotation Capability: 360° (continuous)
  • Standard Climate Control: Yes
  • Automatic Accessory Recognition: Yes
  • Reversible Fan Drive: Yes
