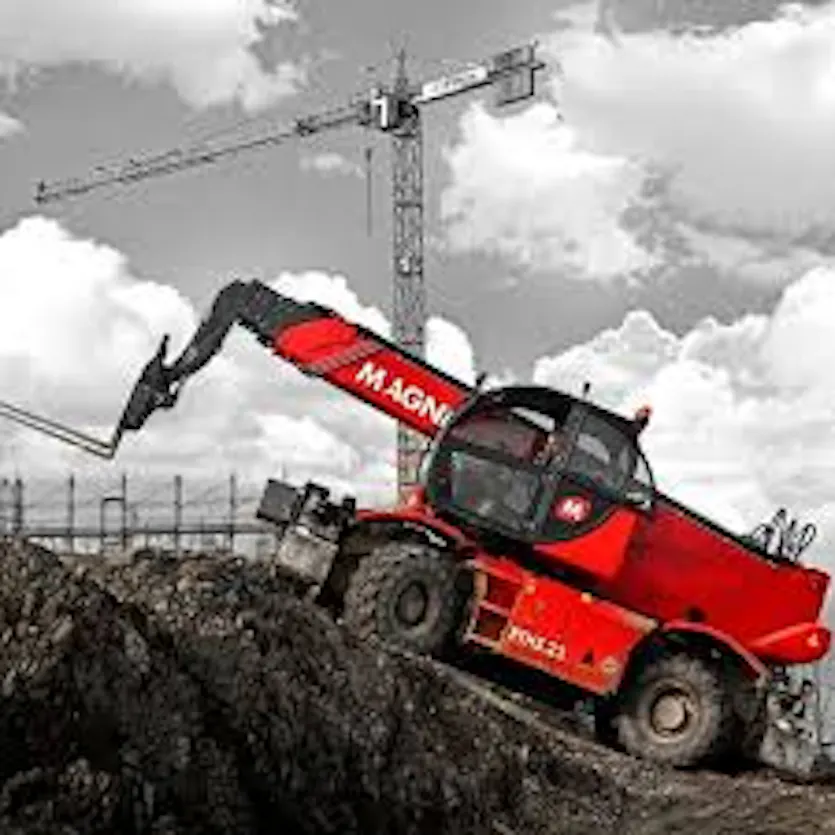

Magni RTH5.23 Rotational Telehandler

5 tonne / 23 metre

Product Description:

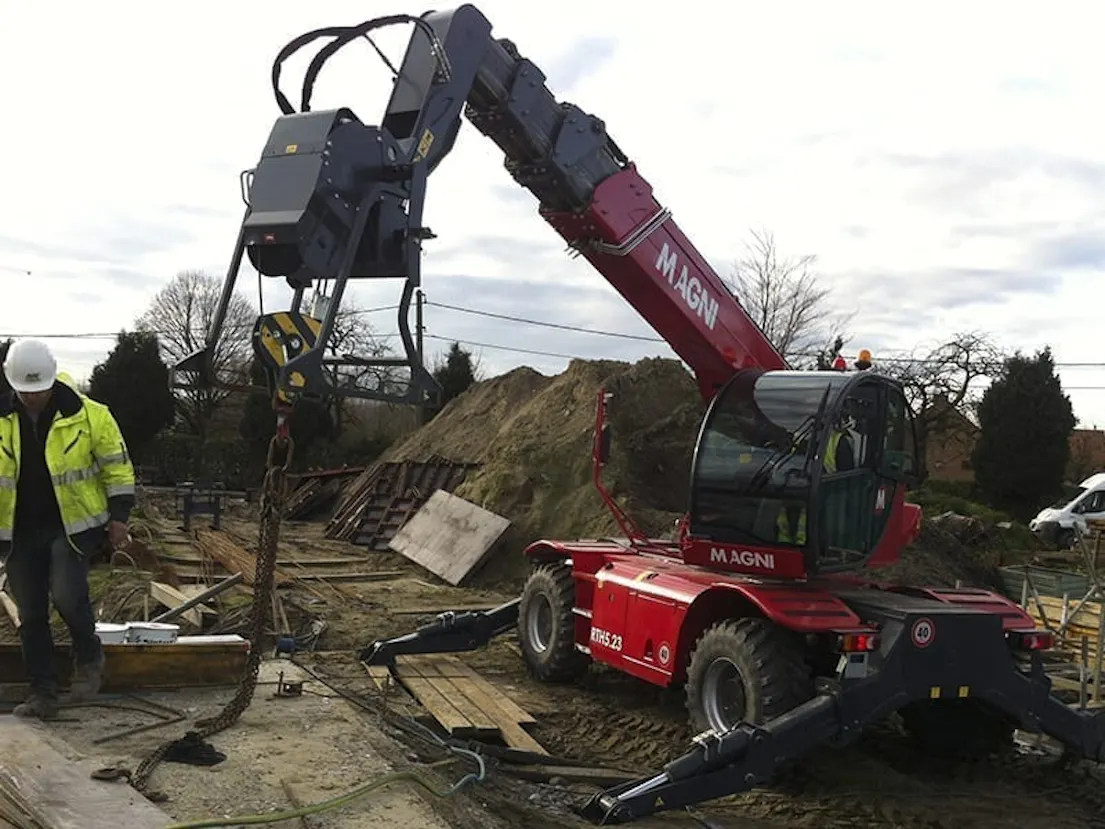

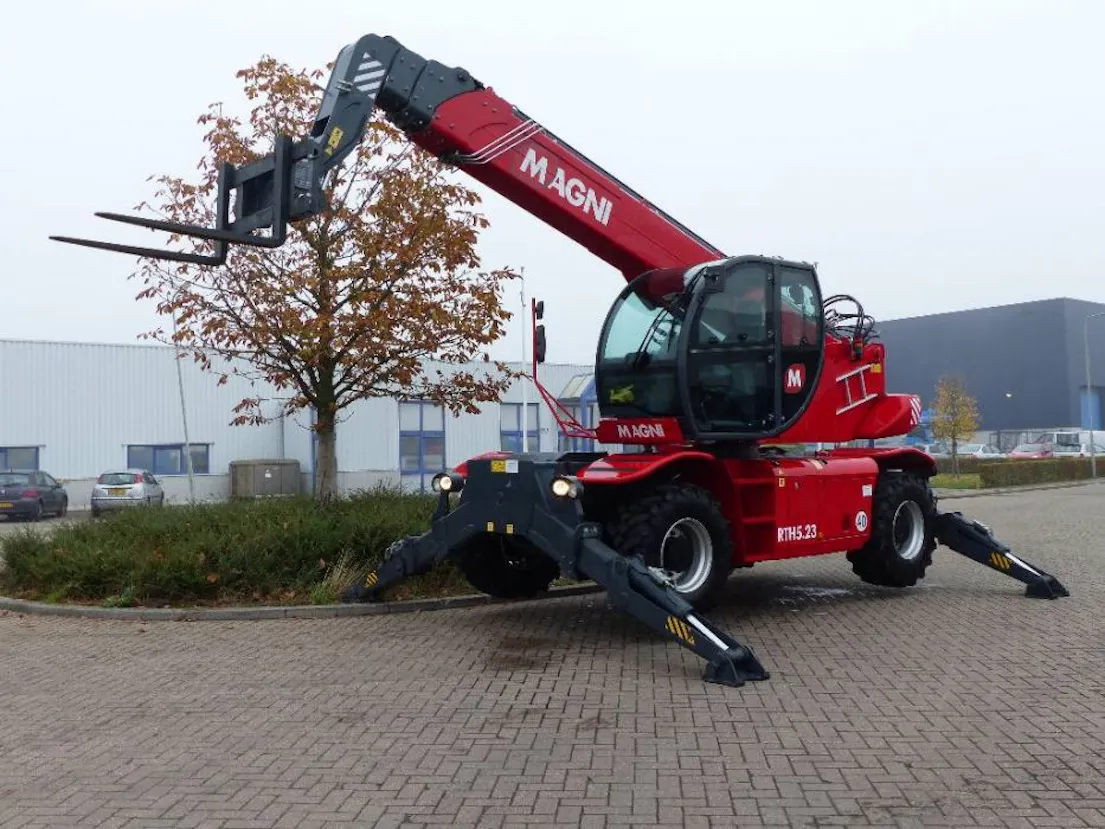

The RTH 5.23 stands as a compact yet high-performance rotating telescopic handler. It demonstrates the capacity to elevate loads to an impressive height of 23 meters while incorporating pivoting stabilizers to ensure steadfast stability and safety throughout all manoeuvres.

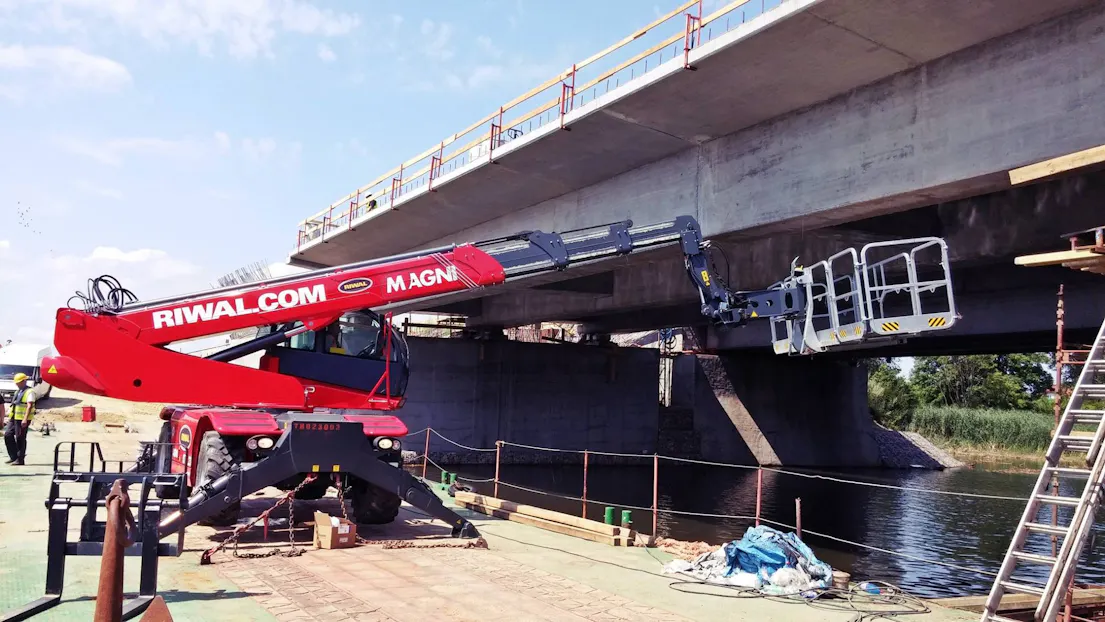

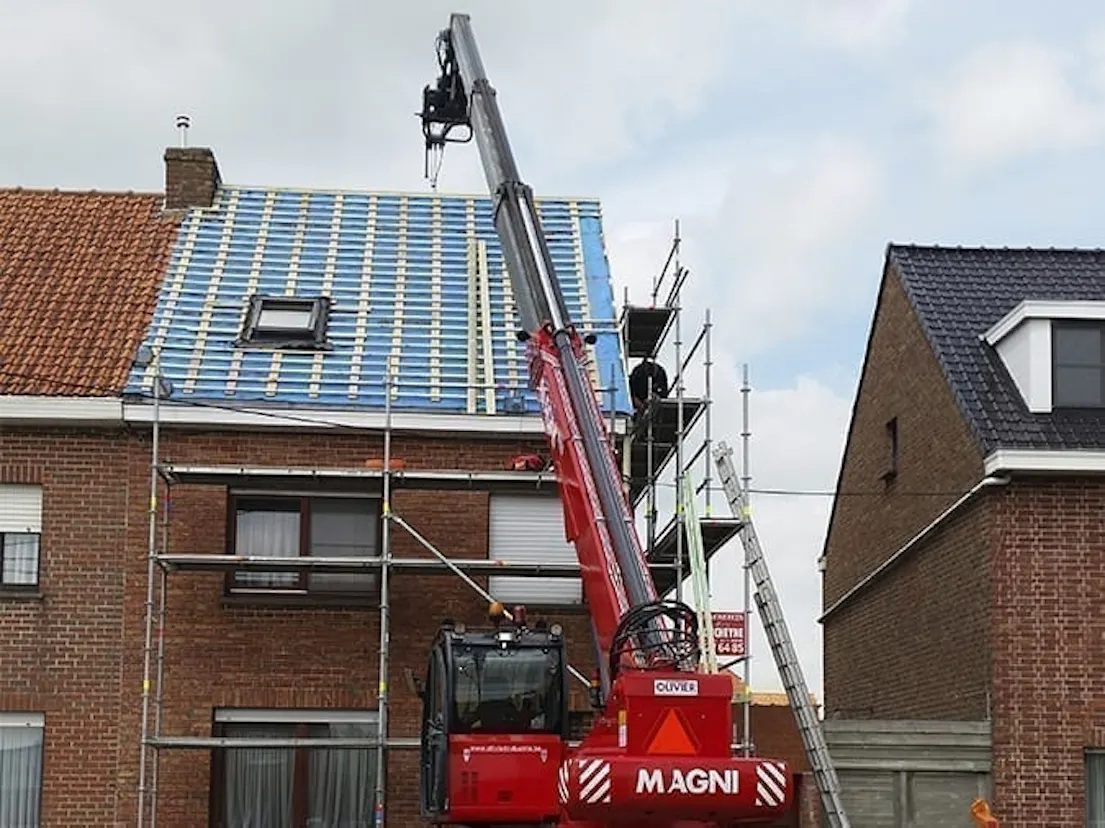

Its adaptability extends to a vast selection of accessories, facilitated by the RFID system, which enables automatic recognition and the generation of corresponding load charts. This telescopic handler proves itself versatile, catering to a broad spectrum of applications within the construction and industrial sectors.

Technical Specifications:

  • Stabilizer Type: Pivoting
  • Maximum Lifting Capacity: 4,999 kg
  • Capacity at Full Height: 2,200 kg
  • Maximum Lifting Height: 22.80 m
  • Reach: 19.50 m
  • Engine: Deutz TCD 3.6 L4 - Stage V
  • Rated Power Output: 100 kW (136 hp) at 2,200 rpm
  • Number of Gears: 2 forward, 2 reverse
  • Hydraulic System Pressure: 350 bar (Load Sensing)
  • Length: 7.18 m
  • Width: 2.55 m
  • Ground Clearance: 320 mm
  • Unladen Weight: 16,400 kg
  • Travel Speed: 40 km/h
  • Rotation Capability: 360° (continuous)
  • Standard Climate Control: Yes
  • Automatic Accessory Recognition: Yes
  • Reversible Fan Drive: Yes
