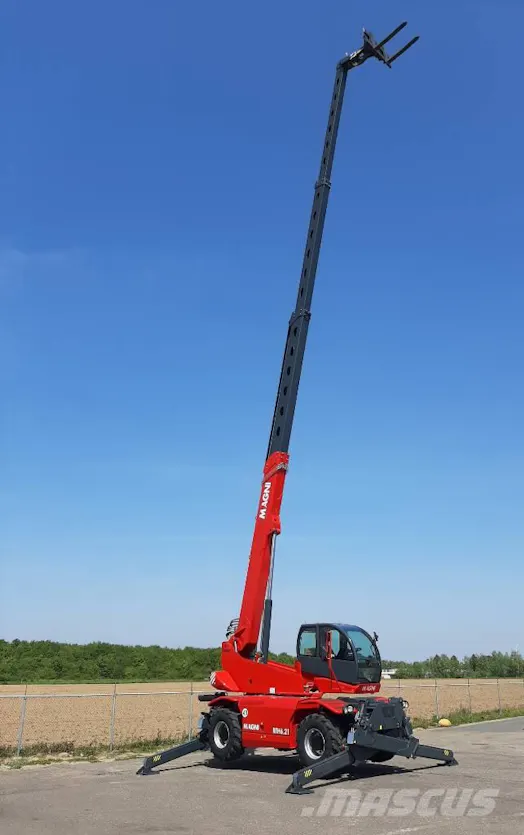

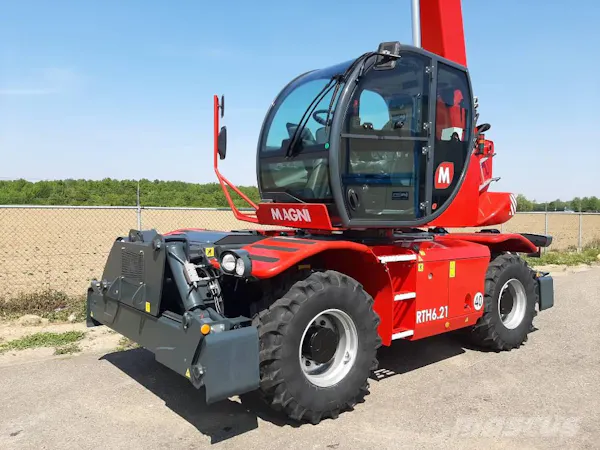

Magni RTH6.21 Rotational Telehandler

The RTH 6.21 is especially good for jobs that need access to narrower and smaller spaces, and require intricate manoeuvrability. Scissor stabilisers work to ensure greater flexibility and, of course, stability, to make the machine a safe and reliable one for the operator and all people onsite. It is ideal for worksites with limited space, and is able to work effectively on only partially stabilised situations as it provides the best load chart on each side respectively. This telescopic handler can meet a wide range of applications in a range of construction and industry environments.

Technical Specifications:

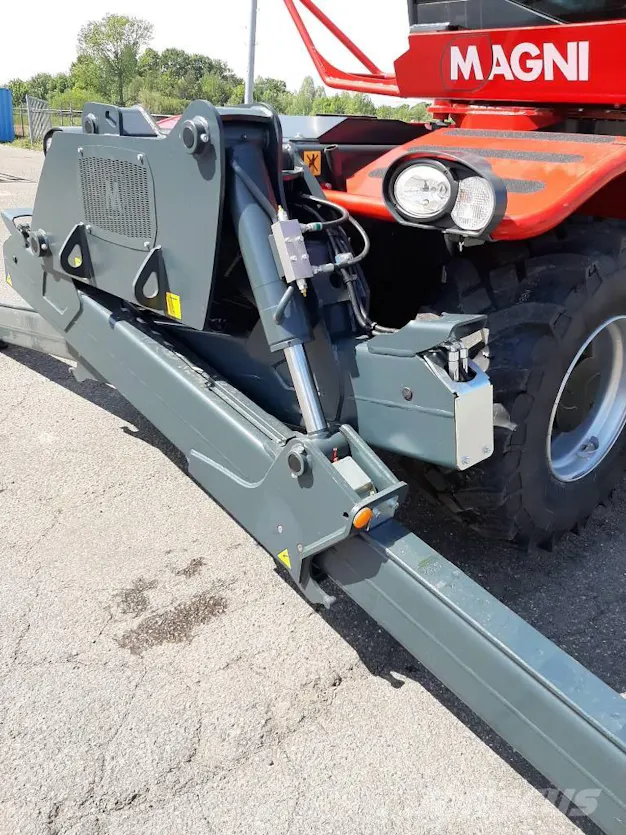

• Stabilizer Type: Scissors


• Maximum Lifting Capacity: 6,000 kg


• Capacity at Full Height: 3,200 kg


• Maximum Lifting Height: 20.80 m


• Reach: 17.40 m


• Engine: Deutz TCD 3.6 L4 - Stage V


• Rated Power Output: 100 kW (136 hp) at 2,200 rpm


• Number of Gears: 2 forward, 2 reverse


• Hydraulic System Pressure: 350 bar (Load Sensing)


• Length: 6.69 m


• Width: 2.53 m


• Ground Clearance: 320 mm


• Unladen Weight: 17,600 kg


• Travel Speed: 40 km/h


• Rotation Capability: 360° (continuous)


• Standard Climate Control: Yes


• Automatic Accessory Recognition: Yes


• Reversible Fan Drive: Yes
