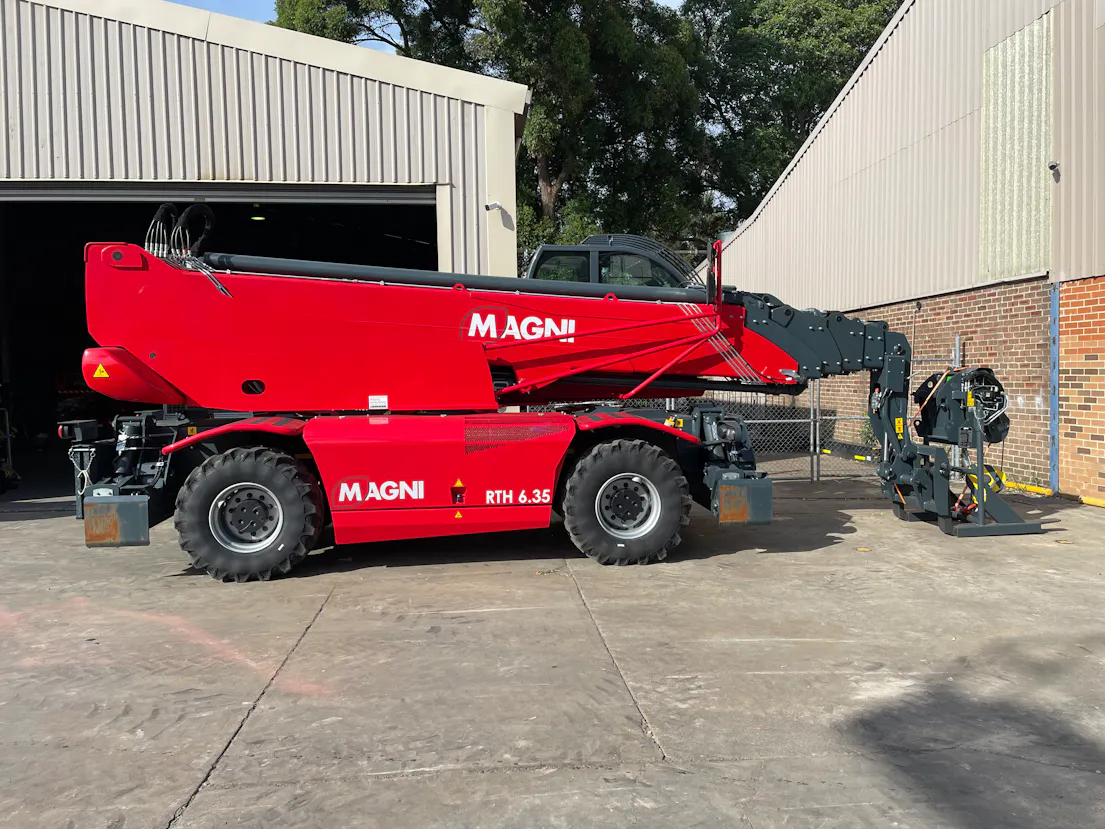

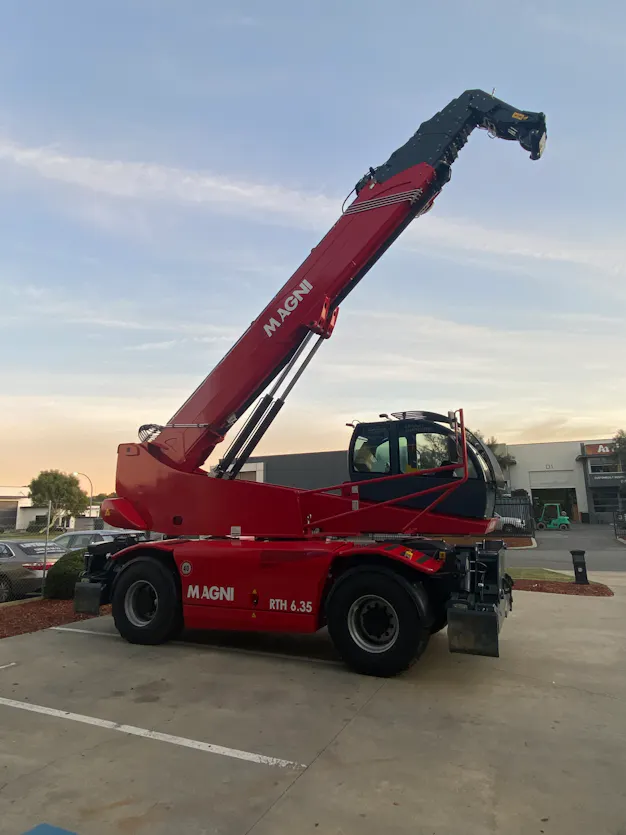

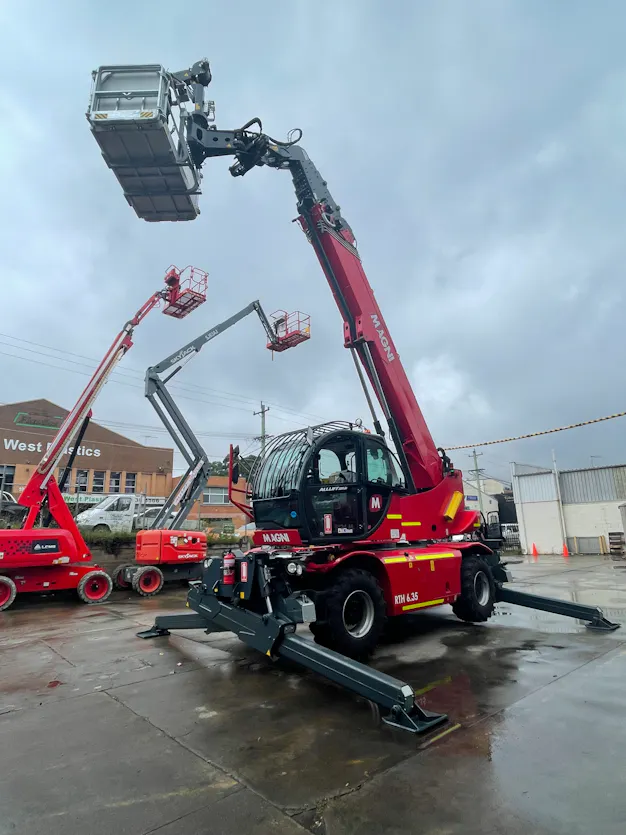

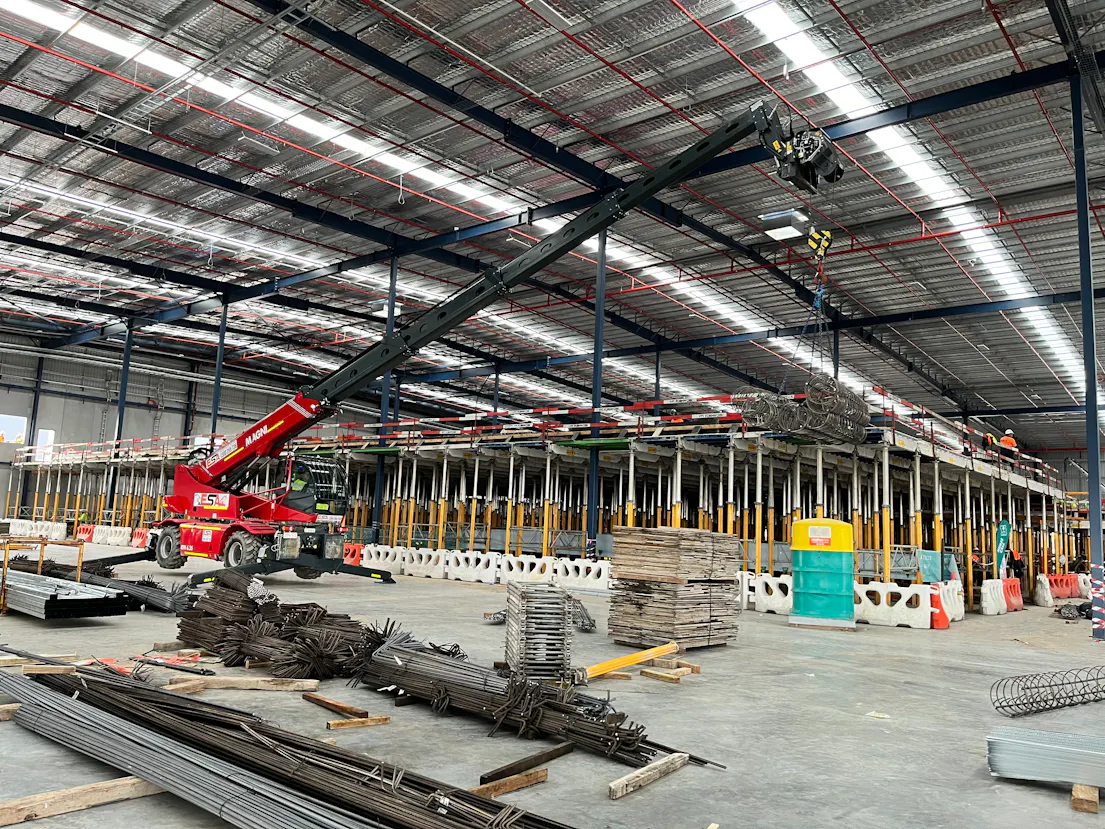

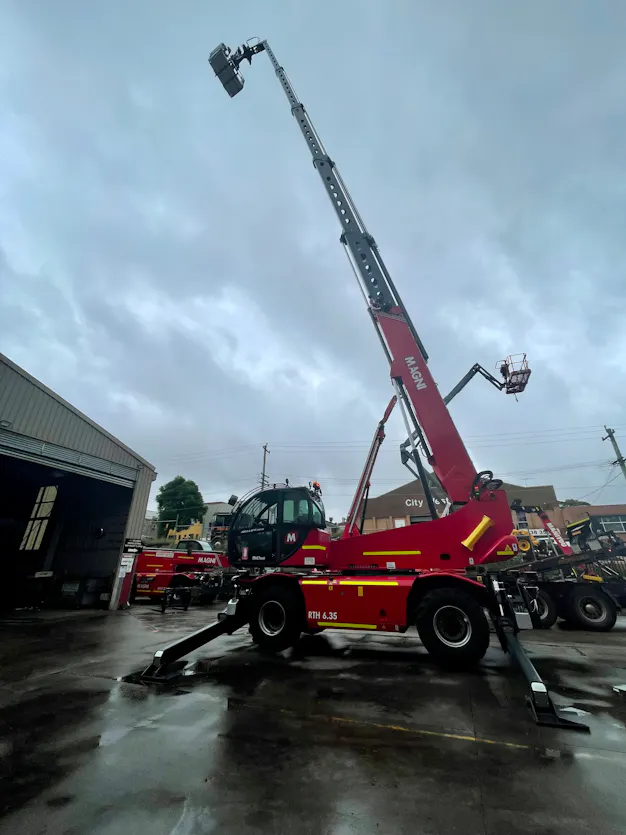

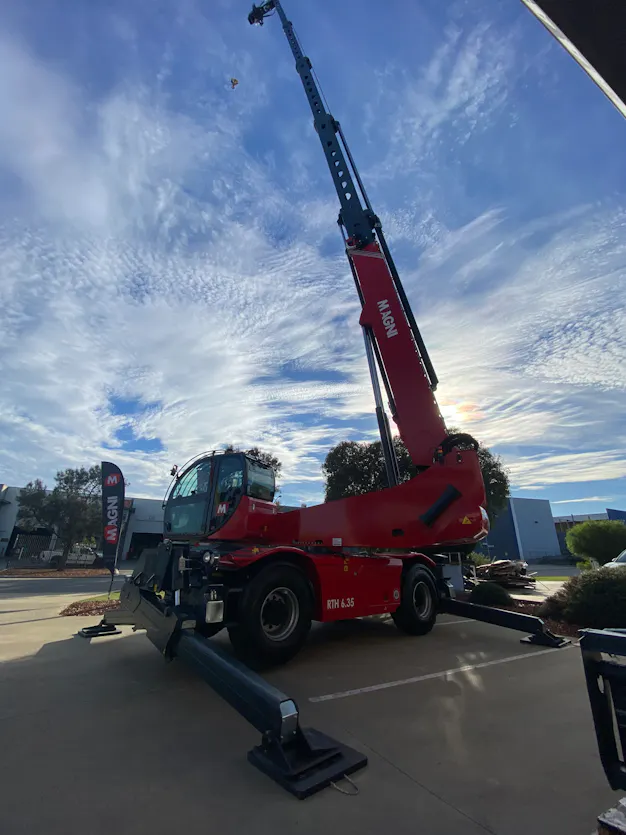

Magni RTH6.35 Rotational Telehandler

The RTH 6.35 is a robust and high-performance rotating telescopic handler designed for demanding tasks. With a remarkable lifting capacity of up to 35 meters, it offers superior performance. Equipped with scissor stabilizers, it prioritizes safety and stability during various work manoeuvres. These scissor stabilizers are exceptionally versatile, making them suitable even in confined spaces. Even when partially stabilized, the machine intelligently optimizes load charts on each side for safe operation. When fully extended, the stabilizers provide maximum machine performance across a 360° range, offering a broad stabilization base.

Furthermore, this telescopic handler is highly adaptable, thanks to its compatibility with a wide array of accessories. The inclusion of an RFID system enables automatic recognition of attachments and the generation of corresponding load charts. This versatility makes the RTH 6.35 well-suited for a diverse range of applications in the construction and industrial sectors, where both safety and performance are essential.

Specifications

• Stabilization System: Scissor Type


• Maximum Lifting Capacity: 6,000 kg


• Capacity at Full Height: 3,000 kg


• Maximum Lifting Height: 34.90 m


• Horizontal Reach: 27 m


• Engine Type: Volvo TAD 583 VE - Stage V


• Rated Engine Power: 175 kW (238 hp) at 2,300 rpm


• Transmission Gears: 2 forward, 2 reverse


• Hydraulic System Pressure: 350 bar (Load Sensing)


• Overall Length: 8.09 m


• Overall Width: 2.54 m


• Ground Clearance: 310 mm


• Unladen Weight: 24,000 kg


• Travel Speed: 40 km/h


• Continuous Rotation: 360°


• Standard Climate Control: Yes


• Automatic Accessory Recognition: Yes


• Reversible Fan Drive: Yes
