Magni RTH6.39 Rotational Telehandler

6 tonne / 39 metre

The RTH 6.39 is a specialized rotating telescopic handler engineered to handle heavy and bulky loads efficiently. With an impressive lifting height of 39 meters, it excels in construction and industrial settings demanding substantial reach and lifting capabilities. Its features include an inclination corrector and scissor stabilizers equipped with large support feet, ensuring exceptional stability in all scenarios and providing reliable traction on various terrains, thus prioritizing operator safety.

The scissor stabilizers prove highly adaptable, even when space is limited. Even when only partially stabilized, the machine is intelligently programmed to optimize load charts for each side. Conversely, when the stabilizers are fully extended, they deliver peak machine performance,   anning a broad stabilization base of 360°. This versatility makes it a reliable choice for a wide array of applications in the construction and industrial sectors.

Moreover, the telescopic handler seamlessly integrates with a vast assortment of accessories, thanks to its RFID system. This system offers automatic recognition of attachments and generates corresponding load charts. Consequently, the RTH 6.39 is primed to meet diverse requirements within the construction and industrial realms.


SPECIFICATIONS

  • Stabilization Mechanism: Scissor Type
  • Maximum Lifting Capacity: 6,000 kg
  • Capacity at Full Height: 2,300 kg
  • Maximum Lifting Height: 38.90 m
  • Horizontal Reach: 27 m
  • Engine Type: Volvo TAD 583 VE - Stage V
  • Rated Engine Power: 175 kW (238 hp) at 2,300 rpm
  • Transmission Gears: 2 forward, 2 reverse
  • Hydraulic System Pressure: 350 bar (Load Sensing)
  • Overall Length: 8.60 m
  • Overall Width: 2.54 m
  • Ground Clearance: 310 mm
  • Unladen Weight: 24,000 kg
  • Travel Speed: 40 km/h
  • Continuous Rotation: 360°
  • Standard Climate Control: Yes
  • Automatic Accessory Recognition: Yes
  • Reversible Fan Drive: Yes
Enquire Now Enquire Now Call Now
FEATURES & BENEFITS
Specifications
Enquire Now
FEATURES & BENEFITS
  • 360° rotation
  • Registered cab design
  • FOPS/ROPS
  • MCTS
  • 100% air filtration
  • Heating/air conditioning as standard
  • Cup holder
  • R.F.ID
  • Four-wheel drive
  • Self Leveling
  • CAN bus
  • Hydraulic system
  • Best lifting performance
  • Gradeability 30°-40°

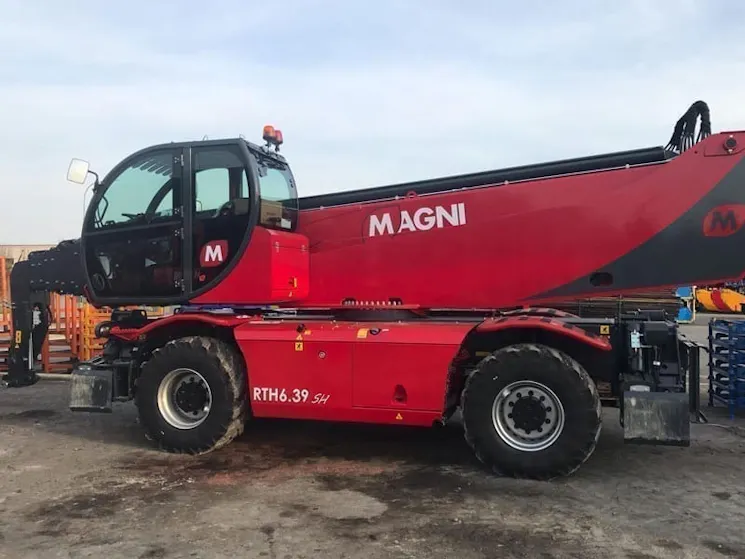

 Magni Images and Specs RTH639 magni-6.39-sh-2
Specifications
Stabilisers:
scissors
Lifting capacity:
6,000 kg
Capacity at maximum height:
2,300 kg
Lifting height:
38.90 m
Reach: 27m
27m
Engine:
Volvo TAD 583 VE - Stage 3, 4 or 5 (Customers Choice)
Rated power:
170 kW - 238 Hp @ 2300 rpm
Number of gears:
2/2
Hydraulic system:
Load Sensing 350 bar
Length:
8600 mm
Width:
2540 mm
Ground clearance:
320 mm
Unladen weight:
23,850 kg
Travel speed:
40 km/h
Rotation:
360°
Climate control as standard:
Yes
Automatic attachment recognition:
Yes
