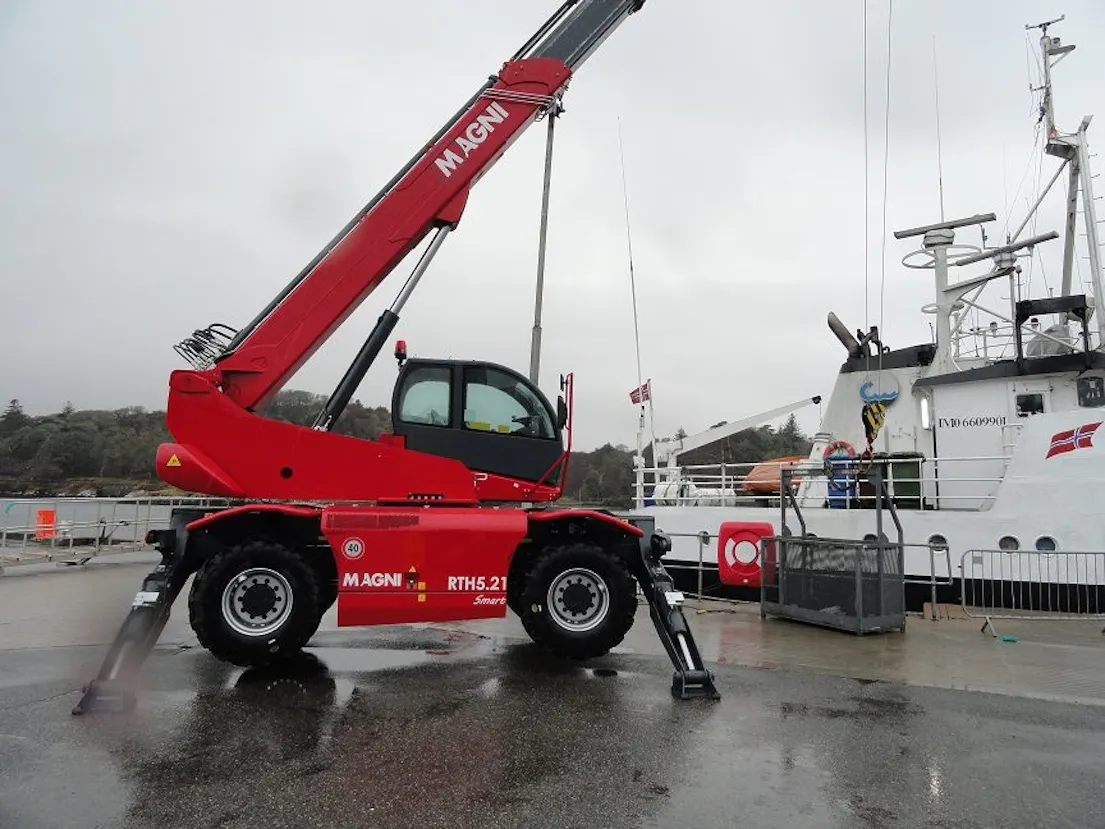

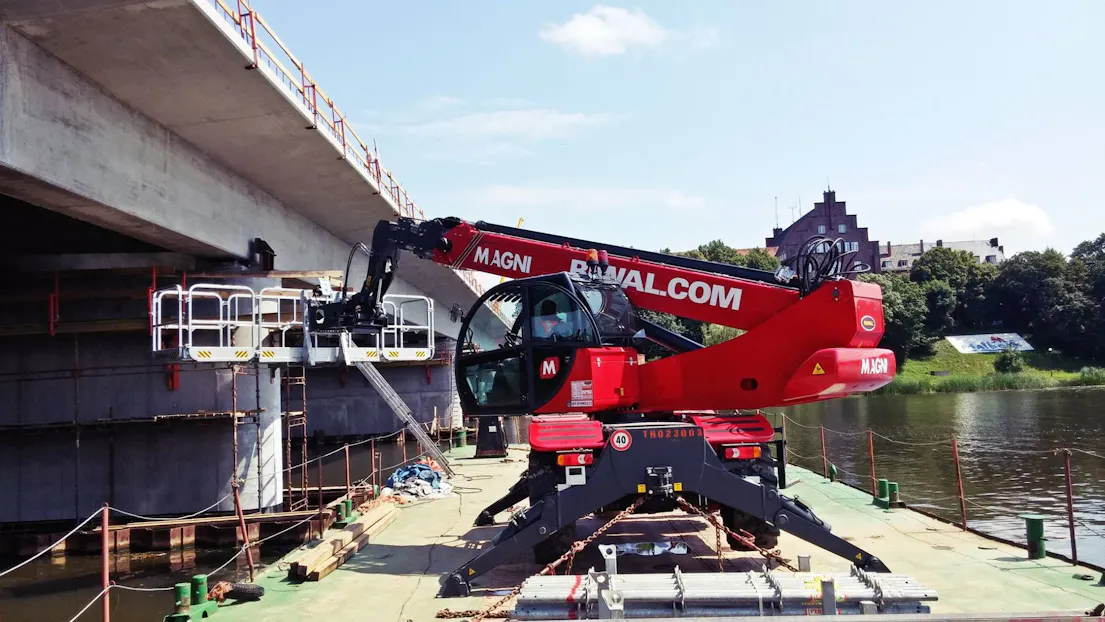

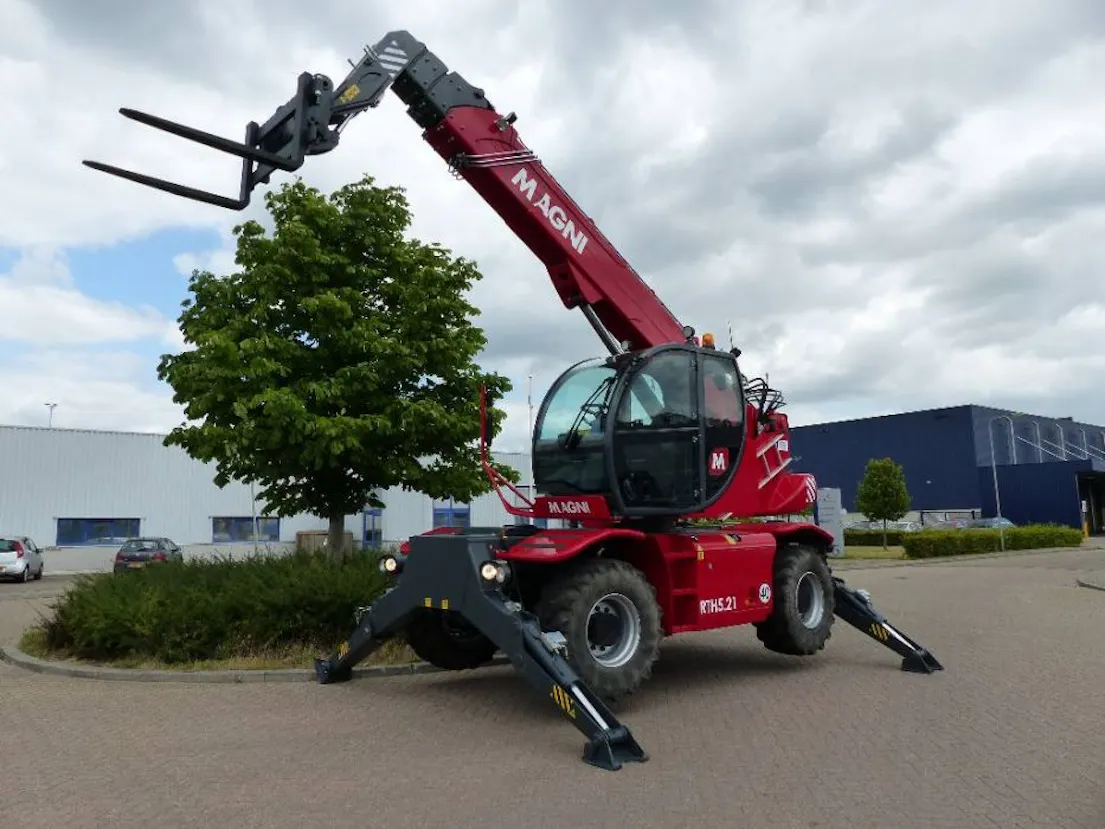

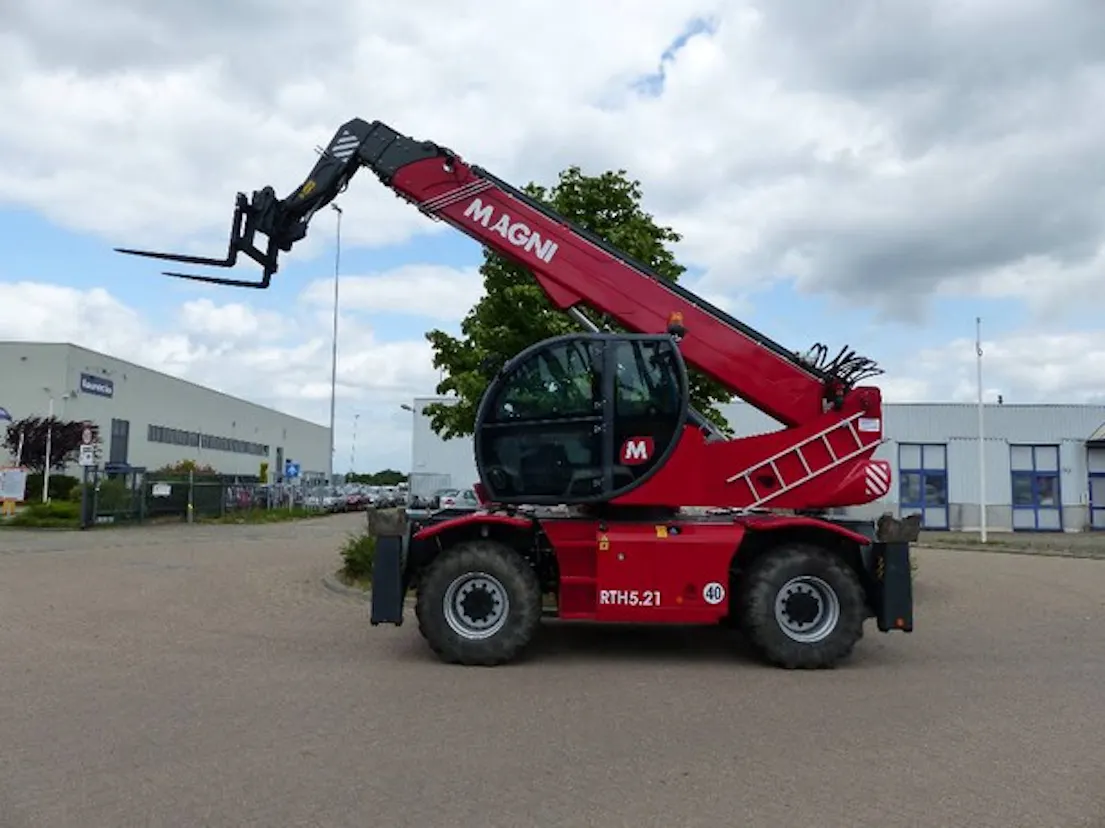

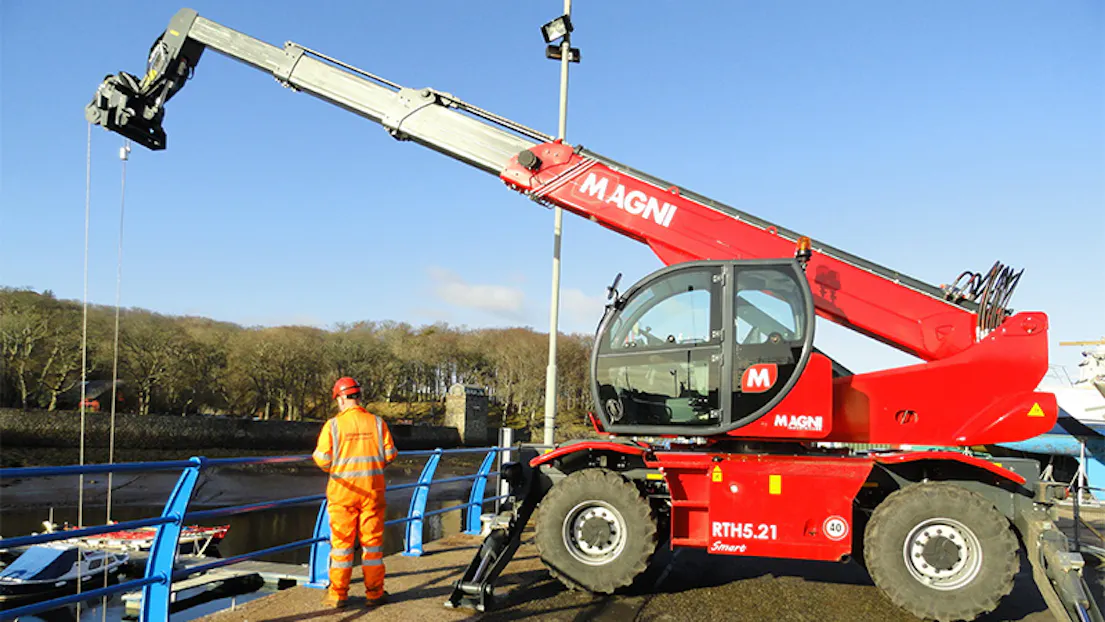

Magni RTH5.21 Rotational Telehandler

The RTH 5.21 is a straightforward yet high-performing rotating telescopic handler. It boasts the capability to lift loads to a height of 21 meters and comes equipped with pivoting stabilizers, ensuring stability and safety throughout all operational maneuvers. Additionally, it features a secure load indicator, which notifies the operator of potential machine overloading during use, and offers three distinct steering modes.

Its compatibility with a wide array of attachments is facilitated by the RFID system, which enables automatic attachment recognition and the creation of corresponding load charts. This telescopic handler represents an ideal solution for a diverse range of needs within the construction and production sectors.

Technical Specifications:

• Stabilizer Type: Pivoting


• Maximum Lifting Capacity: 4,999 kg


• Capacity at Full Height: 2,500 kg


• Maximum Lifting Height: 20.50 m


• Reach: 17.40 m


• Engine: Deutz TCD 3.6 L4 - Stage V


• Rated Power Output: 100 kW (136 hp) at 2,200 rpm


• Number of Gears: 2 forward, 2 reverse


• Hydraulic System Pressure: 350 bar (Load Sensing)


• Length: 6.57 m


• Width: 2.55 m


• Ground Clearance: 330 mm


• Unladen Weight: 15,900 kg


• Travel Speed: 40 km/h


• Rotation Capability: 360° (continuous)


• Standard Climate Control: Yes


• Automatic Accessory Recognition: Yes


• Reversible Fan Drive: Yes
