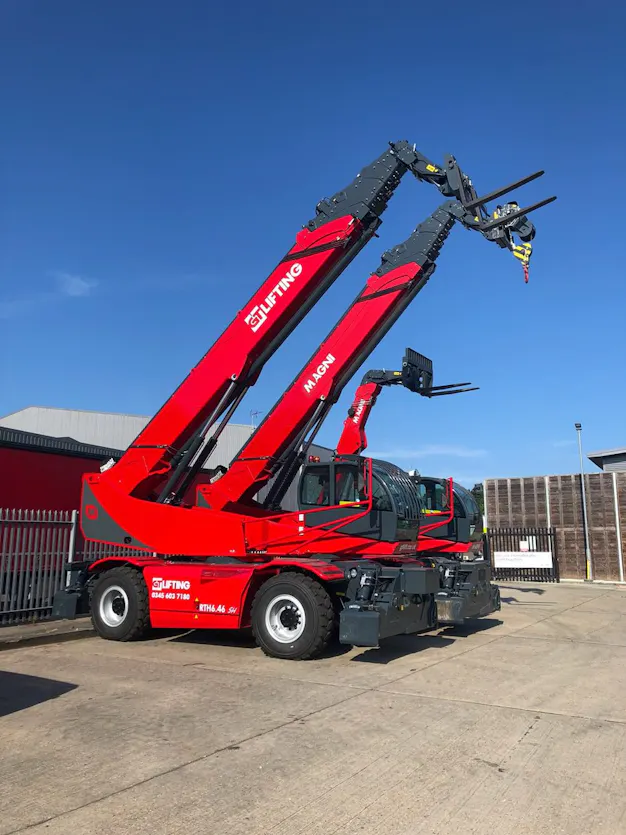

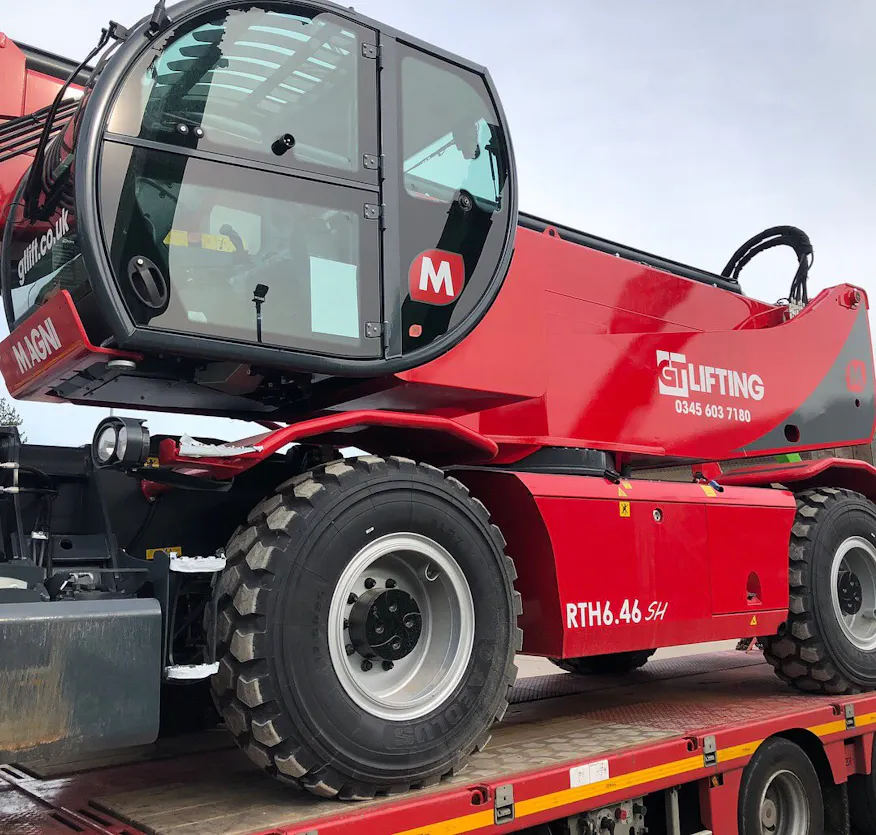

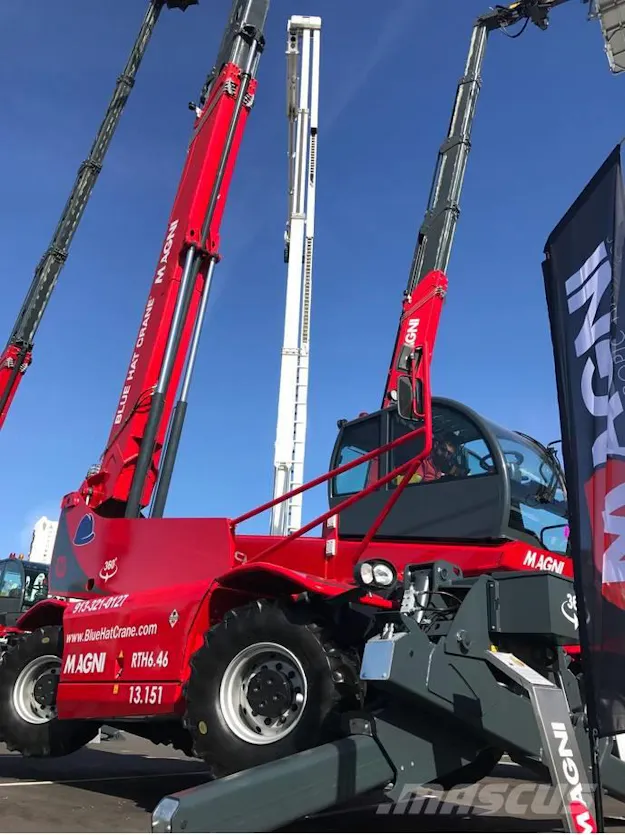

Magni RTH6.46

6 tonne / 46 metre

The RTH 6.46 achieves a lifting height of 46 m, with a maximum load capacity of 6 tonnes. It is the perfect solution for all construction or industrial sites requiring best-in-class reach and lifting capacities. The inclination corrector and scissor stabilisers with large support feet offer excellent stability under all circumstances, guaranteeing perfect ground holding on all terrain in order to ensure maximum operator safety.  The dual-extension scissor stabilisers are ideal even with limited space available; even when it is only partially stabilised, the machine is programmed to provide the best possible load chart on each side. This model allows the same attachment to be used in two different ways: strength mode M2 and stability mode M1. The first allows very heavy loads to be lifted, but with a more limited extension. The second mode, on the other hand, allows for greater extension, but with more limited loads.


Enquire Now Call Now
FEATURES & BENEFITS
Specifications
Enquire Now
FEATURES & BENEFITS
  • 360° rotation
  • Registered cab design
  • FOPS/ROPS
  • MCTS
  • 100% air filtration
  • Heating/air conditioning as standard
  • Cup holder
  • R.F.ID
  • Four-wheel drive
  • Self Leveling
  • CAN bus
  • Hydraulic system
  • Best lifting performance
  • Gradeability 30°-40°
 Magni Images and Specs RTH646 magni-rth-6.46-sh-1
Specifications
Stabilisers:
scissors
Lifting capacity:
6,000 kg
Capacity at maximum height:
2,500 kg
Lifting height:
45.64 m
Reach:
33.50m
Engine:
Volvo TAD 583 VE - Stage 3, 4 or 5 (Customers Choice)
Rated power:
175 kW - 283 Hp @ 2300 rpm
Number of gears:
2/2
Hydraulic system:
Load Sensing 350 bar
Length:
9330 mm
Width:
2540 mm
Ground clearance:
390 mm
Unladen weight:
30,600 kg
Travel speed:
25 km/h
Rotation:
360°
Climate control as standard:
Yes
Automatic attachment recognition:
Yes
