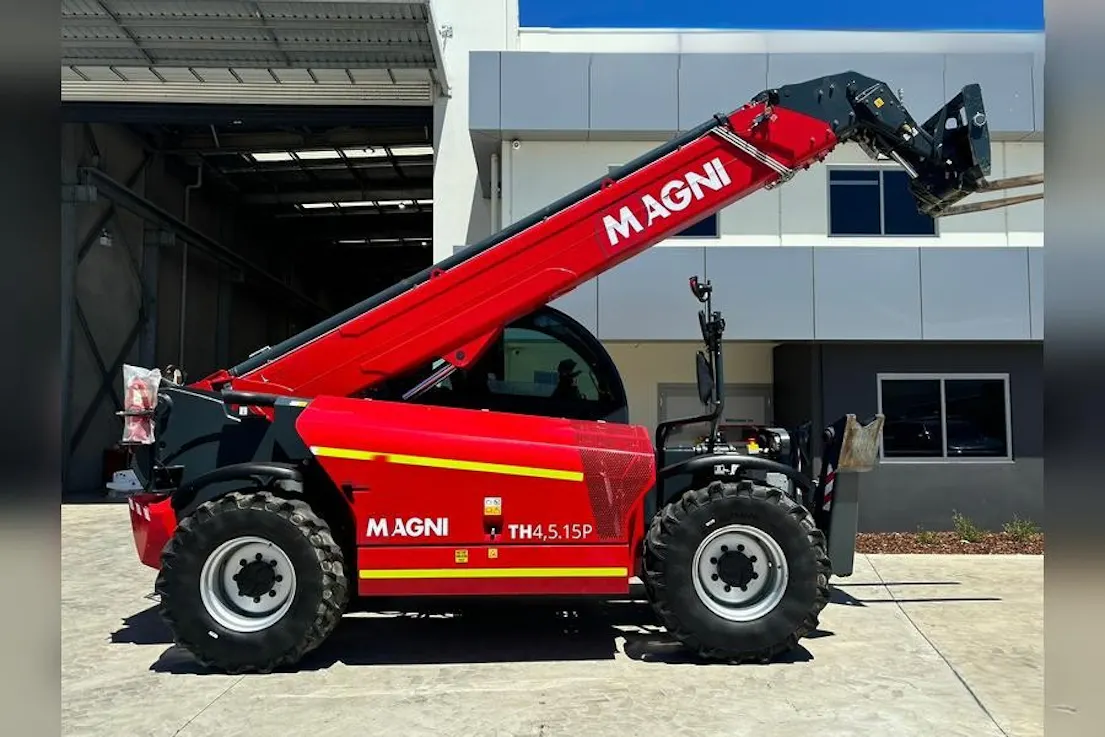

New Magni TH4.5-15P

Description

The TH4.5.15 P is a fixed telescopic handler especially suitable for demanding light industrial sites. Powered by a Deutz 74 kW engine, it can safely reach a height of 15,20 m on rough terrain thanks to its 4-wheel drive and the automatic levelling system, which acts on both the wheels and stabilisers. The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts.



This model is equipped with the levelling system on tyres allowing the operator to adjust the inclination of the machine. Thus, the entire load diagram is available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.



Some features:



New enhanced and unparalleled lifting capacities

Completely redesigned machine management software

Greatly improved dynamic load chart visualisation

Fully revised hydraulic and electrical systems to facilitate After sales service

Lowered design for greater stability

Available with Deutz Stage V / Stage IIIA engines

Standard pivoting stabilisers for optimised lifting capacities up to 4.5 tonnes





Technical features

Stabilisers: Pivoting

Lifting capacity: 4500 kg

Capacity at maximum height: 3500 kg

Lifting height: 15.20 m

Reach: 10.40 m

Engine: Deutz TCD 3.6 L4 Stage V

Rated power: 74.40 kW (101,20 hp) 2.200 rpm

Number of gears: 2/2

Hydraulic system: 350 bar (Load Sensing)

Length: 6.41 m

Width: 2.53 m

Ground clearance: 410 mm

Unladen weight: 12,200 kg

Travel speed: 35 km/h

Climate control as standard: Yes

Automatic attachment recognition: Yes
