Magni TH5.8 Mining

P.O.A

TECHNICAL FEATURES

  • Lifting capacity: 5000 kg
  • Lifting height: 7.60 m
  • Engine: Deutz TCD 3,6 L4 EDG Stage IIIA
  • Rated power: 74,4 kW (101,2 hp) a 2.200 rpm
  • Number of gears: 2/2
  • Hydraulic system: 350 bar Load Sensing
  • Length: 5230 mm
  • Width: 2500 mm
  • Ground clearance: 290 mm
  • Unladen weight: 8500 kg
  • Travel speed: 40 km/h
  • Climate control as standard: Yes
  • Automatic attachment recognition: Yes

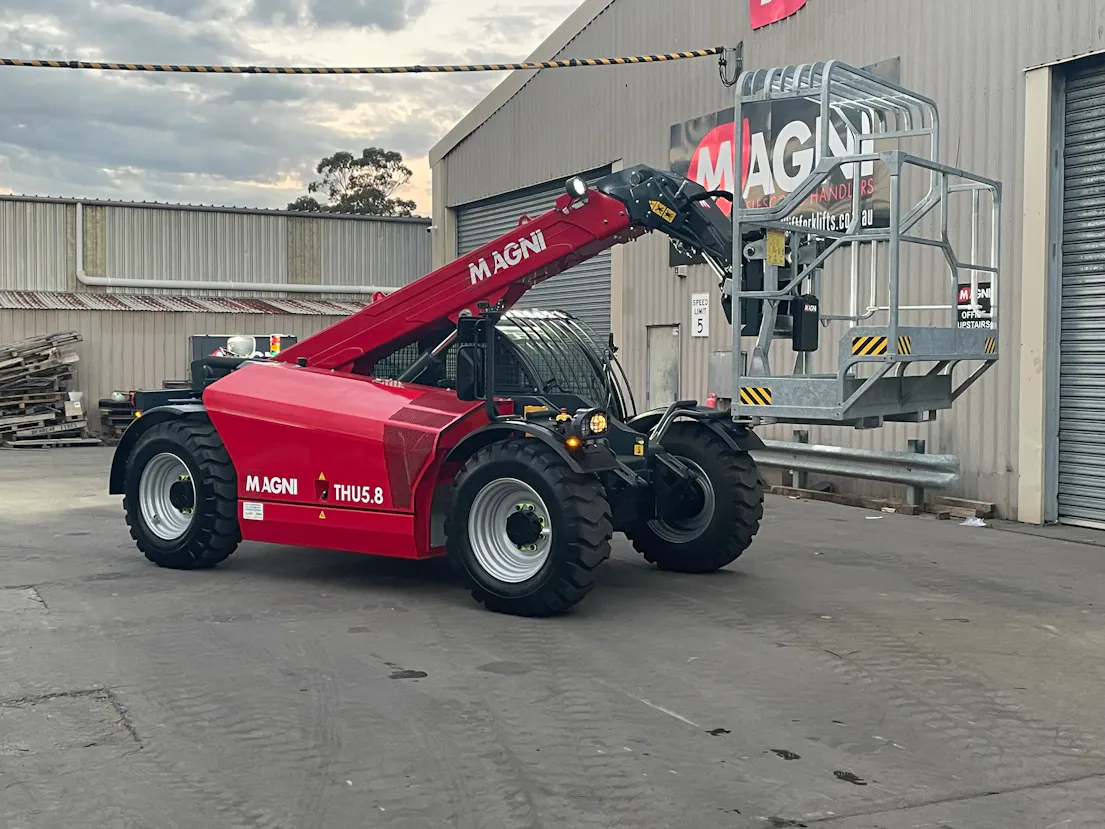

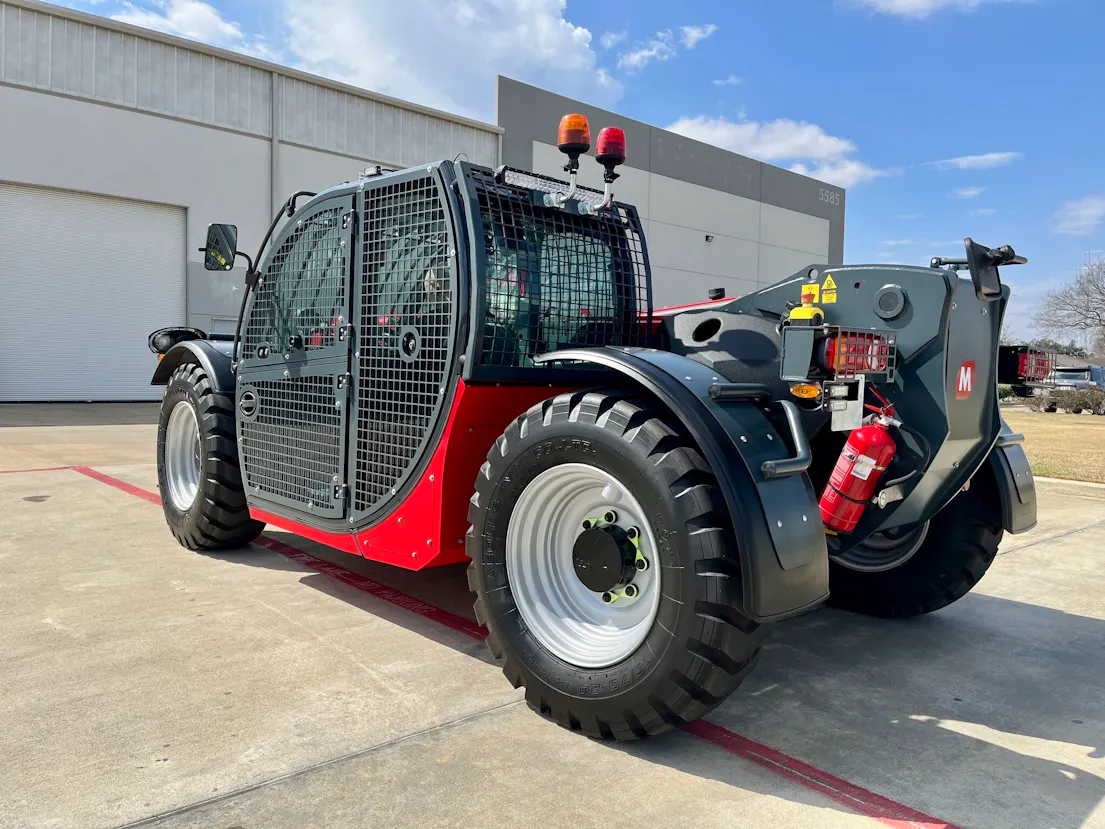

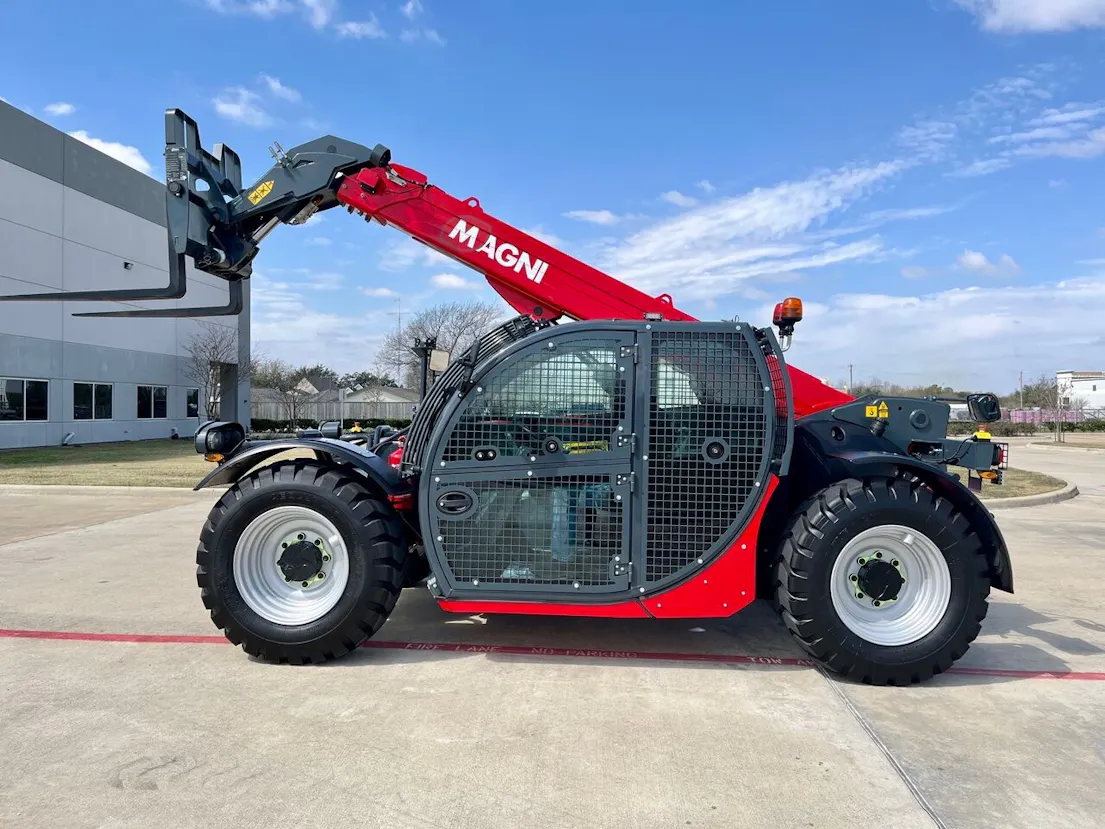

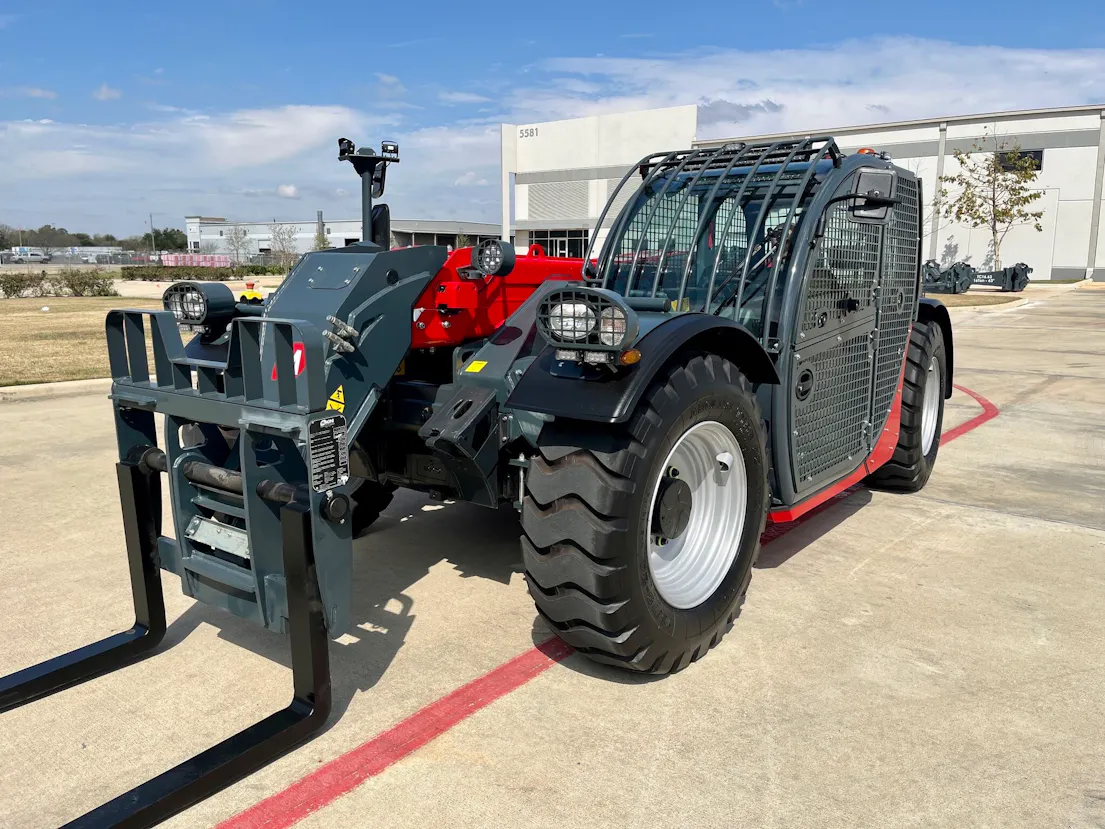

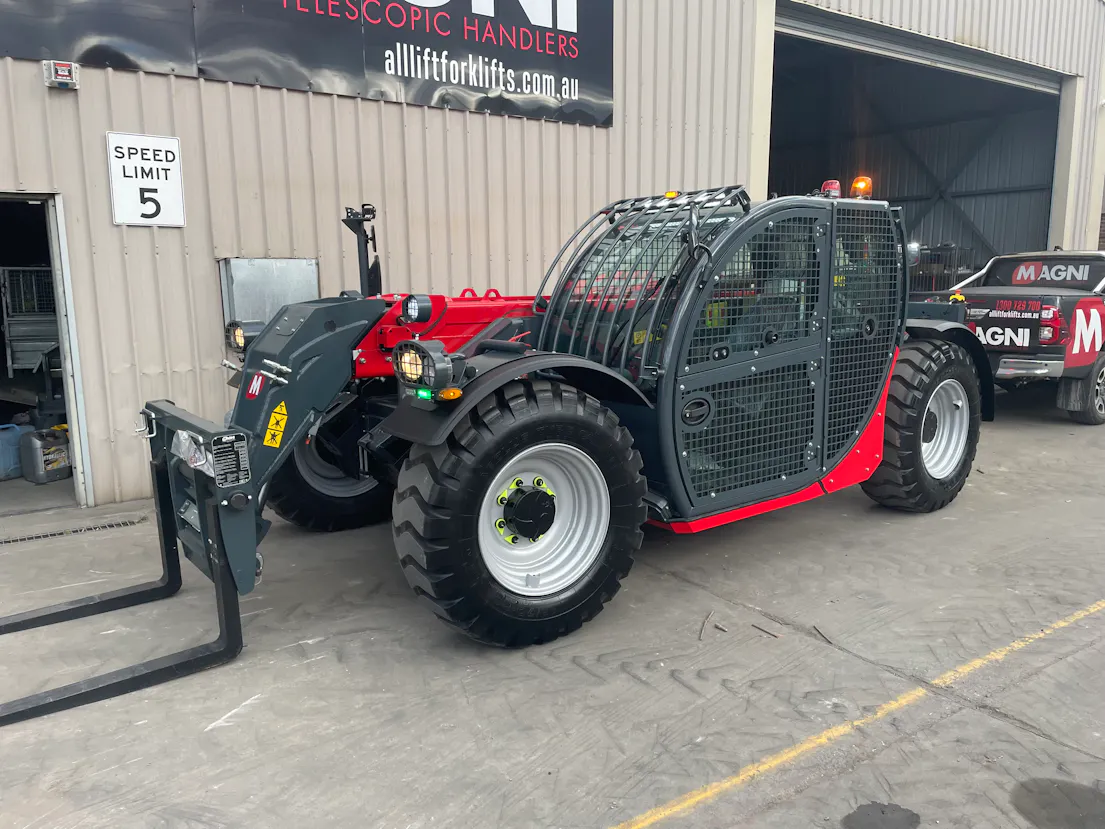

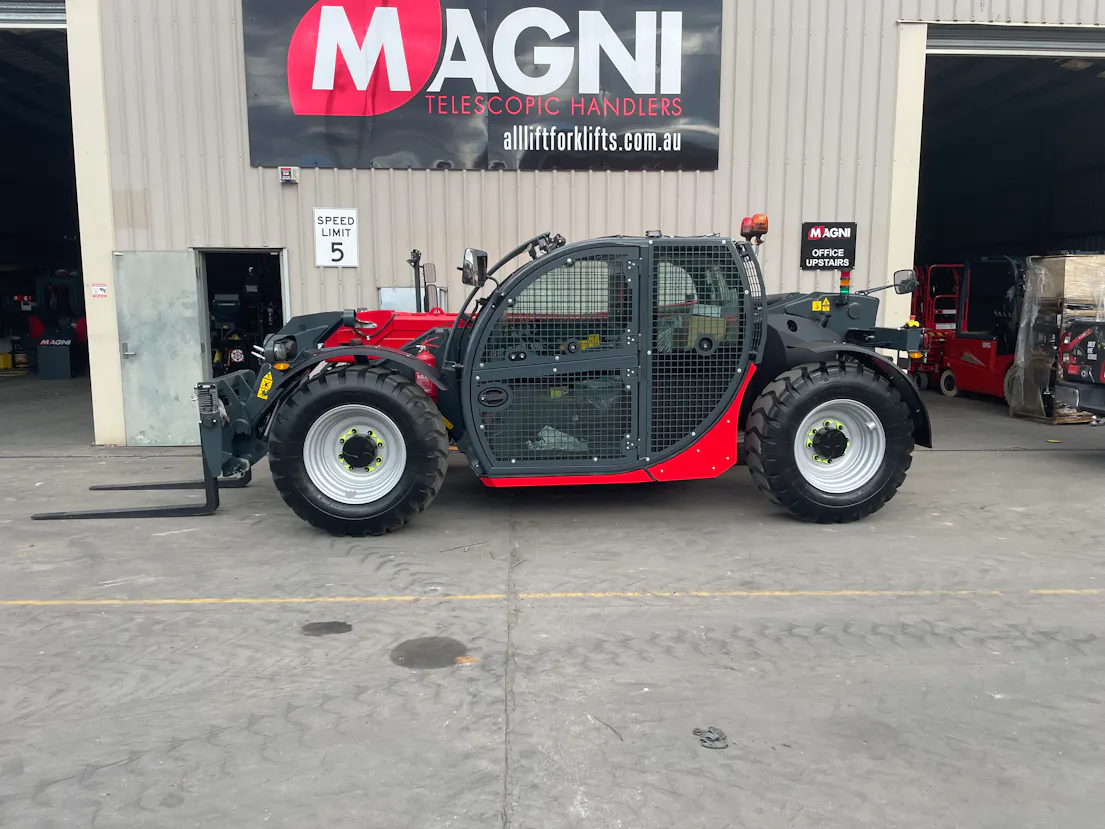

The TH 5.8 MINING is a fixed telescopic handler especially suitable for mining.

Powered by a Deutz 55 kW engine, it can safely reach a height of 7.60 m on rough terrain thanks to its 4-wheel drive.

The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts.

This model is equipped with the levelling system on tyres allowing the operator to adjust the inclination of the machine. Thus, the entire load diagram is available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.



Some features:

  • Extra lowered design to access areas with low ceiling
  • Compact design for unmatched manoeuvrability.
  • Available with Deutz Stage V / Stage IIIA engines
  • 350 bar L/S hydraulic system


THIS MODEL FEATURES ALSO FEATURES AS STANDARD:

  • Cab and light protection
  • LED working lights on the cab and the boom for greater visibility
  • Directional driving and reversing lights
  • Emergencies stop buttons, inside and outside the cab
  • Load monitoring via RCL system (Rated Capacity Limiter)
  • 50 PPM catalytic converter
  • Air conditioning system
  • external fire extinguishers


For full list of standard equipment, consult the TH catalogue.
