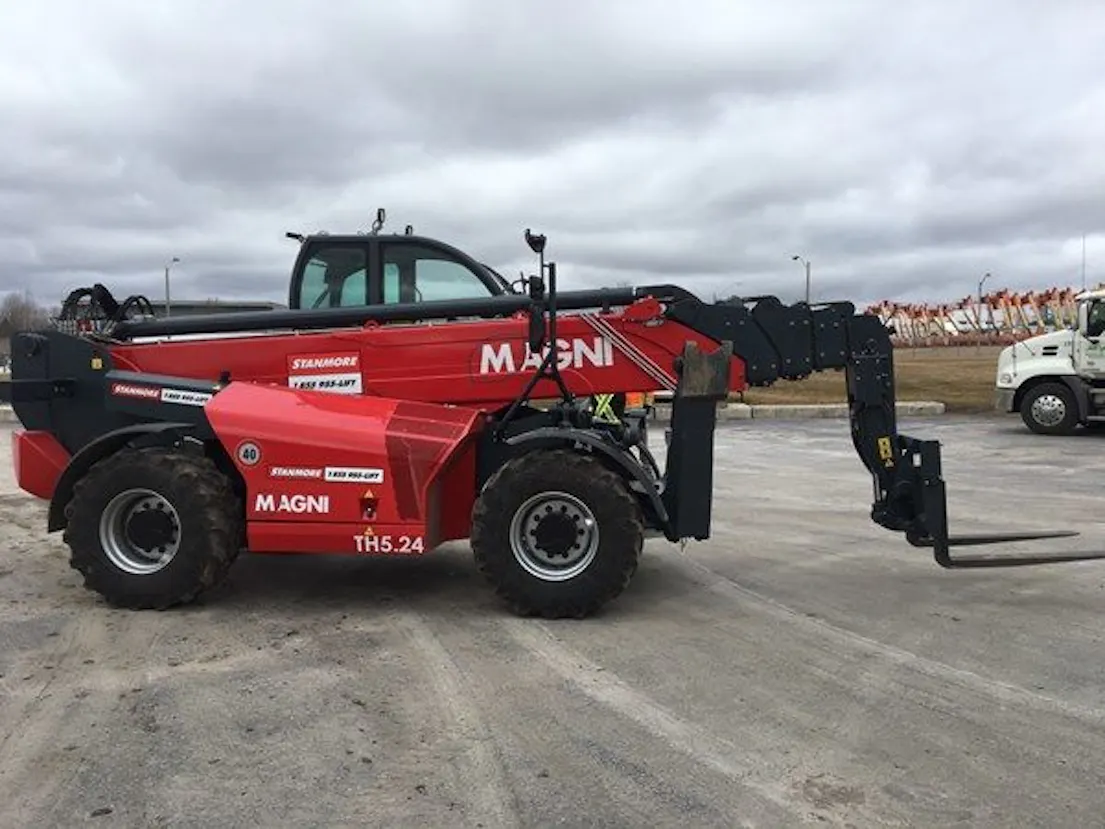

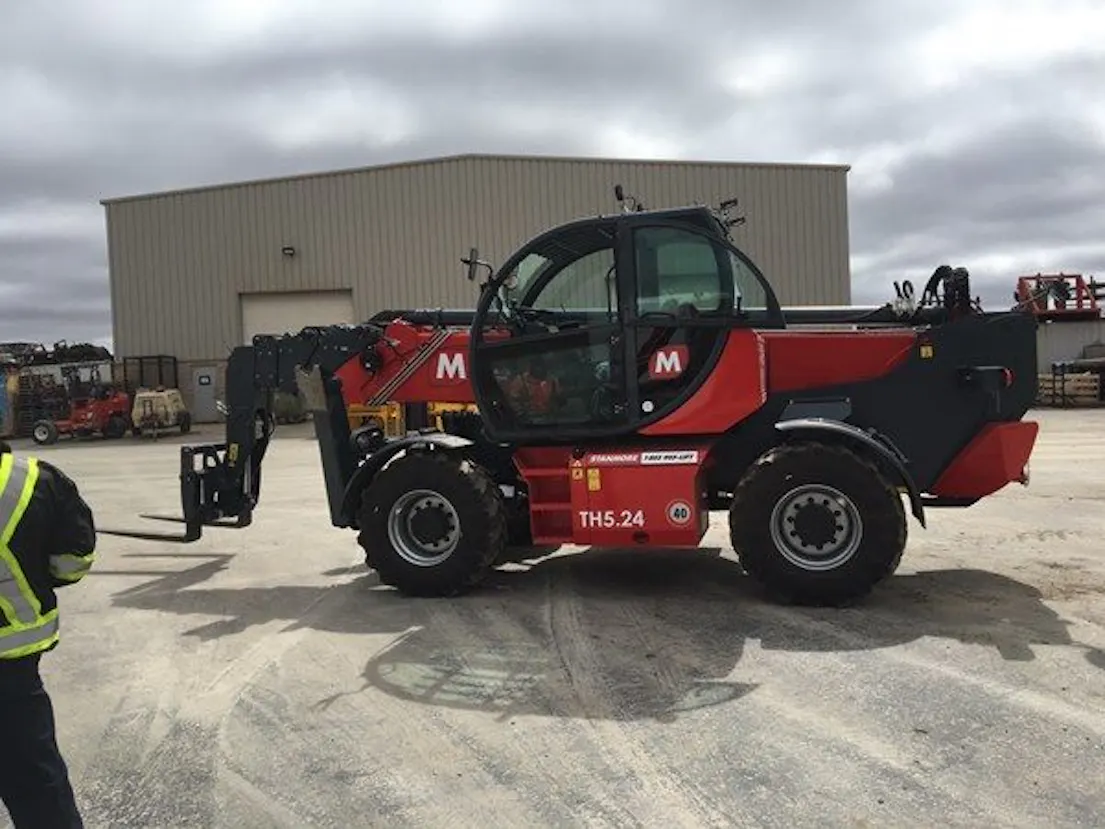

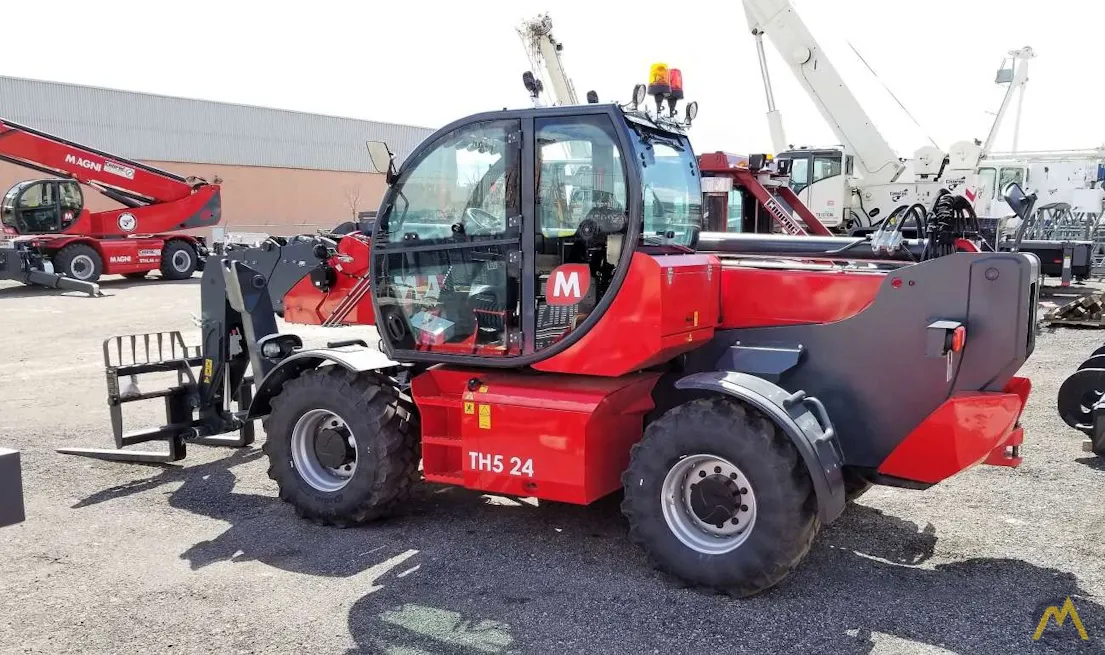

Magni TH5.5-24 Telehandler

The TH 5.5.24 is a fixed telescopic handler especially suitable for demanding working sites. It can safely reach a height of 23.90 m on rough terrain thanks to its 4-wheel drive and the automatic levelling system, which acts on both the wheels and stabilisers. The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts.

The TH5.5.24 is equipped as standard with the side-shift system. It allows for lateral movement of the rear part of the chassis and the boom, around the longitudinal axis of the machine, correcting the position of the load without moving the unit. This system allows for a +/-5° shift which corresponds to a +/- 1,5 m movement when the boom is fully extended, whatever the attachment fitted.

Specifications

• Stabilization Mechanism: Pivoting


• Maximum Lifting Capacity: 5,500 kg


• Capacity at Maximum Height: 1,500 kg


• Maximum Lifting Height: 23.90 m


• Horizontal Reach: 19.10 m


• Engine: Deutz TCD 3.6 L4 Stage V


• Rated Engine Power: 100 kW (136 hp) at 2,200 rpm


• Number of Gears: 2 forward, 2 reverse


• Hydraulic System Pressure: 350 bar (Load Sensing)


• Overall Length: 6.96 m


• Overall Width: 3.37 m


• Ground Clearance: 420 mm


• Unladen Weight: 17,000 kg


• Travel Speed: 40 km/h


• Standard Climate Control: Yes


• Automatic Accessory Recognition: Yes
