Magni RTH8.27 Rotational Telehandler

8 tonne / 27 metre

The RTH 8.27 stands out as a rotating telescopic handler that excels in both construction sites and rental fleets. Its compact and versatile design seamlessly accommodates a wide array of attachments, thanks to the RFID system that facilitates automatic load chart recognition and generation. This telescopic handler is exceptionally adaptable, catering to a diverse range of applications within the construction and industrial sectors. It boasts pivotal stabilizers with an expansive contact surface and an integrated load monitoring system to mitigate the risk of machine overload. Additionally, it offers three distinct steering modes.


Key Features of this Model:

  • Enhanced Performance: Significant improvements in lifting capacity enhance overall performance.
  • Heightened Safety: An enlarged windshield and a forward-shifted cabin position relative to the chassis enhance visibility of ongoing operations. Continuous monitoring tools empower operators to maintain real-time control.

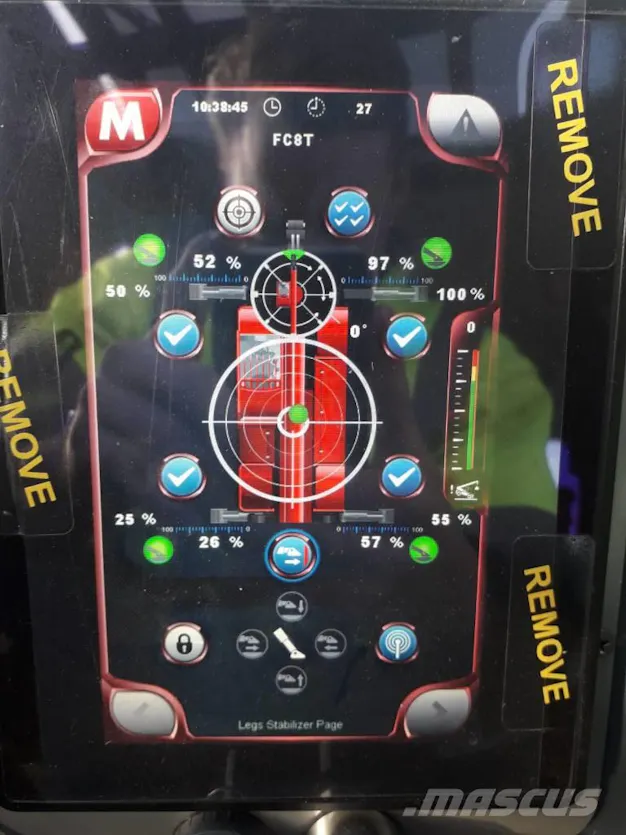

  • Advanced Technology: The equipment is augmented with cutting-edge features, including the newly integrated on-board LLD (Load Live Diagrams) software, presenting load chart information in three different formats. State-of-the-art systems such as the 'easy access system' simplify entry to


Technical Features

  • Stabilization Mechanism: Scissor-type
  • Maximum Lifting Capacity: 8,000 kg
  • Capacity at Full Height: 4,000 kg
  • Maximum Lifting Height: 26.60 m
  • Horizontal Reach: 23.10 m

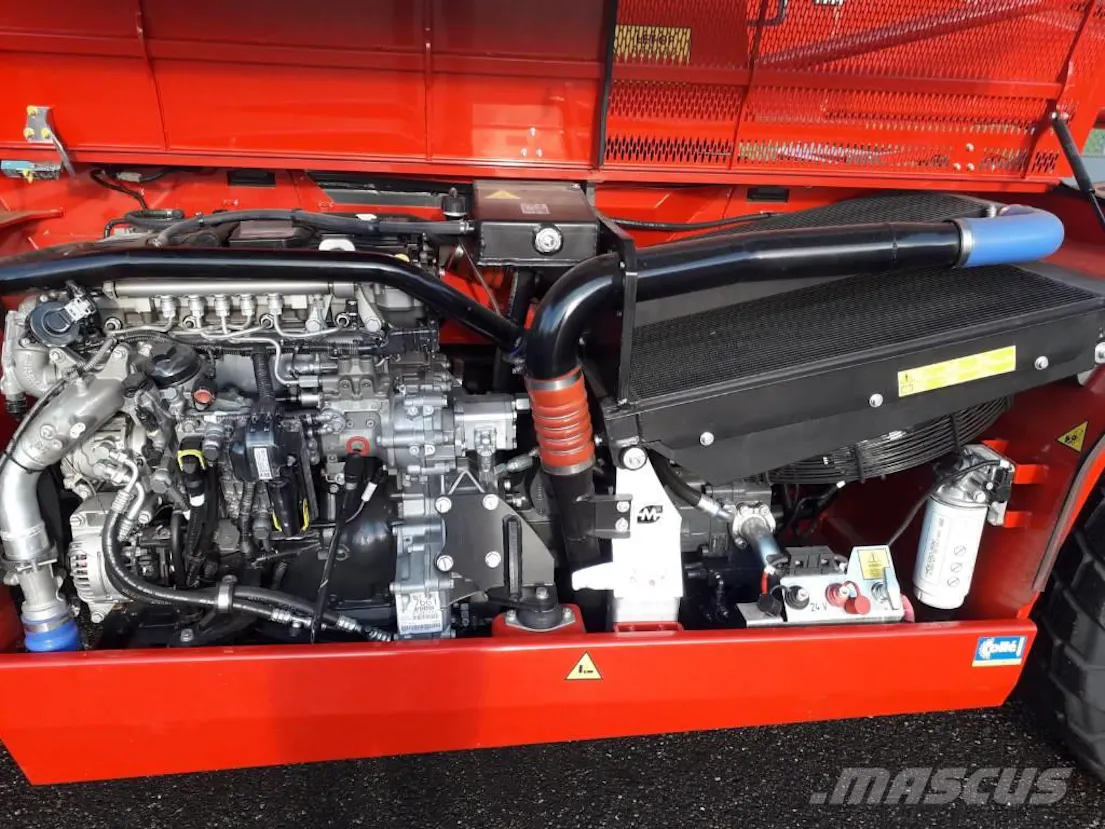

  • Engine Type: Volvo TAD 582 VE Stage V
  • Rated Engine Power: 160 kW (218 hp) at 2,300 rpm
  • Hydraulic Flow Rate: 170 liters per minute
  • Transmission Gears: 2 forward, 2 reverse
  • Hydraulic System Pressure: 350 bar (Load Sensing)
  • Overall Length: 8.25 m
  • Overall Width: 2.53 m
  • Ground Clearance: 310 mm
  • Unladen Weight: 22,300 kg
  • Travel Speed: 40 km/h
  • Rotation Capability: 360° (Continuous)
  • Standard Climate Control: Yes
  • Automatic Accessory Recognition: Yes
  • Reversible Fan Drive: Yes
Enquire Now Enquire Now Call Now
FEATURES & BENEFITS
Specifications
Enquire Now
FEATURES & BENEFITS
  • 360° rotation
  • Registered cab design
  • FOPS/ROPS
  • MCTS
  • 100% air filtration
  • Heating/air conditioning as standard
  • Four-wheel drive
  • CAN bus
  • Hydraulic system

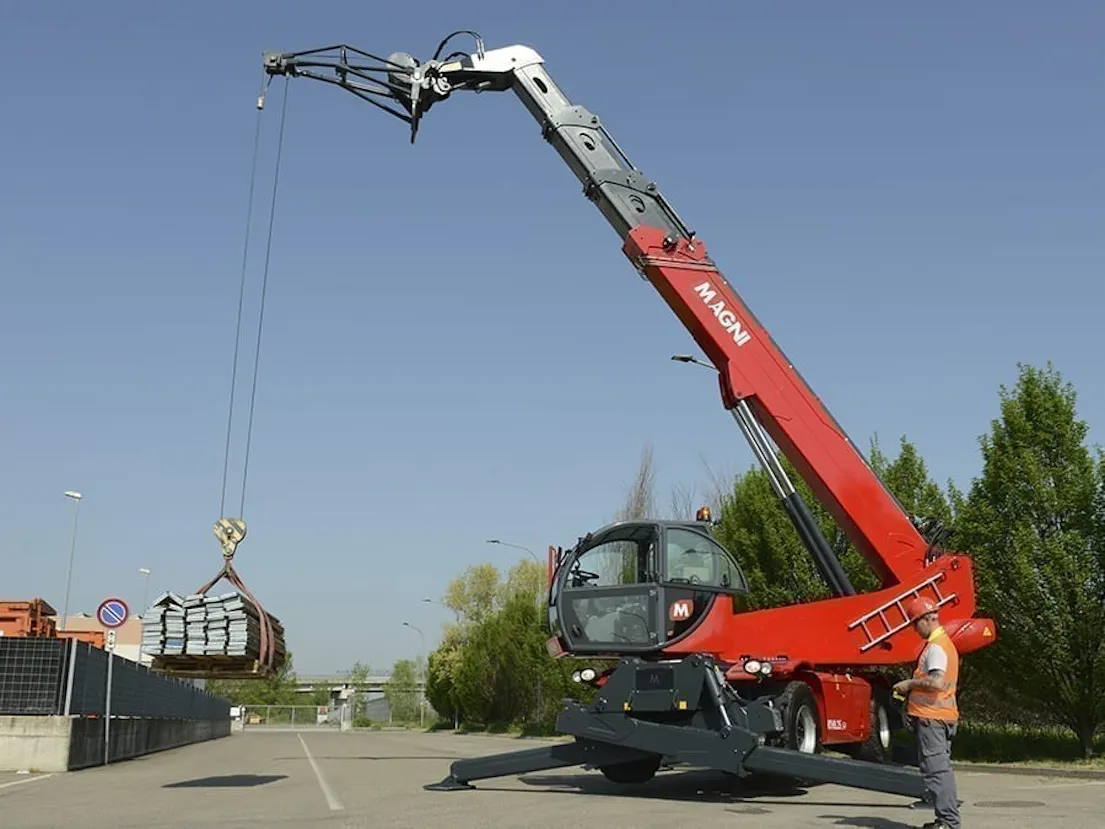

 Magni Images and Specs RTH825 magni-rth-8.25-sh-6
Specifications
Stabilisers:
scissors
Lifting capacity:
8,000 kg
Capacity at maximum height:
5,300 kg
Lifting height:
24.90 m
Reach:
21.1 m
Engine:
Volvo TAD 583 VE - Stage 3, 4 or 5 (Customers Choice)
Rated power:
175 kW - 238 Hp @2300 rpm
Number of gears:
2/2
Hydraulic system:
Load sensing 350 bar
Length:
7950 mm
Width:
2540 mm
Ground clearance:
300 mm
Unladen weight:
24,000 kg
Travel speed:
25 km/h
Rotation:
360°
Climate control as standard:
Yes
Automatic attachment recognition:
Yes
