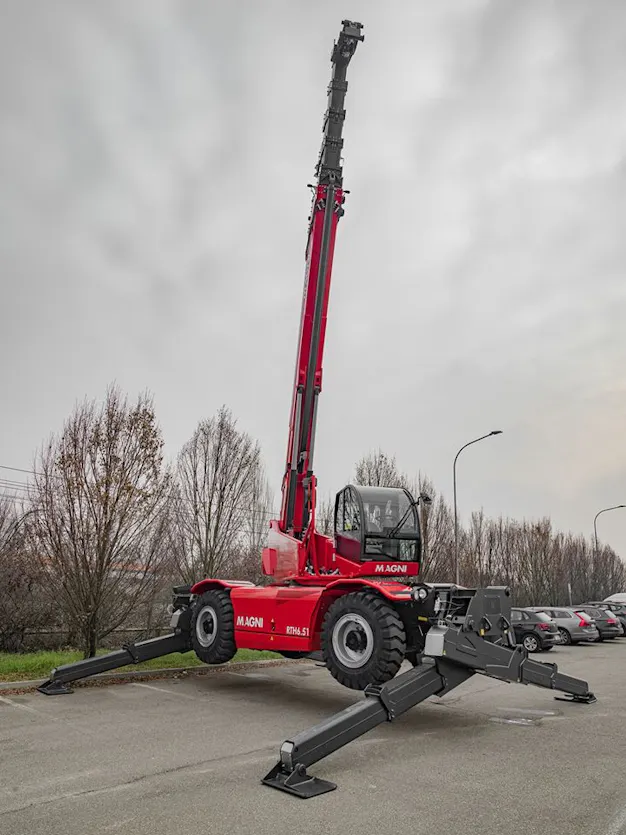

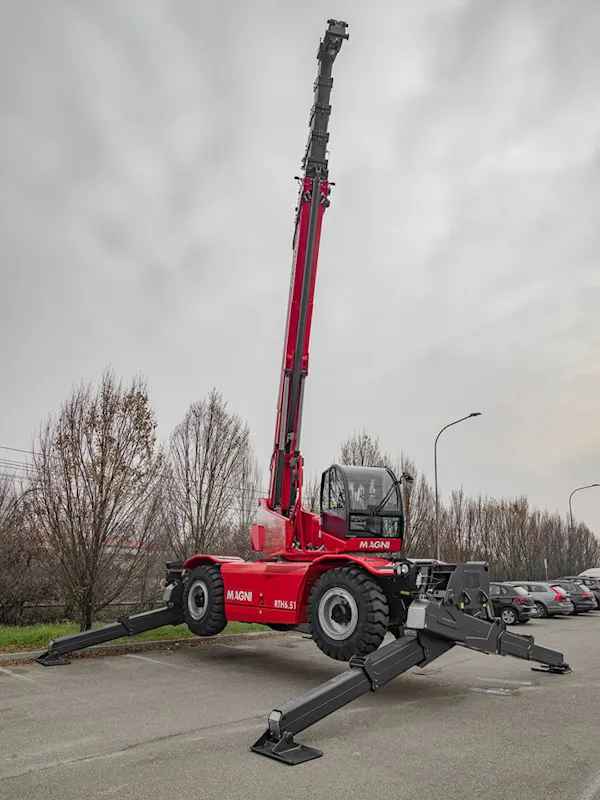

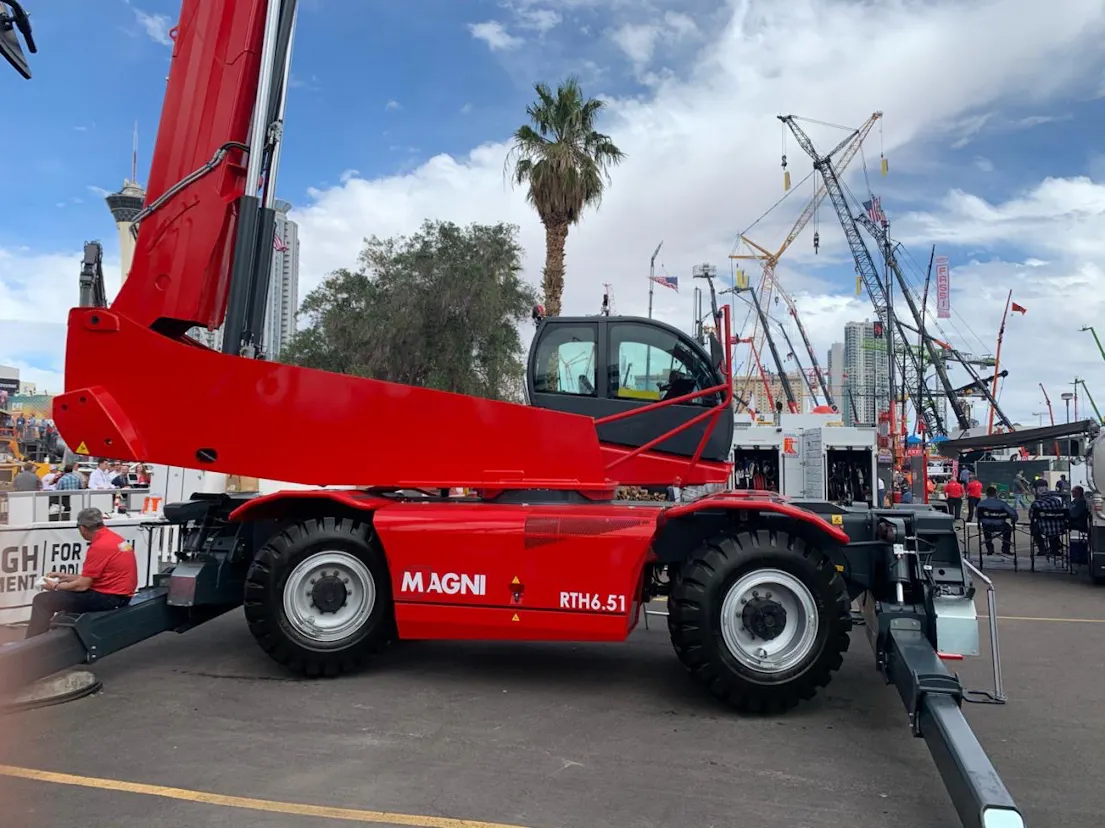

Magni RTH6.51 Rotational Telehandler

6 tonne / 51 metre

The RTH 6.51 is the highest rotating telescopic handler in the world. It achieves a lifting height of 51 m, with a maximum load capacity of 6 tonnes. It is the perfect solution for all construction or industrial sites requiring best-in-class reach and lifting capacities. The inclination corrector and scissor stabilisers with large support feet offer excellent stability under all circumstances, guaranteeing perfect ground holding on all terrain in order to ensure maximum operator safety. This model allows the same attachment to be used in two different ways: strength mode M2 and stability mode M1. The first allows very heavy loads to be lifted, but with a more limited extension. The second mode, on the other hand, allows for greater extension, but with more limited loads.


SPECIFICATIONS

  • Stabilization Method: Scissor Mechanism
  • Maximum Lifting Capacity: 6,000 kg
  • Capacity at Full Height: 2,000 kg
  • Maximum Lifting Height: 51 m
  • Horizontal Reach: 34.50 m
  • Engine Type: Volvo TAD 583 VE - Stage V
  • Rated Engine Power: 175 kW (238 hp) at 2,300 rpm
  • Transmission Gears: 2 forward, 2 reverse
  • Hydraulic System Pressure: 350 bar (Load Sensing)
  • Overall Length: 10.33 m
  • Overall Width: 2.54 m
  • Ground Clearance: 340 mm
  • Unladen Weight: 36,400 kg
  • Travel Speed: 25 km/h
  • Continuous Rotation: 360°
  • Standard Climate Control: Yes
  • Automatic Accessory Recognition: Yes
  • Reversible Fan Drive: Yes
