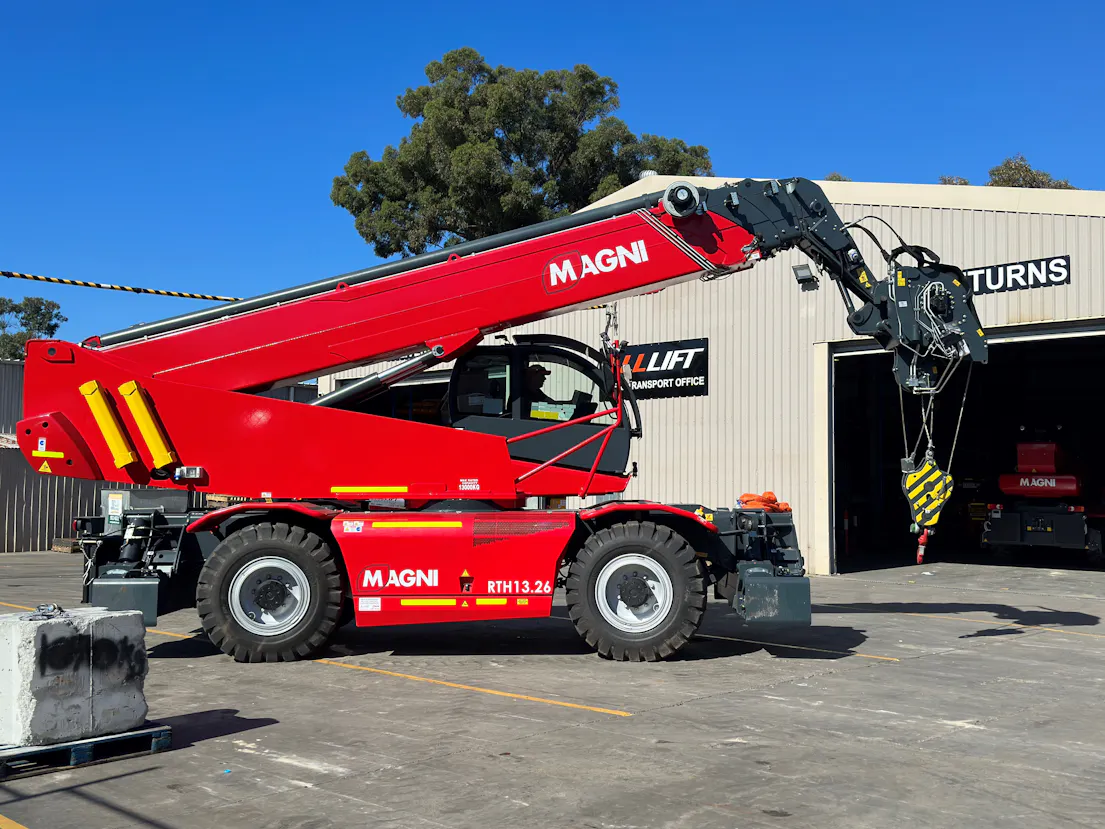

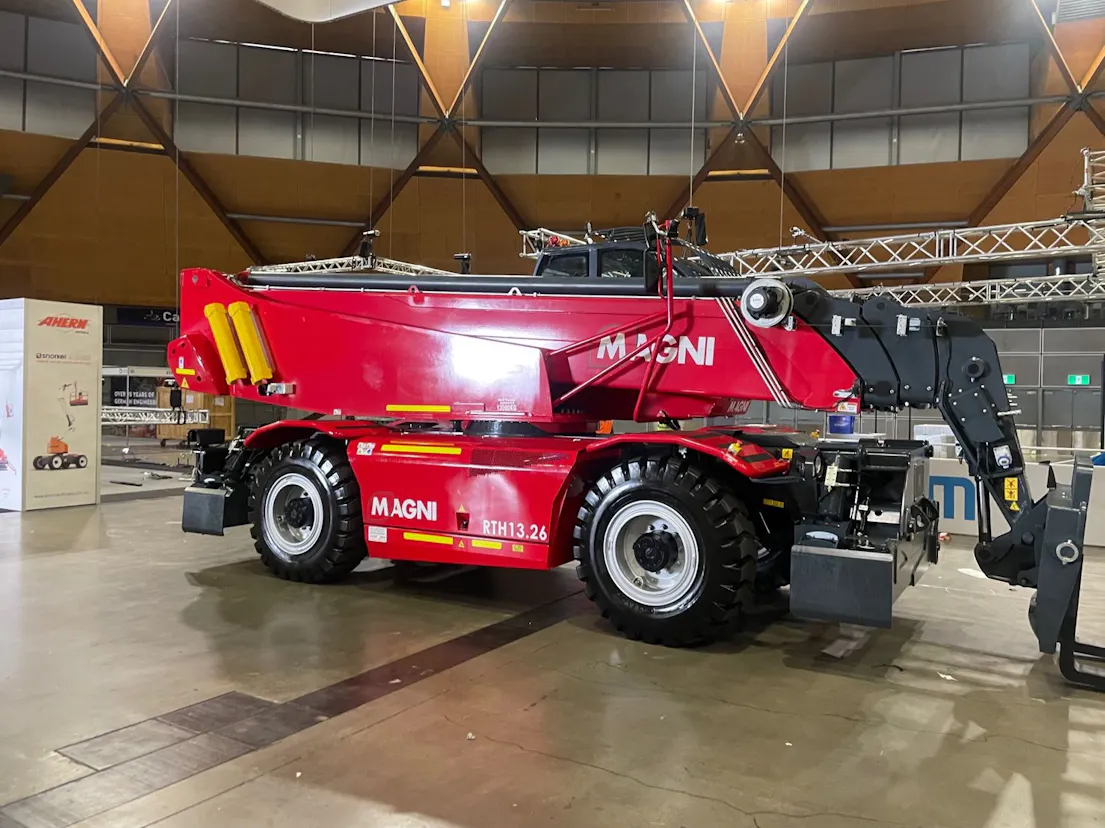

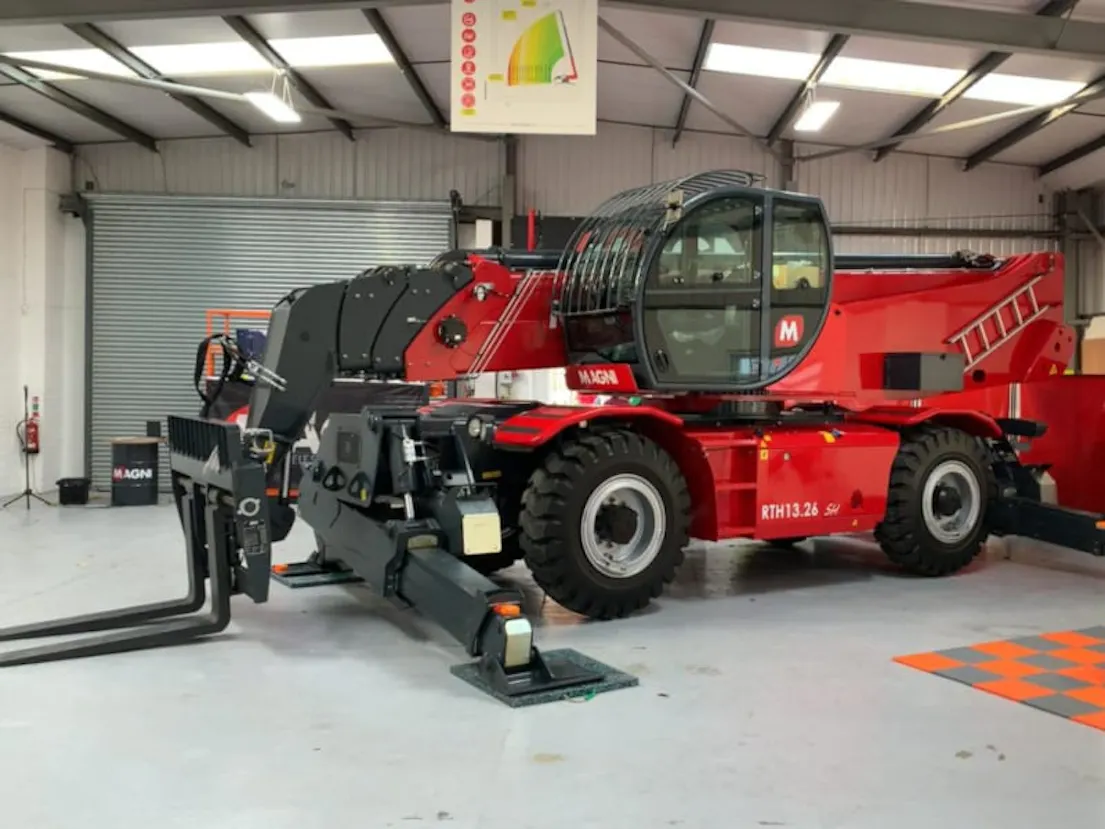

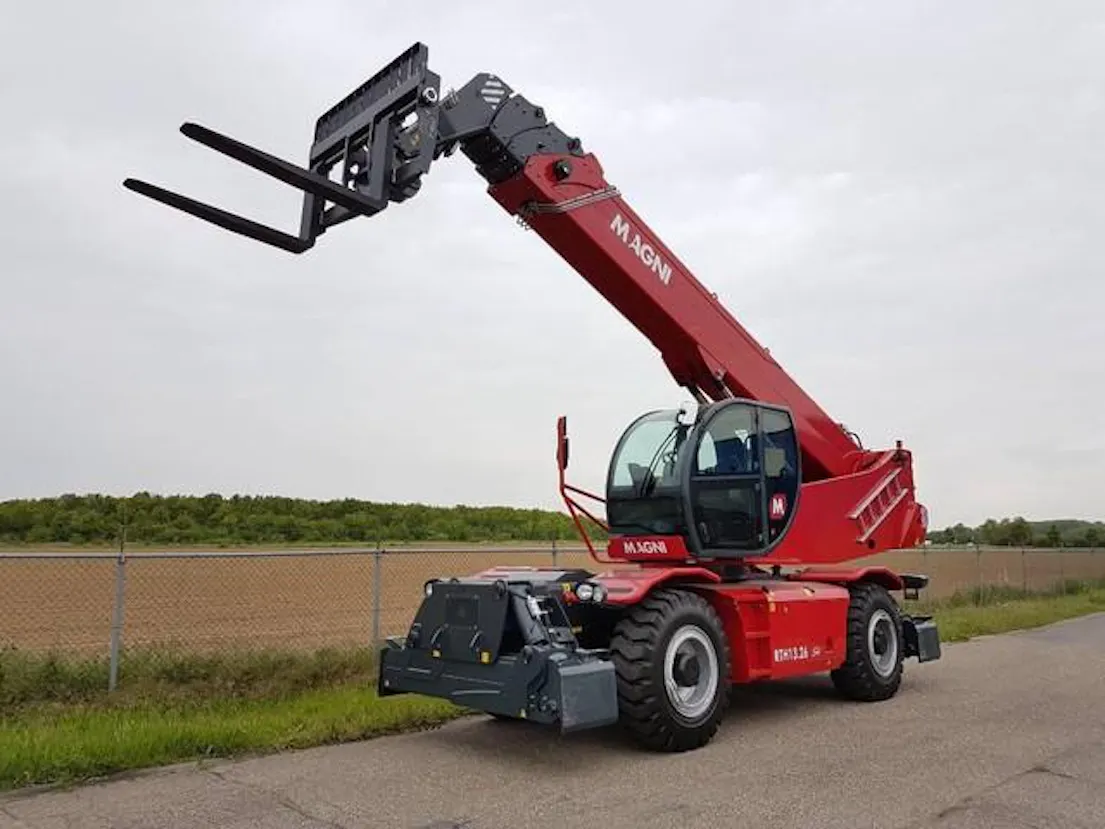

Magni RTH13.26 Rotational Telehandler

13 tonne / 26 metre

RTH 13.26 is an incredibly powerful rotating telescopic handler. It has a maximum lifting capacity of 26 m and lifting load capacity of up to 13 tonnes. It is ideal for construction or industrial sites, where heavy loads and great height requirements are common. The leveller and scissor stabilisers include very large support surfaces to ensure maximum stability in tight spaces, and greater safety to the operator and all on site, on all terrains. Even when it is only partially stabilised, the machine is designed to provide the best possible load chart on each side.

Technical Specifications:

  • Stabilizers: Utilizes a scissor mechanism.
  • Lifting Capacity: Can handle loads up to 13,000 kg.
  • Maximum Height Capacity: Capable of lifting 8,000 kg at its highest point.
  • Lifting Height: Reaches an impressive height of 26.20 meters.
  • Reach: Extends horizontally up to 21.30 meters.
  • Engine: Equipped with a Volvo TAD 583 VE - Stage V engine.
  • Rated Power: Generates 175 kW (238 hp) at 2,300 rpm.
  • Transmission: Operates with a 2-speed/2-gear system.
  • Hydraulic System: Maintains a hydraulic pressure of 350 bar with Load Sensing technology.
  • Dimensions: Measures 8.78 meters in length and 2.54 meters in width.
  • Ground Clearance: Offers a ground clearance of 340 mm.
  • Weight: Has an unladen weight of 30,600 kg.
  • Travel Speed: Achieves a maximum speed of 25 km/h.
  • Rotation: Provides a full 360-degree continuous rotation capability.
  • Standard Climate Control: Includes climate control as a standard feature.
  • Automatic Accessory Recognition: Features automatic accessory recognition.
  • Reversible Fan Drive: Comes with a reversible fan drive for improved cooling.
