Magni HTH30.12

30 tonne / 12 metre

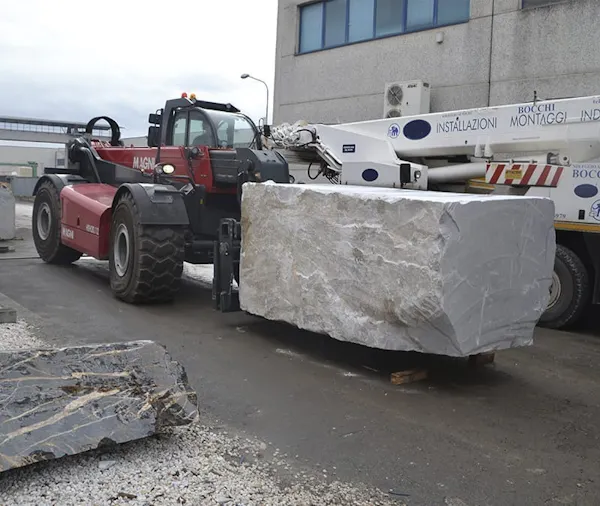

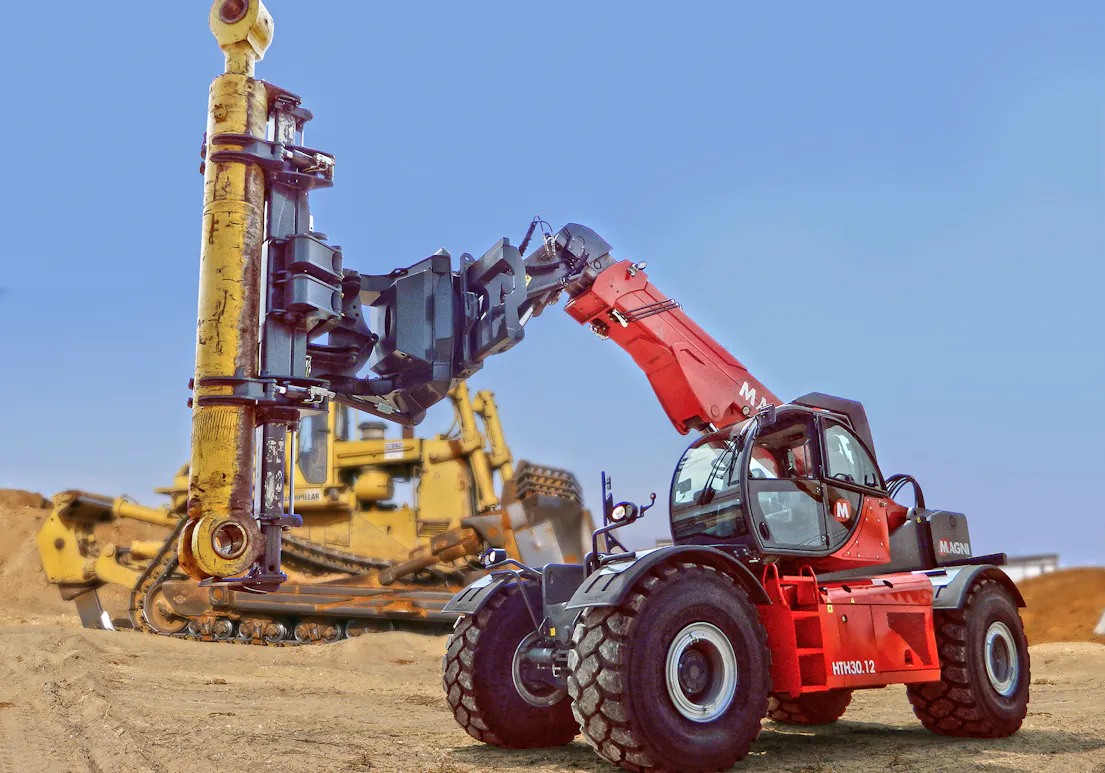

The HTH30.12 telescopic handler can lift up to 30 tonnes, and includes an RFID system to provide automatic recognition of a wide range of attachment to ensure optimal productivity. This machine is perfect for bulky and large loads, on a number of tough terrains thanks to its superior stability, four wheel drive system and three manoeuvring modes for high ground clearance.

With the 360° visibility of Magni’s patented cab allows greater operator control and visibility, aiding in improve safety during more intricate movement requirements. It is a perfect telehandler choice for mining, rail, and the replacement for hammers and moving conveyor belts.


Enquire Now Call Now
FEATURES & BENEFITS
Specifications
Enquire Now
FEATURES & BENEFITS
  • Registered cab design
  • FOPS/ROPS
  • MCTS
  • 100% air filtration
  • Heating/air conditioning as standard
  • Cup holder
  • R.F.ID
  • Four-wheel drive
  • Self Leveling
  • CAN bus
  • Hydraulic system
  • Best lifting performance
  • Gradeability 34°-58°
 Magni Images and Specs HTH3012 14-3012-pin-hook
Specifications
Lifting capacity:
30,000 kg
Capacity at maximum height:
18,000 kg
Lifting height:
11.72 m
Reach:
6.86 m
Engine:
Volvo TAD 883 VE - Stage 3,4 or 5 (Customers Choice)
Rated power:
235 kW - 320 Hp @ 2200 rpm
Number of gears:
3/3
Hydraulic system:
Load Sensing 350 bar
Length:
7950 mm
Width:
3000 mm
Ground clearance:
550 mm
Unladen weight:
40,900 kg
Travel speed:
25 km/h
Climate control as standard:
Yes
Automatic attachment recognition:
Yes
