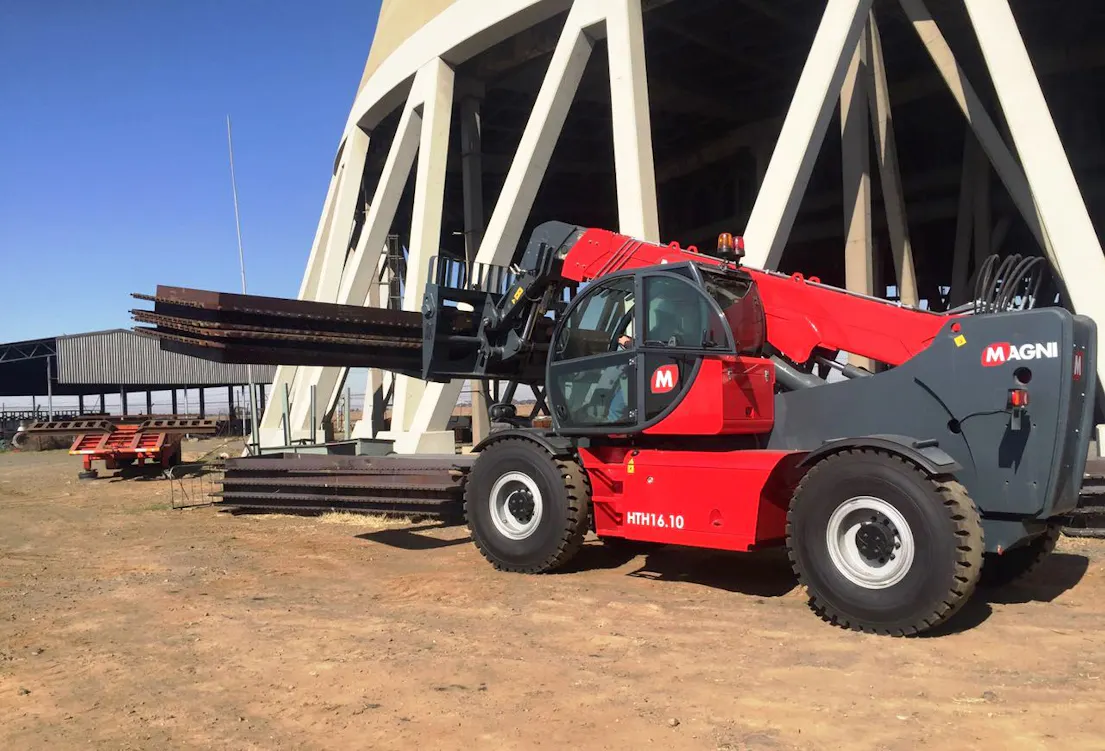

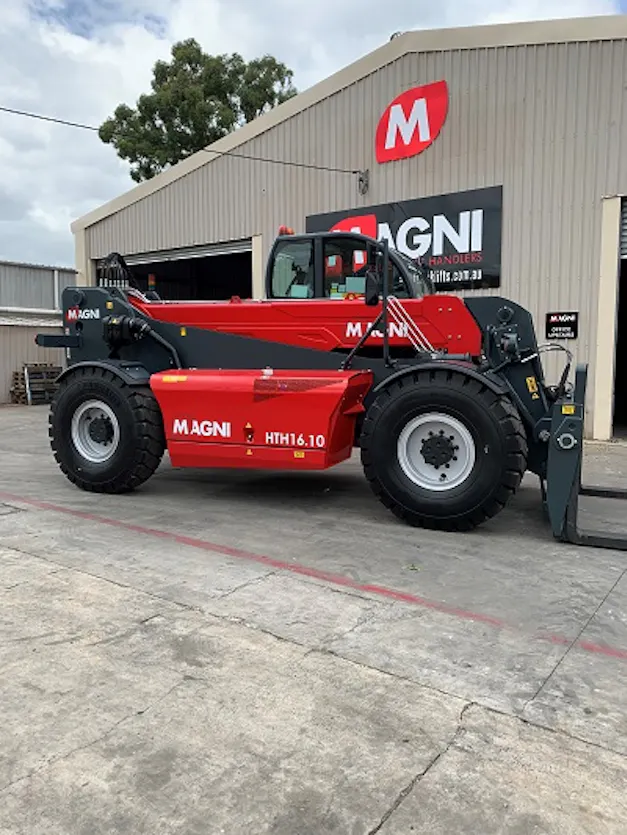

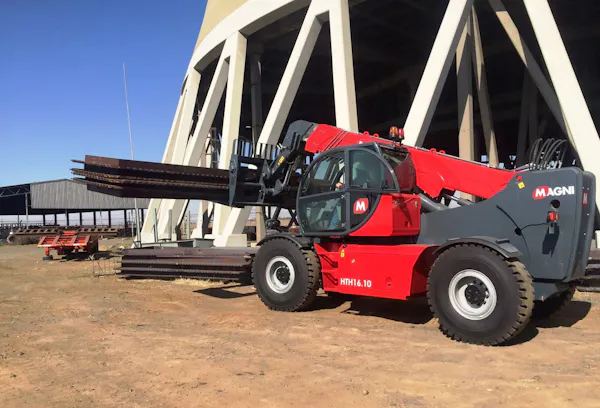

Magni HTH16.10 Heavy Duty Telehandler

16 tonne / 10 metre

The HTH 16.10 telescopic handler is ideal for moving large, bulky loads in complete safety. Able to lift to 16 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler can meet a wide range of applications in heavy industry. Its four-wheel drive system, three manoeuvring modes and high ground clearance makes it highly manoeuvrable on all terrains.


TECHNICAL FEATURES

  • Lifting capacity: 16,000 kg
  • Capacity at maximum height: 9,000 kg
  • Lifting height: 9.50m
  • Reach: 5.10m
  • Engine: Volvo TAD 582 VE - Stage 3 or 5
  • Rated power: 160 kW (218 hp) 2200 rpm
  • Number of gears: 2/2
  • Hydraulic system: 350 bar (Load Sensing)
  • Length: 6.38 m
  • Width: 2.5m
  • Ground clearance: 440 mm
  • Unladen weight: 20,500 kg
  • Travel speed: 25 km/h
  • Climate control as standard: Yes
  • Automatic accessory recognition: Yes
  • Reversable fan drive: Yes
