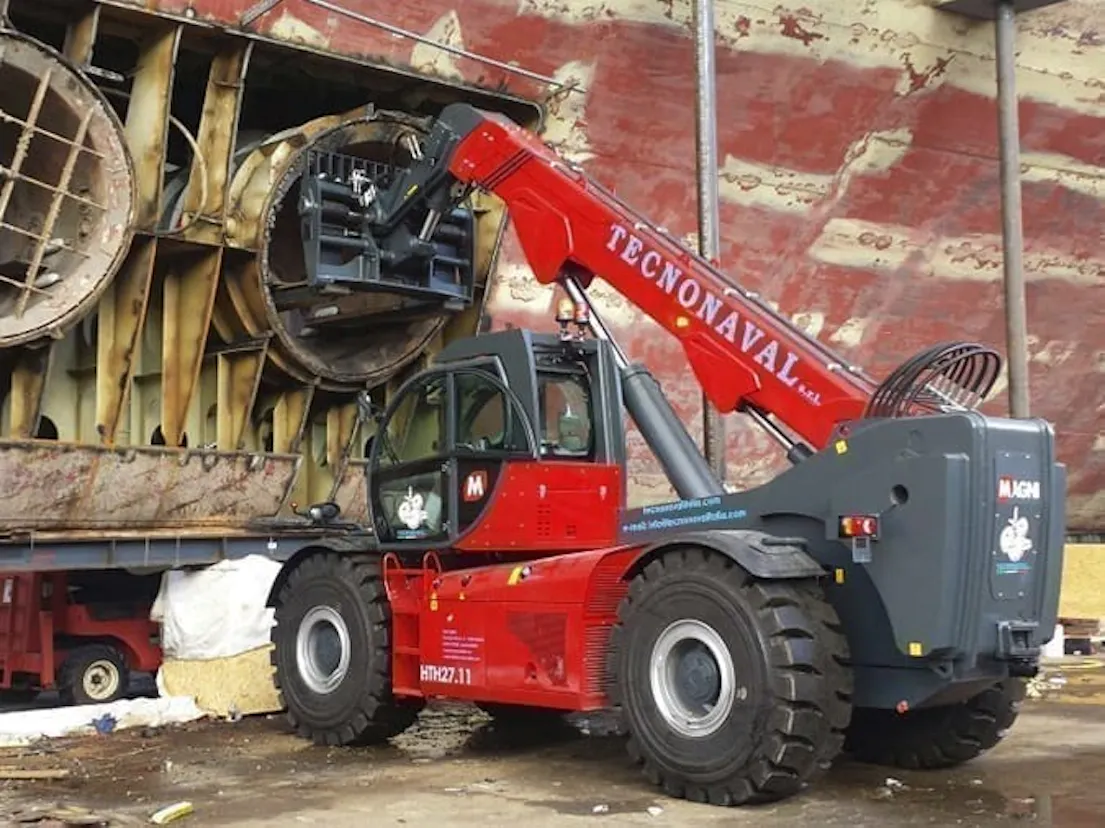

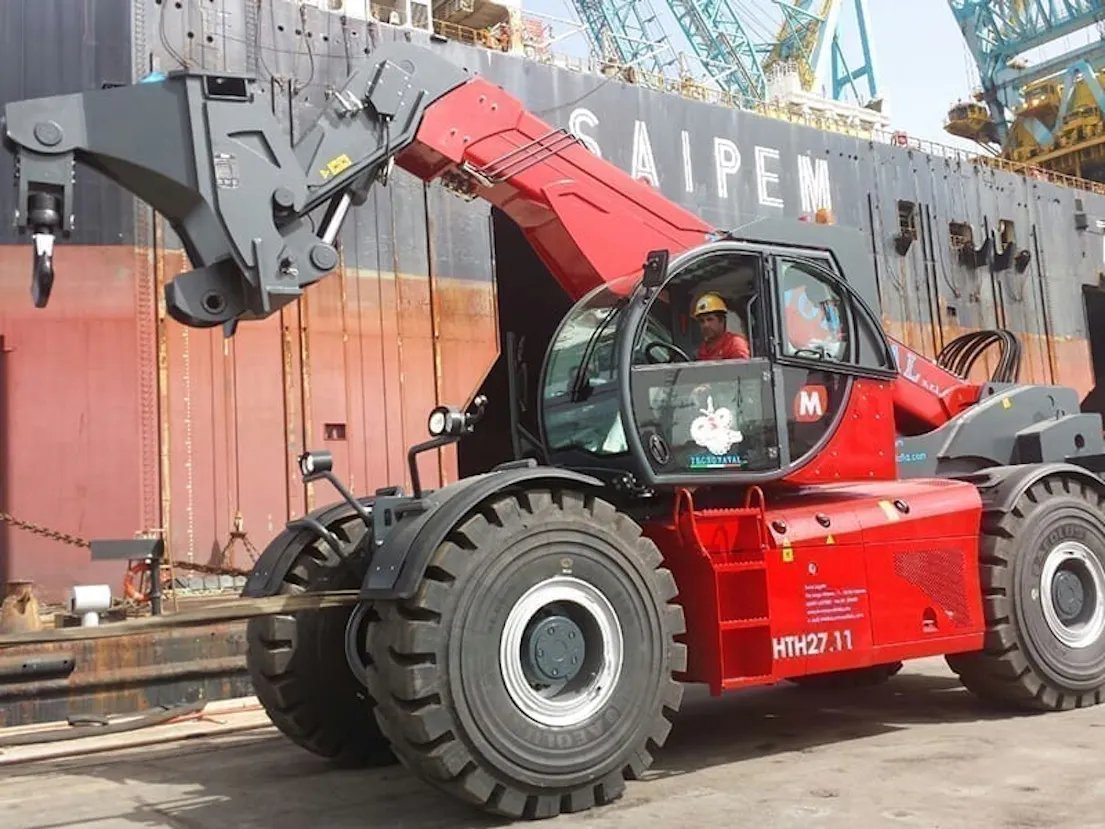

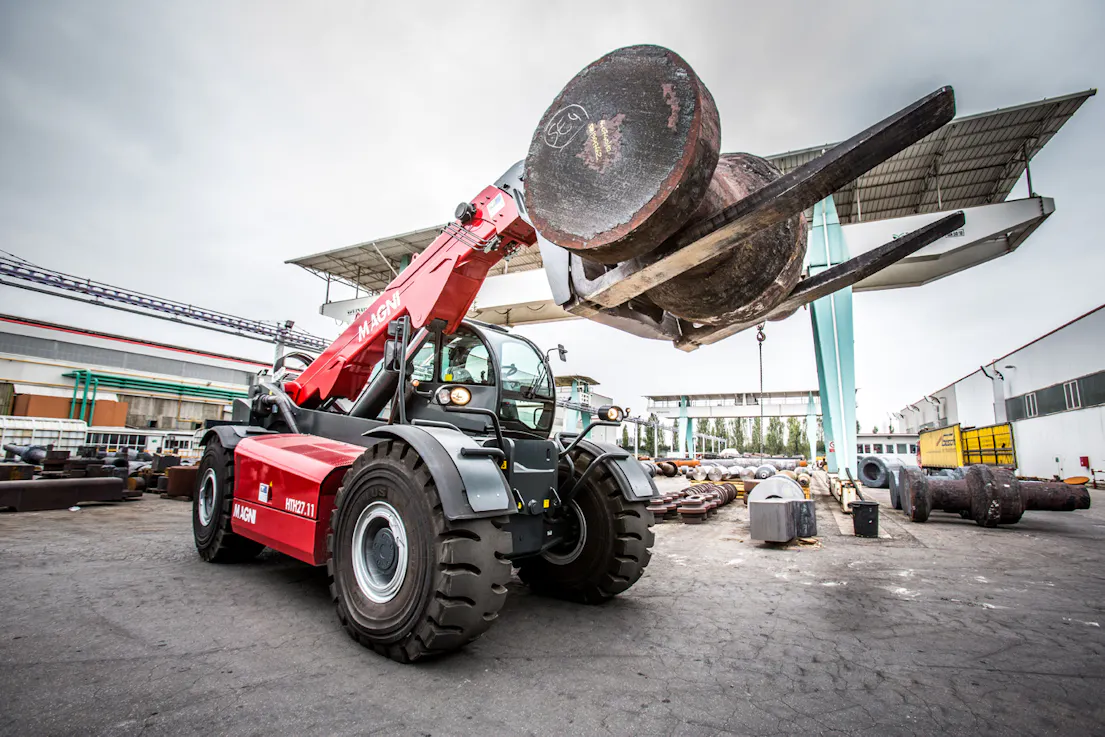

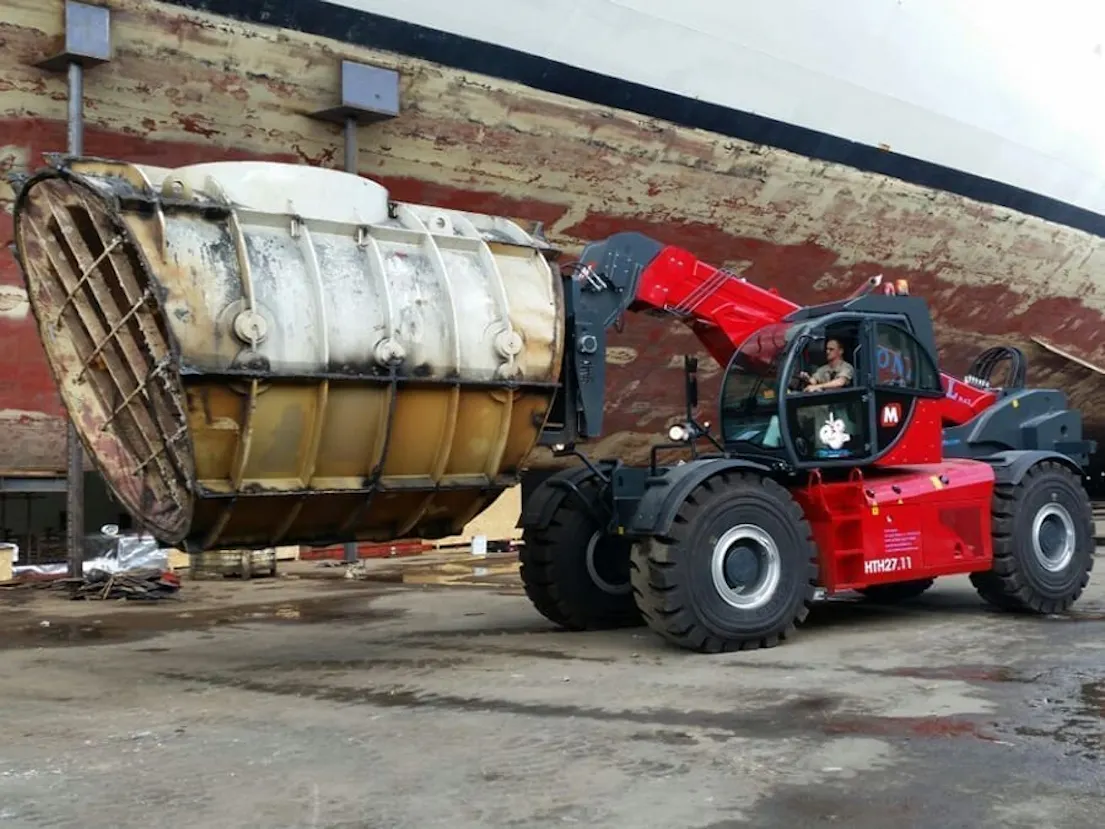

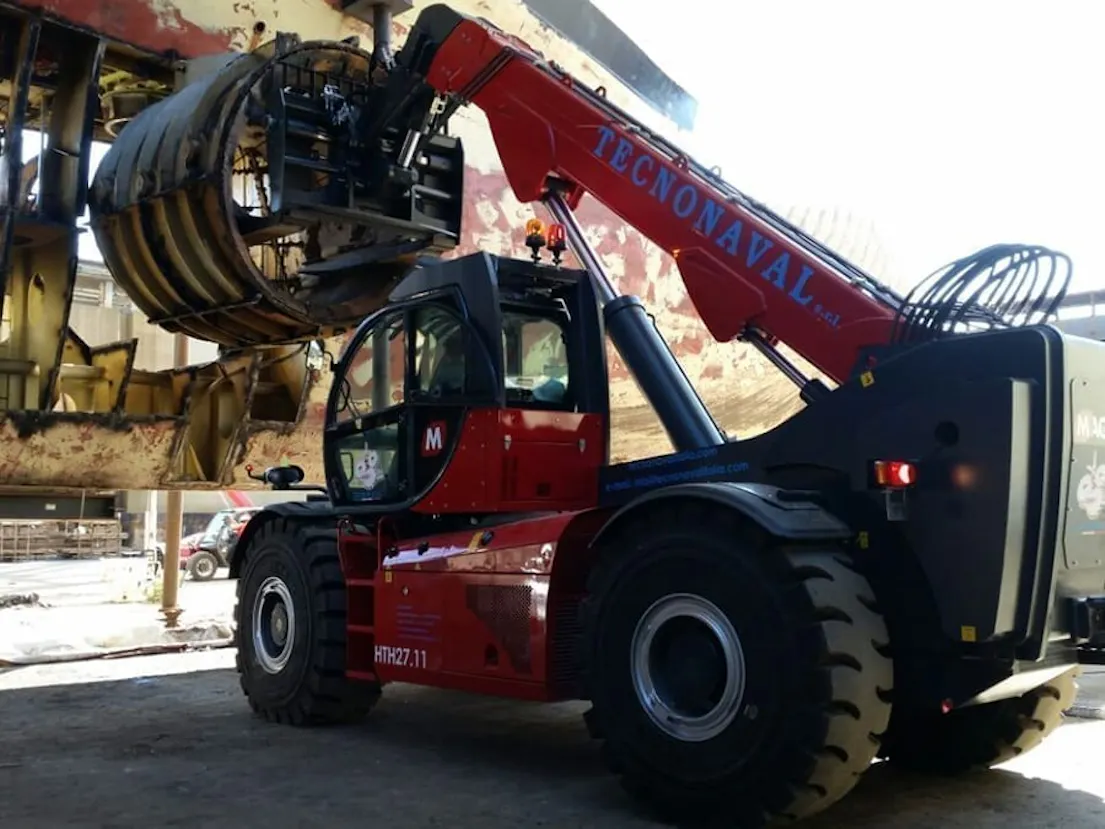

Magni HTH27.11 Heavy Duty Telehandler

27 tonne / 11 metre

The HTH 27.11 telescopic handler is ideal for moving large, bulky loads in complete safety. Able to lift to 27 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler can meet a wide range of applications in heavy industry and mining. Its four-wheel drive system, three manoeuvring modes and high ground clearance makes it highly manoeuvrable on all terrains.

The comfort and 360° visibility offered by Magni’s patented cab allow the operator to work under the optimum conditions and help improve safety during delicate movements. It can move large blocks of marble or stone in quarries, or handle materials such as steel bars, rails, or other metal structures. It is the ideal machine for maintenance of mining equipment, such as changing rails, replacing hammers or moving conveyor belts.


TECHNICAL FEATURES

  • Lifting capacity: 27,000 kg
  • Capacity at maximum height: 14,500 kg
  • Lifting height: 10.85m
  • Reach: 6.60m
  • Engine: Volvo TAD 583 VE - Stage 3 or 5
  • Rated power: 175 kW (238 hp) 2300 rpm
  • Number of gears: 2/2
  • Hydraulic system: 350 bar (Load Sensing)
  • Length: 7.55m
  • Width: 2.98m
  • Ground clearance: 530 mm
  • Unladen weight: 35,500 kg
  • Travel speed: 25 km/h
  • Climate control as standard: Yes
  • Automatic accessory recognition: Yes
  • Reversable fan drive: Yes
