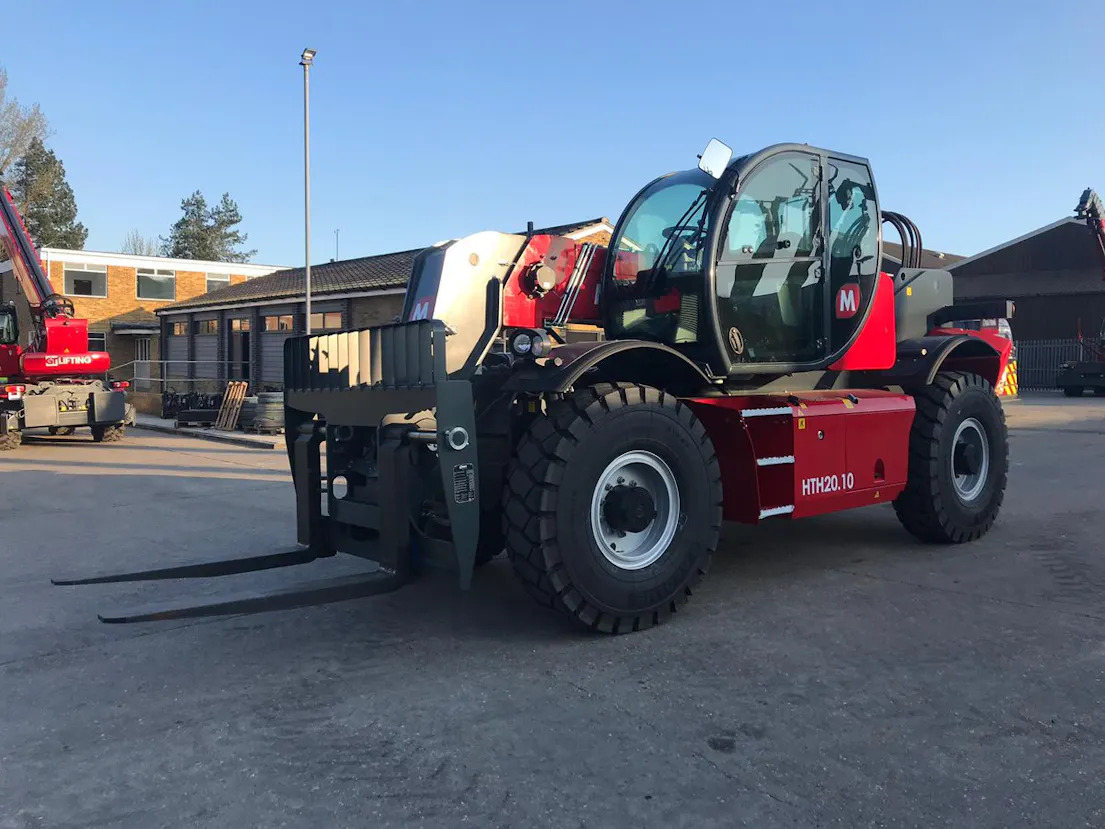

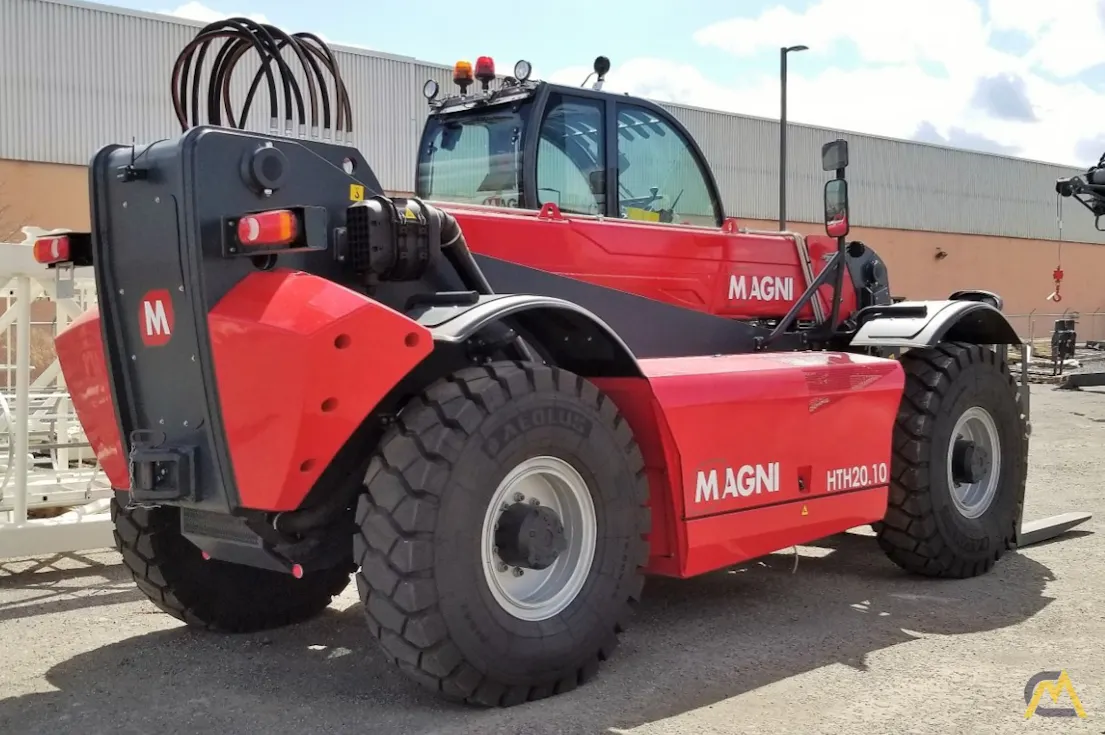

Magni HTH20.10 Heavy Duty Telehandler

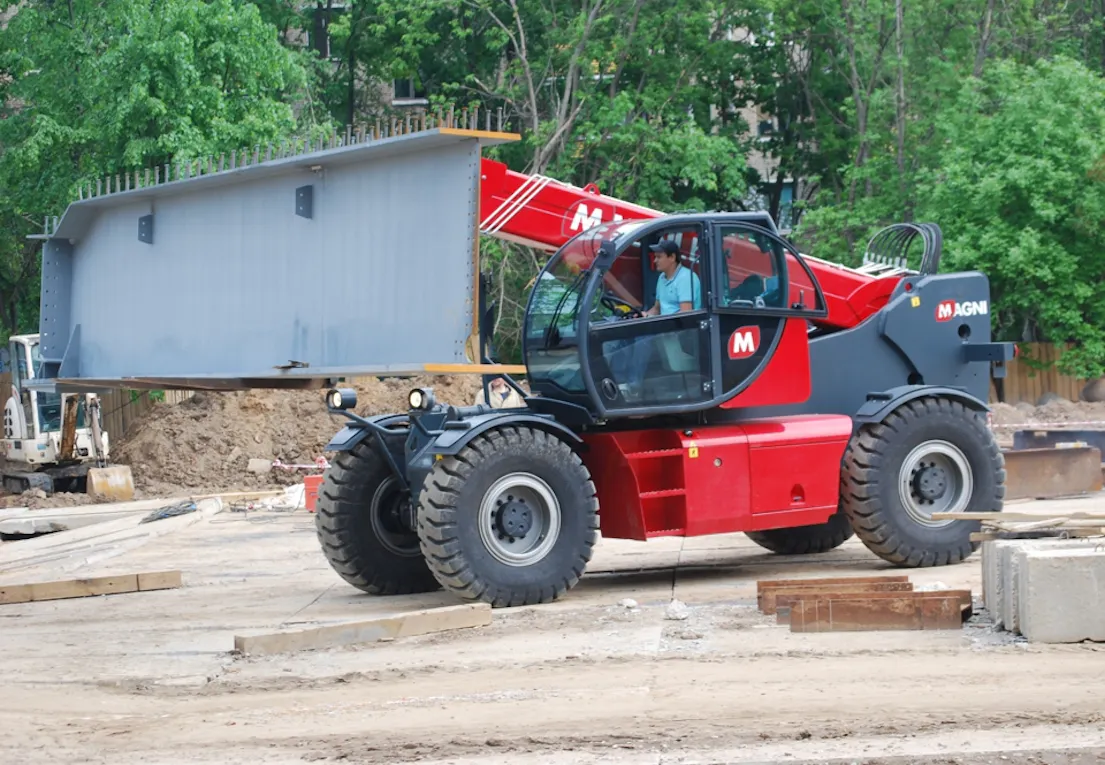

The HTH 20.10 telescopic handler is ideal for moving large, bulky loads in complete safety. Able to lift to 20 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler can meet a wide range of applications in heavy industry. Its four-wheel drive system, three manoeuvring modes and high ground clearance makes it highly manoeuvrable on all terrains.

To discover the machine in 3D, click the link below:

https://my.matterport.com/show/?m=cTrBYVFCW74

TECHNICAL FEATURES

• Lifting capacity: 19,999 kg


• Capacity at maximum height: 15,000 kg


• Lifting height: 9.80 m


• Reach: 5.10 m


• Engine: Volvo TAD 582 VE - Stage 3 or 5


• Rated power: 160 kW (218 hp) 2.300 rpm


• Number of gears: 2/2


• Hydraulic system: 350 bar (Load Sensing)


• Length: 6.13m


• Width: 2.5m


• Ground clearance: 400 mm


• Unladen weight: 20,500 kg


• Travel speed: 25 km/h

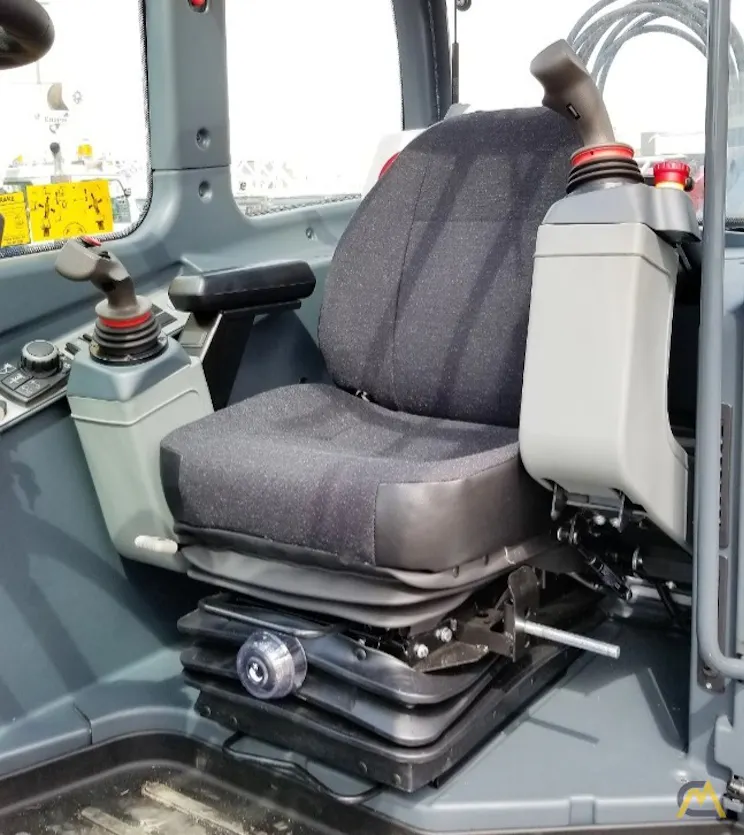

• Climate control as standard: Yes


• Automatic accessory recognition: Yes


• Reversable fan drive: Yes
