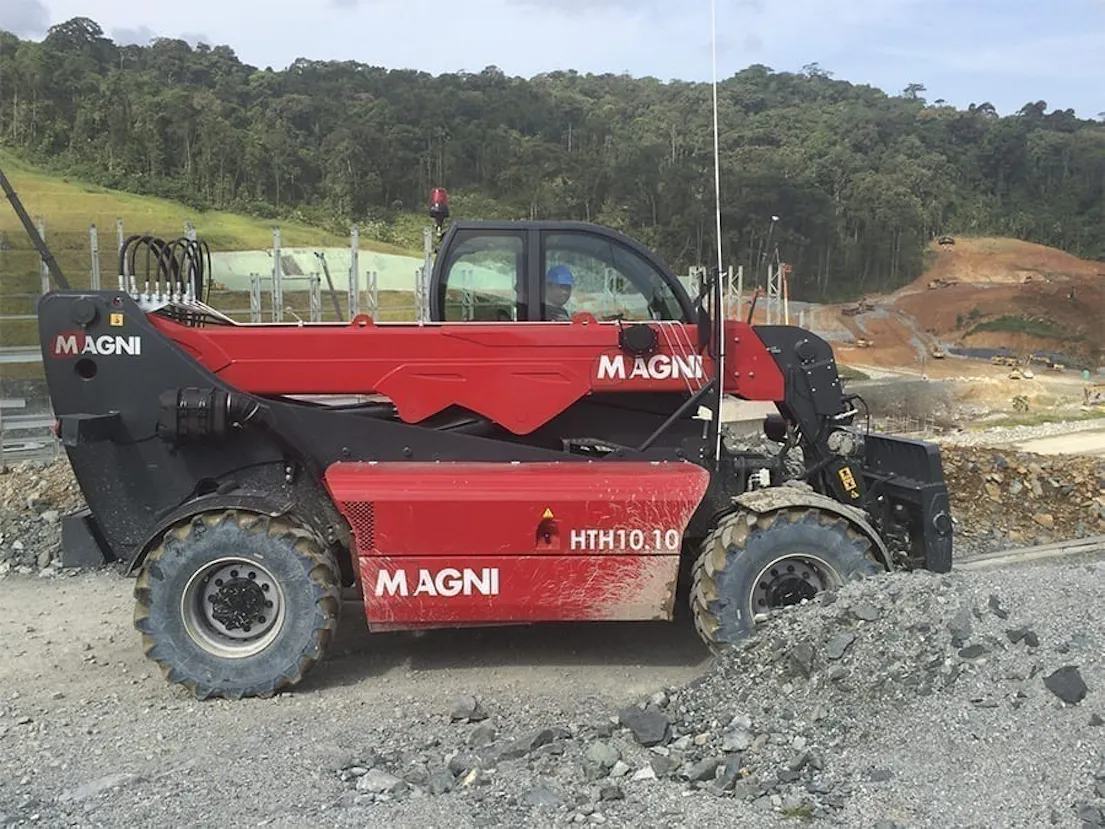

Magni HTH10.10 Heavy Duty Telehandler

The HTH10.10 telescopic handler is a reliable choice for safely handling large and hefty loads. With a substantial lifting capacity of up to 10 tonnes, it offers outstanding versatility through compatibility with a diverse range of accessories. Equipped with an RFID system for seamless automatic recognition of various attachments, this telescopic handler is well-equipped to tackle a wide spectrum of applications within heavy industry.

Specifications

• Lifting Capacity: 10,000 kg


• Capacity at Maximum Height: 7,000 kg


• Maximum Lifting Height: 9.52 m


• Horizontal Reach: 5.05 m


• Engine: Deutz TCD 3.6 L4 - Stage V


• Rated Engine Power: 100 kW (134 hp) at 2,200 rpm


• Number of Gears: 2 forward, 2 reverse


• Hydraulic System Pressure: 350 bar (Load Sensing)


• Overall Length: 5.66 m


• Overall Width: 2.55 m


• Ground Clearance: 370 mm


• Unladen Weight: 13,500 kg


• Travel Speed: 40 km/h


• Standard Climate Control: Yes


• Automatic Accessory Recognition: Yes


• Reversible Fan Drive: Yes
