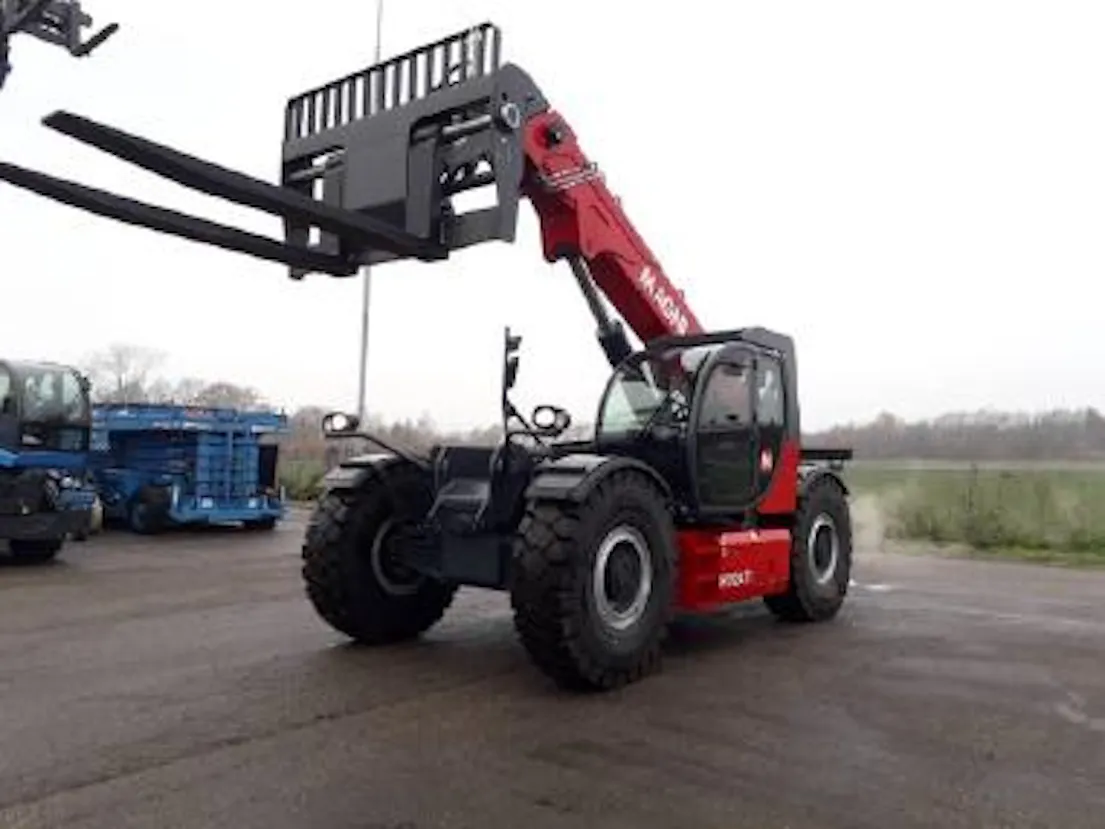

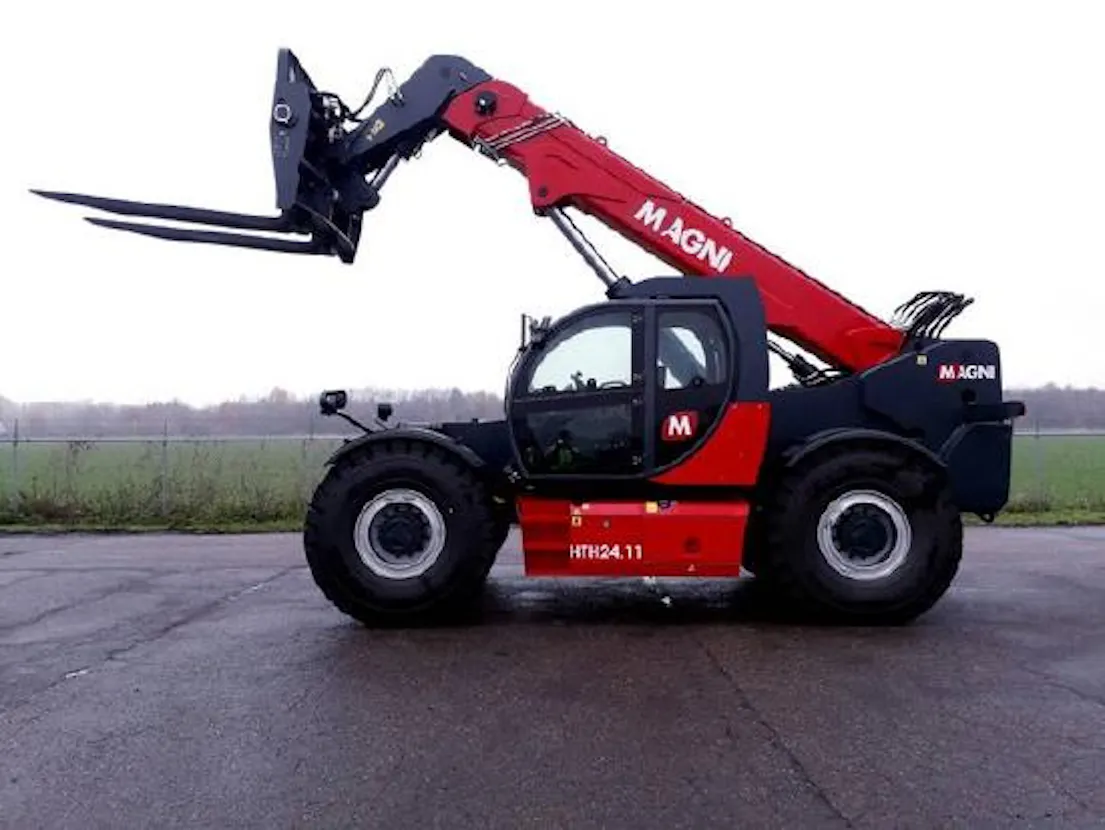

Magni HTH24.11 Heavy Duty Telehandler

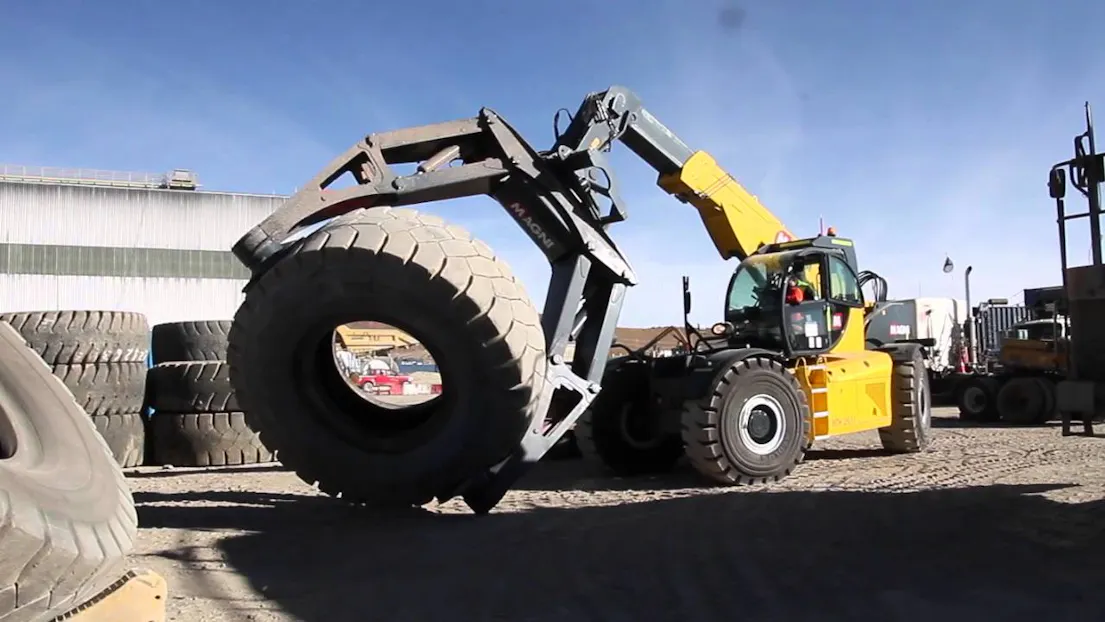

The HTH 24.11 telescopic handler offers a secure solution for handling large and bulky loads. With a lifting capacity of up to 24 tonnes and compatibility with various attachments, it boasts exceptional versatility. It comes equipped with an RFID system that automatically recognizes different attachments, making it suitable for a wide range of heavy industry and mining applications. Thanks to its four-wheel drive system, three manoeuvring modes, and generous ground clearance, it excels in manoeuvrability across diverse terrains. The patented cab by Magni ensures operator comfort and provides a 360° field of vision, enhancing safety during intricate operations.

TECHNICAL FEATURES

• Lifting capacity: 24,000 kg


• Capacity at maximum height: 14,000 kg


• Lifting height: 10.50m


• Reach: 5.65m


• Engine: Volvo TAD 583 VE - Stage 3 or 5


• Rated power: 175 kW (238 hp) 2300 rpm


• Number of gears: 2/2


• Hydraulic system: 350 bar (Load Sensing)


• Length: 6.92 m


• Width: 2.96m


• Ground clearance: 430 mm


• Unladen weight: 29,700 kg


• Travel speed: 25 km/h


• Climate control as standard: Yes


• Automatic accessory recognition: Yes


• Reversable fan drive: Yes
