Magni TH4.5-19P - Tier 1 Ready!!


The TH4.5.19-P is a fixed telescopic handler especially suitable for demanding light industrial sites. Powered by a Deutz 74 kW engine, it can safely reach a height of 18.8m on rough terrain thanks to its 4-wheel drive and the automatic levelling system, which acts on both the wheels and stabilisers.

The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts.

This model is equipped with the levelling system on tyres allowing the operator to adjust the inclination of the machine. Thus, the entire load diagram is available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.

Some features:

New enhanced and unparalleled lifting capacities
Completely redesigned machine management software
Greatly improved dynamic load chart visualisation
Fully revised hydraulic and electrical systems to facilitate After sales service
Lowered design for greater stability
Available with Deutz Stage V / Stage IIIA engines
Standard pivoting stabilisers for optimised lifting capacities up to 4.5 tonnes

Stabilisers Pivoting
Lifting capacity 4500kg
Capacity at maximum height 3000kg
Lifting height 18.8m
Reach 14.2m

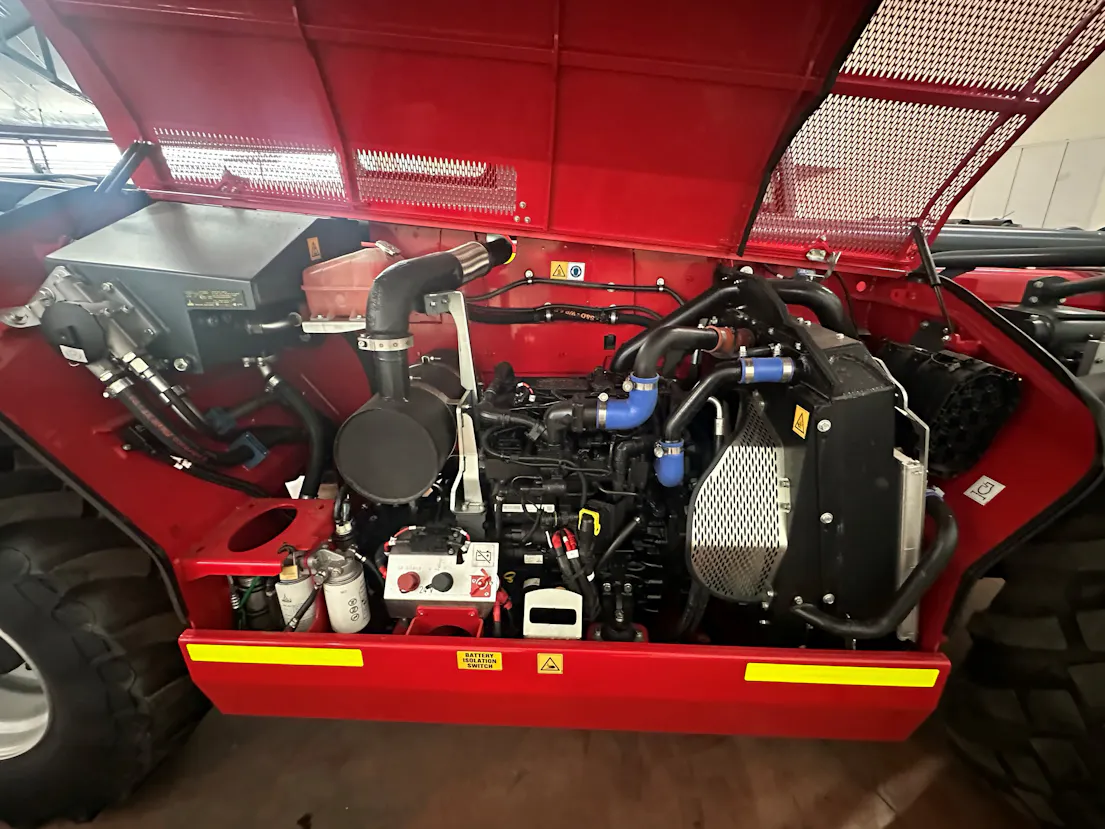

Engine Deutz TCD 3,6 L4 Stage3
Rated power 74.4kW (101.20 hp) 2200 rpm
Number of gears 2/2
Hydraulic system 350 bar (Load Sensing)
Length 6.40m
Width 2.53m
Ground clearance 410mm
Unladen weight 12,800kg
Travel speed 25km/h
Climate control as standard Yes
Automatic attachment recognition Yes
