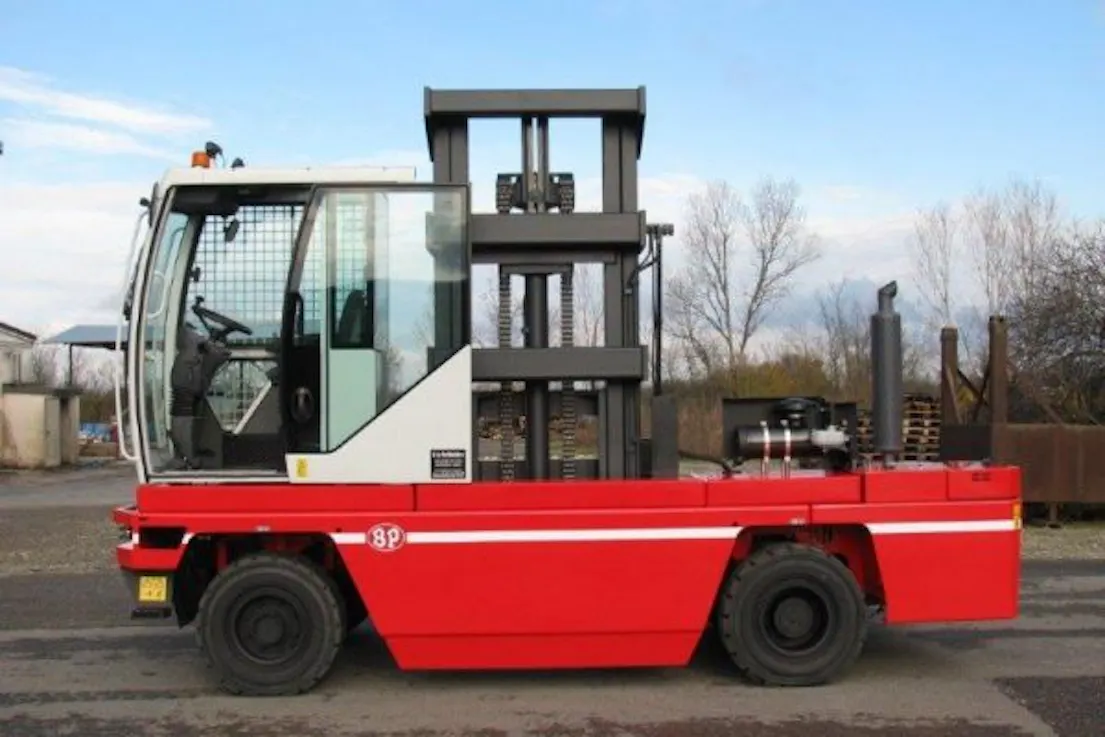

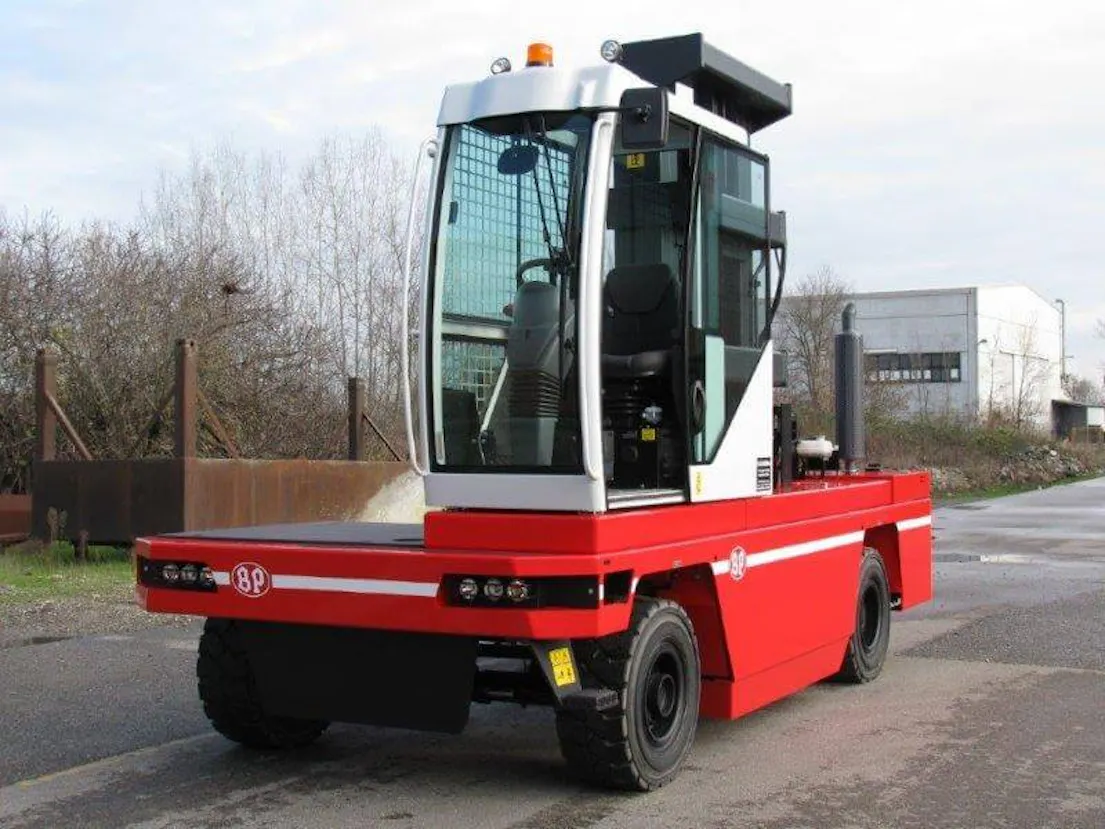

SHD80 - Side Loader

BP Side Loaders – Diesel & LPG

Working with the ergonomic BP SHD80 is easy and safe. The gear lever in the cabin controls allows the operator to change from high speed to low speed and to overcome steep gradients easily. Its turbo diesel engine is powerful but suitable for indoor and outdoor work site environments, in all weather conditions. It is perfect for heavy and bulky loads, even at high speed, safely. This machine is designed for safe and comfortable access to installed components. Its efficient diagnostic system enables easy identification of possible faults.


Enquire Now Call Now
FEATURES & BENEFITS
Specifications
Enquire Now
FEATURES & BENEFITS
  • Turbo diesel engine (also LPG version)
  • Pneumatic tires
  • Traction is Electronic Hydrostatic with a variable capacity pump and motor. The Electronic Hydrostatic Transmission has a microprocessor located in the cab that controls the inching function, the starting of the machine and the acceleration curve. The control of few parameters provides for a very high number of possible settings. This simple but very flexible program is able to customise the machine for all operation conditions to obtain best speed performances (forwards and backwards) and a perfectly safe transport of the load

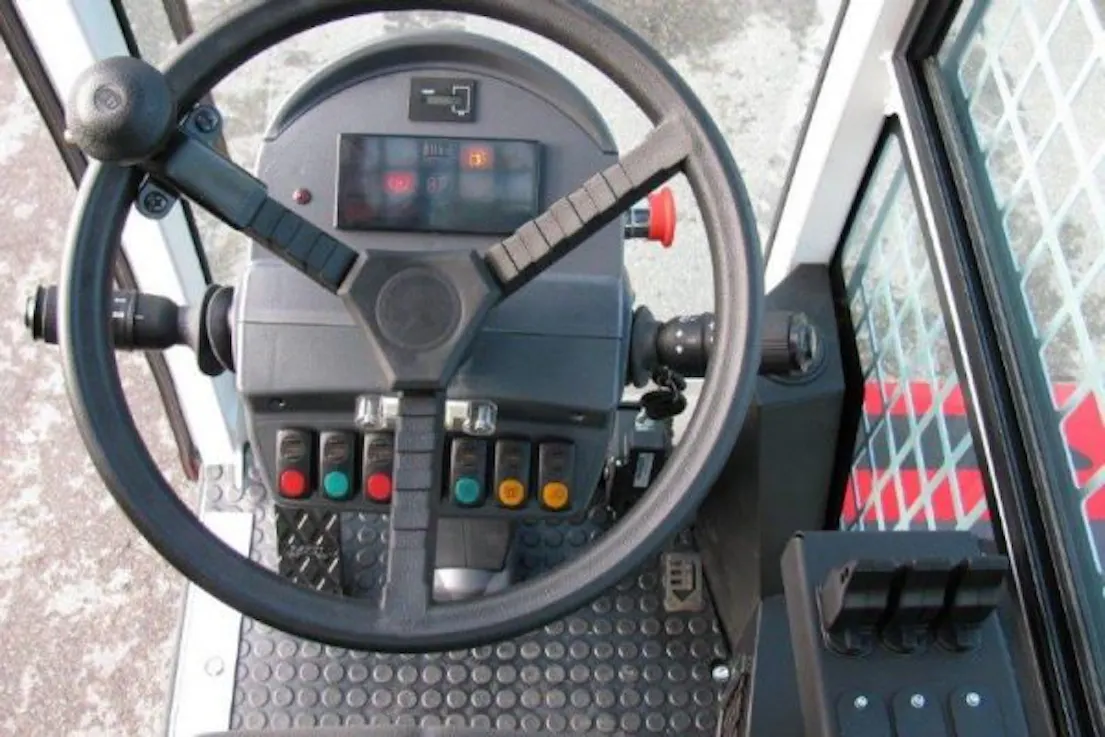

  • The gear lever in the cabin controls allows the operator to change from high speed to low speed to overcome steep gradients easily
  • Two front steering wheels with power steering (servo assisted)
  • The hydrostatic motor is plugged directly into the differential system providing for maximum power reliably transmitted to the rear axle and steering system
  • Special steel profiles of lifting mast with traverse guide rollers mounted on high resistance bearings
  • Complete road circulating lighting
  • Equipped with all mandatory Safety Devices and Systems as specified by EU directive 2006/42/EC (Machinery Directive) and 2004/108/EC (Electromagnetic Compatibility)
  • Supplied with Usage and Maintenance Instruction Book, Spare Parts Catalogue and Certificate of Conformity to EU directive 2006/42/EC (Machinery Directive) and 2004/108/EC (Electromagnetic Compatibility)

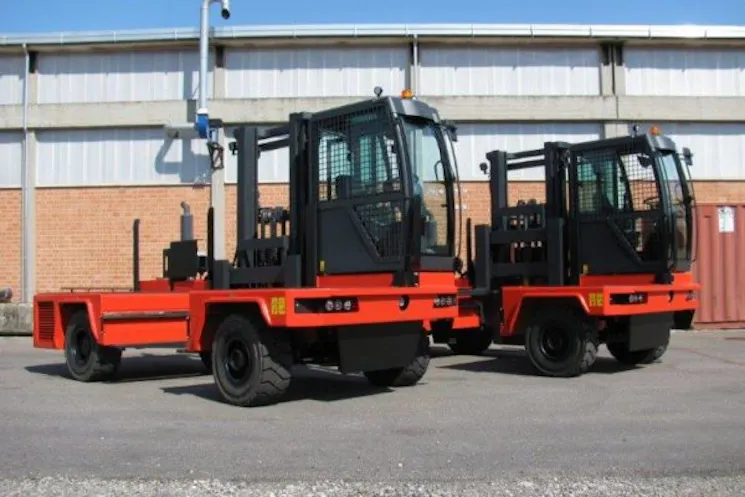

 Ferrari BP sideloaders SHD80-4
Specifications
Capacity (kg):
8000
Fork Length (mm):
1400/1600/1800/2000
Load Center (mm):
700/800
Tyres:
Pneumatic 32-12.1×15
Engine:
Perkins 1104D-44T, 75kW
LPG Version:
GM IMPCO 4.3L-L6, 115 HP
Transmission:
Hydrostatic Rexroth (electronic control)
Tilting:
Chassis
