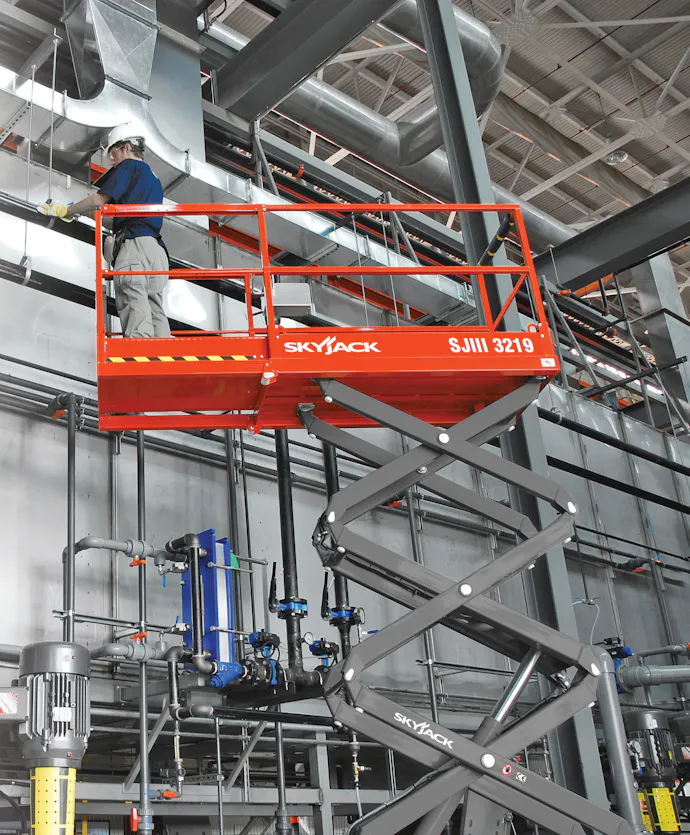

Skyjack 3219 Electric (NG)

5.64m / 1,476kg

Skyjack’s Compact DC Electric Scissor Lifts offer Skyjack’s easy to service, low maintenance design in a compact and versatile package. Equipped with variable speed front wheel hydraulic drive, and 90° steering, both models are capable of maneuvering in the smallest spaces. Featuring a 0.91 m roll out extension deck,
these models offer work heights up to 7.79 m. Both platforms boast an industry leading capacity 227 kg.

Enquire Now Call Now
FEATURES & BENEFITS
Specifications
Enquire Now
FEATURES & BENEFITS

STANDARD FEATURES

  • DC motor controller
  • Drivable at full height
  • Variable speed, front two wheel hydraulic drive
  • 90° Steering (zero inside turning radius)
  • Dual holding brakes
  • Proportional controls for drive & lift functions
  • 3’ (0.91 m) Roll out extension deck
  • 24V DC Power source
  • Low voltage battery protection
  • 30% Gradeability
  • Solid rubber, non-marking tires
  • Pothole protection system
  • 110V AC Outlet on platform with GFI
  • 28 mph Wind rating (12.5 m/s)
  • Tilt alarm with drive & lift cut-out
  • All motion audible alarm
  • Lanyard attachment points
  • Operator horn
  • Forklift pockets and tie down/lift lugs
  • Relay based control system
  • SKYCODEDTM color coded and numbered wiring system
  • Telematics ready
 Skyjack 3219 3219_swing_out
Specifications
Maximum Platform Height
5.64m
Overall width
0.81 m
Overall length
1.80 m
Gross weight
1,476 kg
Wind Rating
12.5m/s
Max Number of People
2
