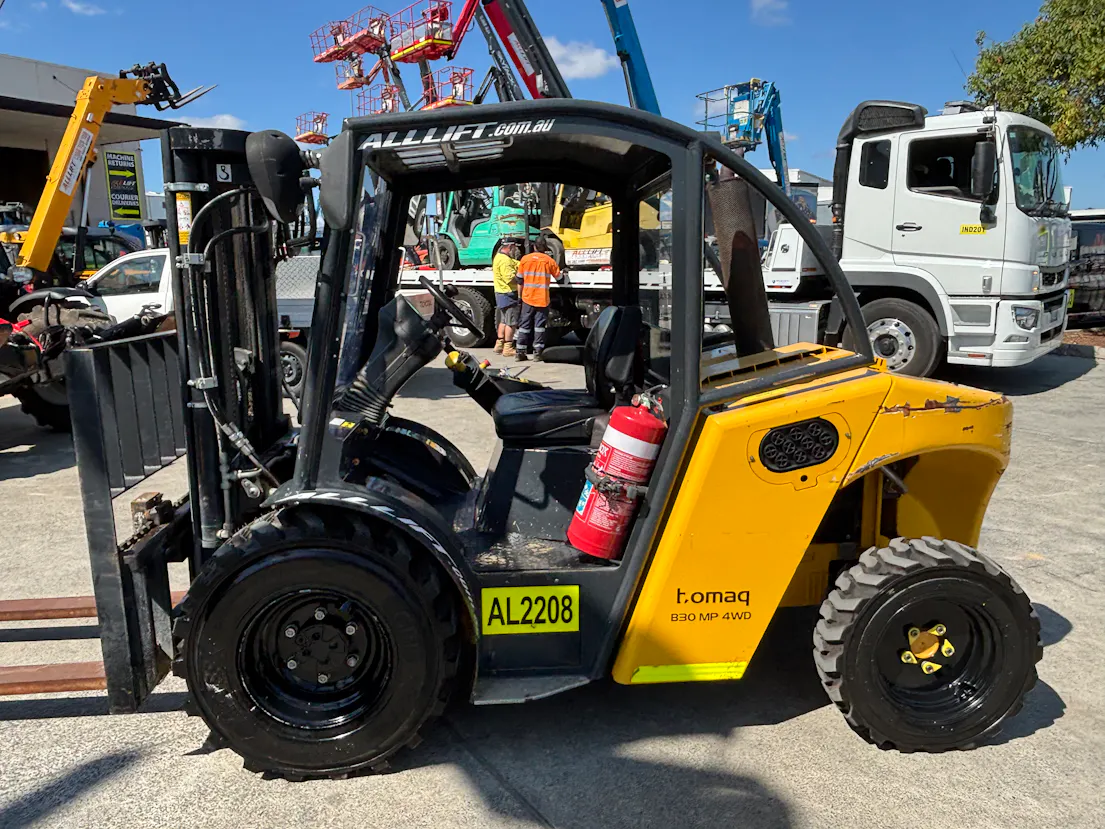

Used Bomaq Rough Terrain Forklift

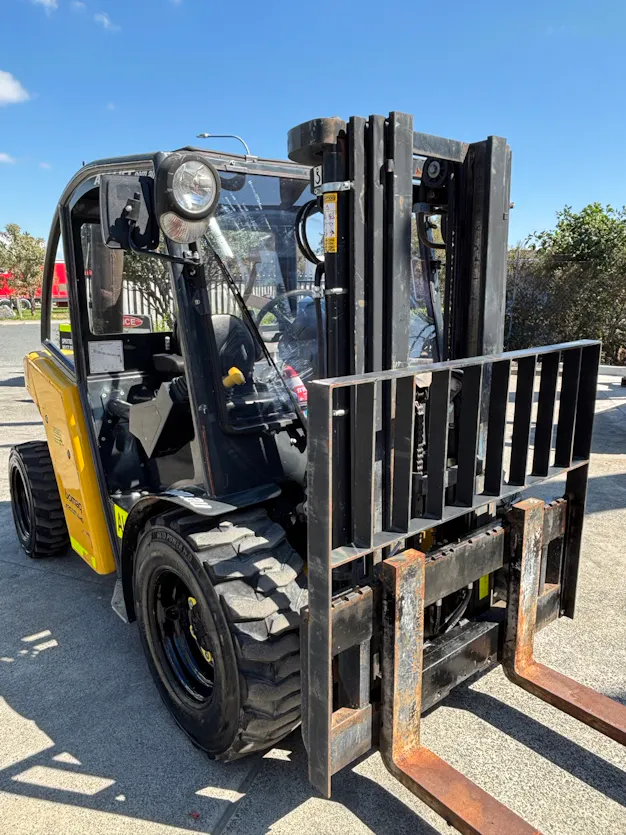

3300mm triplex with free lift Std
FEM IIIB Carriage with load back rest fitted Standard
Integrated Side-shift carriage with 1200mm long forks fitted Standard
4th valve with hydraulic line on carriage fitted Standard

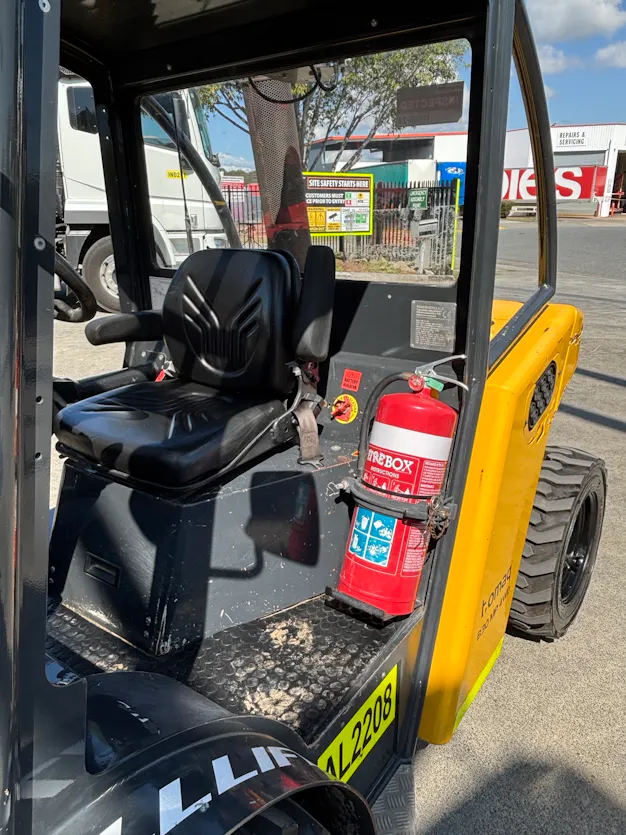

4.5kg fire extinguisher
Lockable isolator
New 1200mm fork tynes
Internal E-Stop
Rear LED Work Light
Perkins 404D-22 Tier3A
Engine Power (36,3Kw/48,7Hp)
Type/Model Hydrostatic 4WD Linde transmission
Front Axle ZF with Limited Slip Differential
Rear Axle BOMAQ Steering axle with Hydrostatic Drive motors
Permanent 4wd, 2 Speed transmission fitted Standard
Anti-cavitation valve on tilting control fitted Standard
Mast front tilting angle 10°
Mast back tilting angle 12°
Fuel tank capacity 70 l
Overall height 1990mm
Overall width 1500mm
Ground clearance 250mm

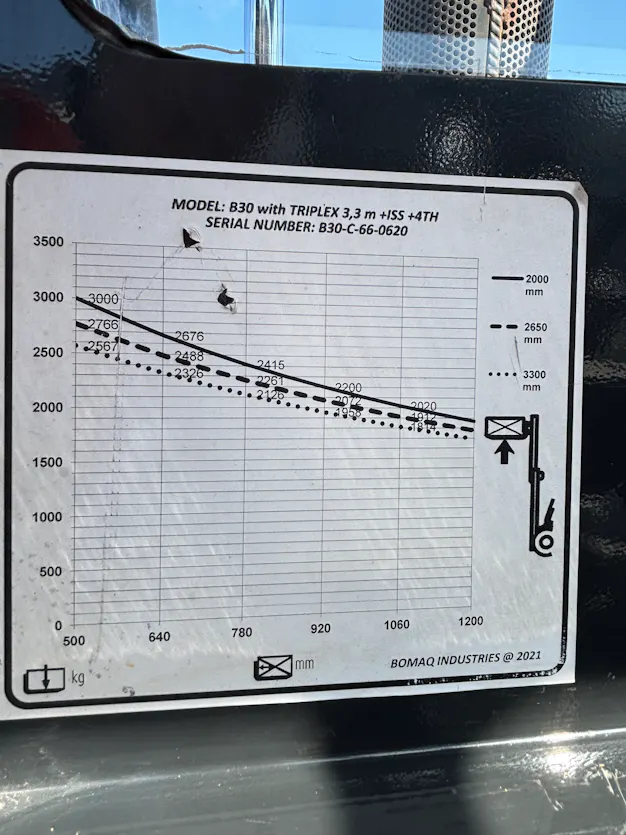

Maximum Load Capacity (load center 600mm) 2750kg
Capacity at maximum height (load center 600mm) 2390Kg
Maximum Lift height (Standard Triplex /Free lift mast) 3300mm
Turning Radius 2690mm
Max Speed 24 Km/h
Ex Brisbane
